Starter Motor

Powertrain Component Views

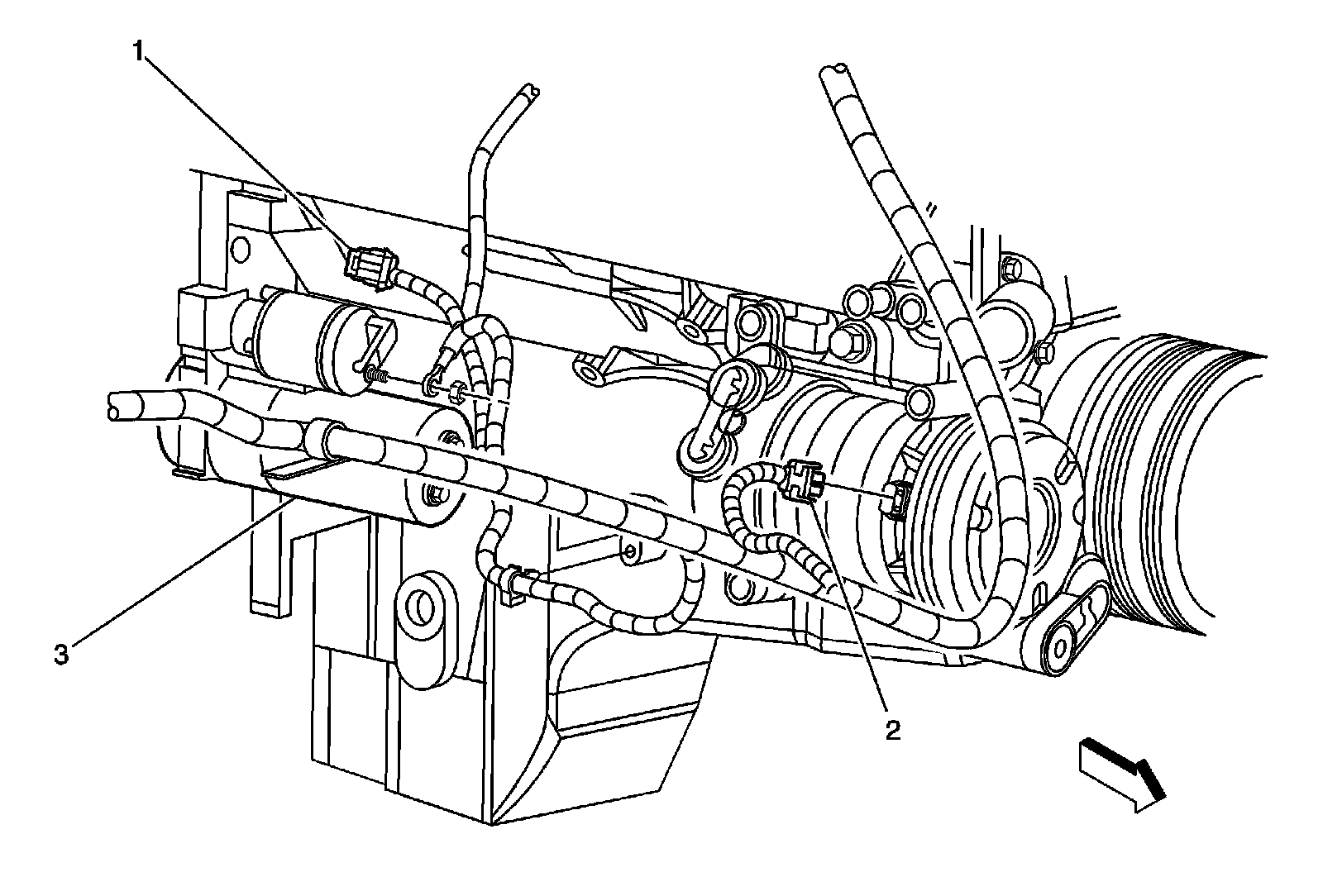

Right Side of the Engine (LC8, LMF, L20, or L96)





1 - Crankshaft Position (CKP) Sensor Connector

2 - A/C Compressor Clutch Connector (C60)

3 - Starter Motor
