Passenger or Cargo

Harness Routing Views

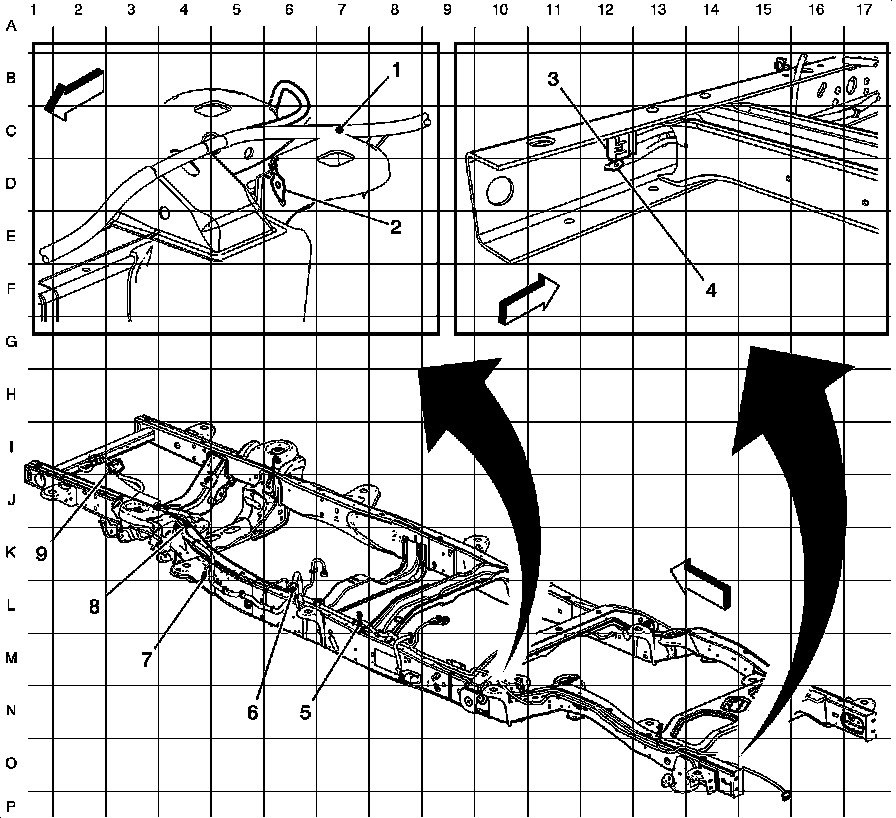

Chassis Harness Routing (LC8, LMF, LU3, L20, or L96)





1 - J402

2 - G400 (Passenger or Cargo)

3 - X405 (Cutaway)

4 - G400 (Cutaway)

5 - J301

6 - J315 (LMF)

7 - G300

8 - J315 (LU3, L20 or L96)

9 - X101
