Control Solenoid Valve Assembly X1 (MYD)
Control Solenoid Valve Assembly X1 (MYD)
Component Connector End Views

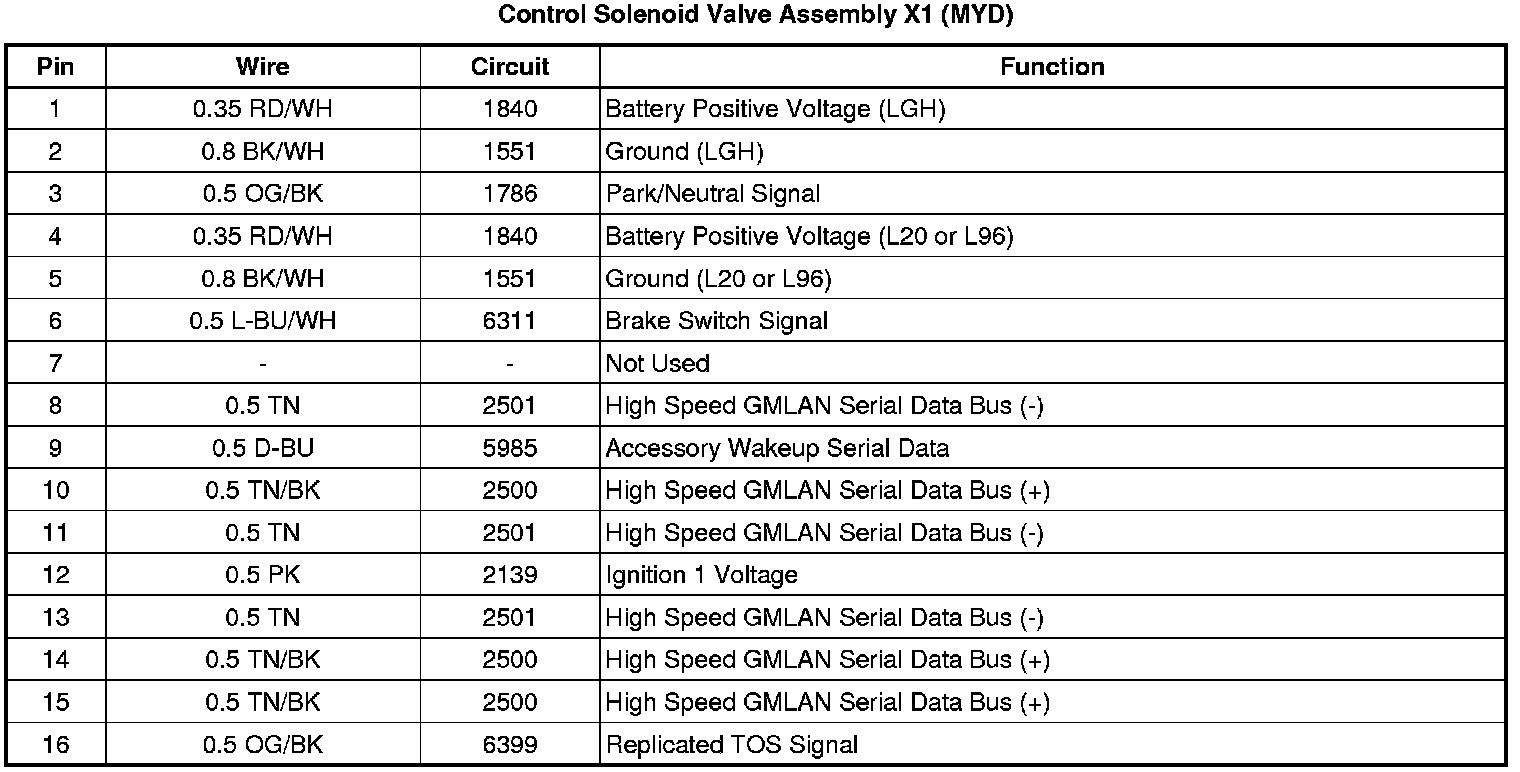

Control Solenoid Valve Assembly X1 (MYD)
