Right Side Door (E24)




Door Component Views

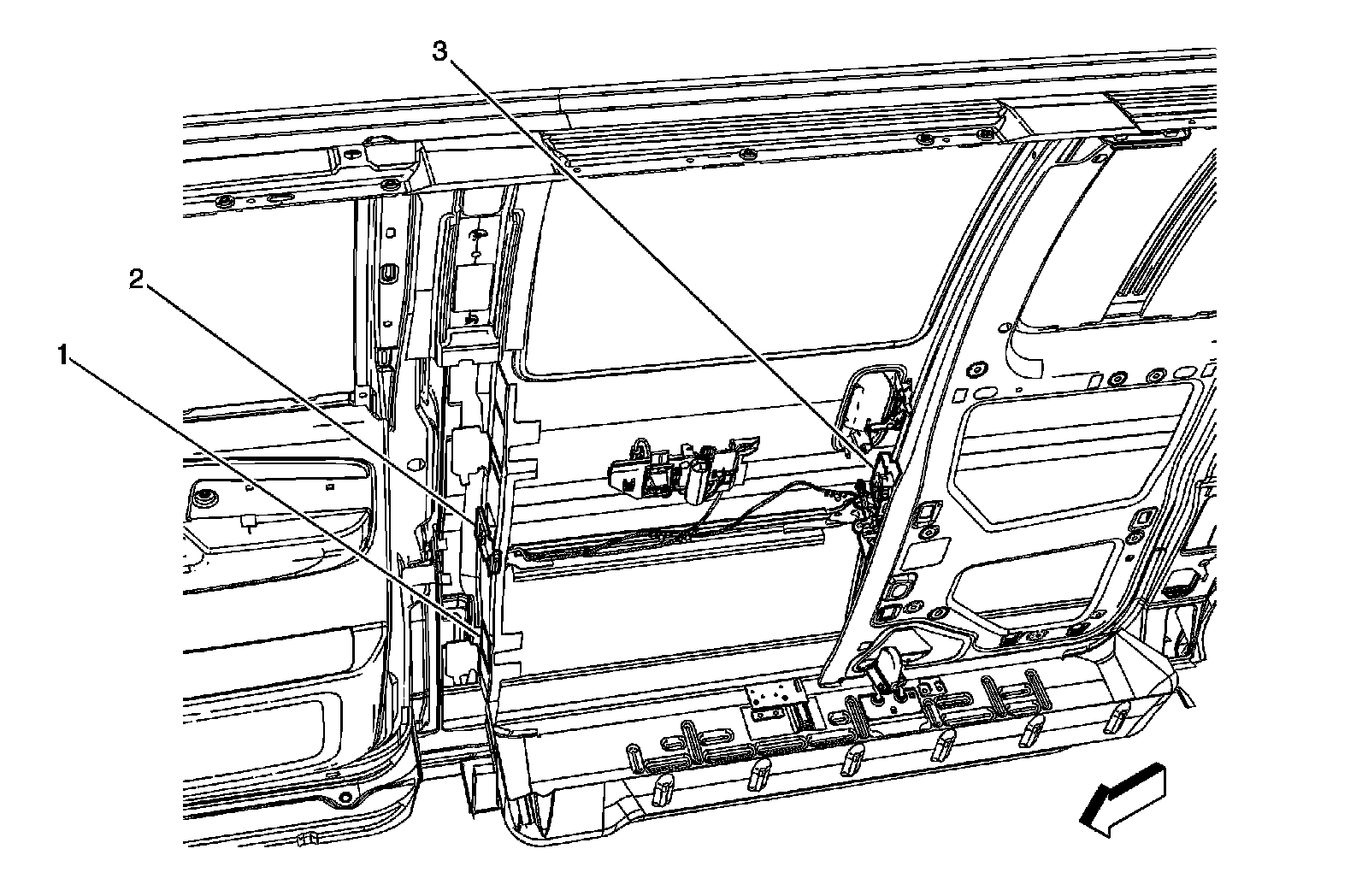

Right Side Door (E24)





1 - Door Jamb Switch- Right Rear

2 - Door Contact Plate- Right (AU3)

3 - Door Lock Actuator- Right Rear (AU3)
