Rear Doors (Passenger or Cargo)

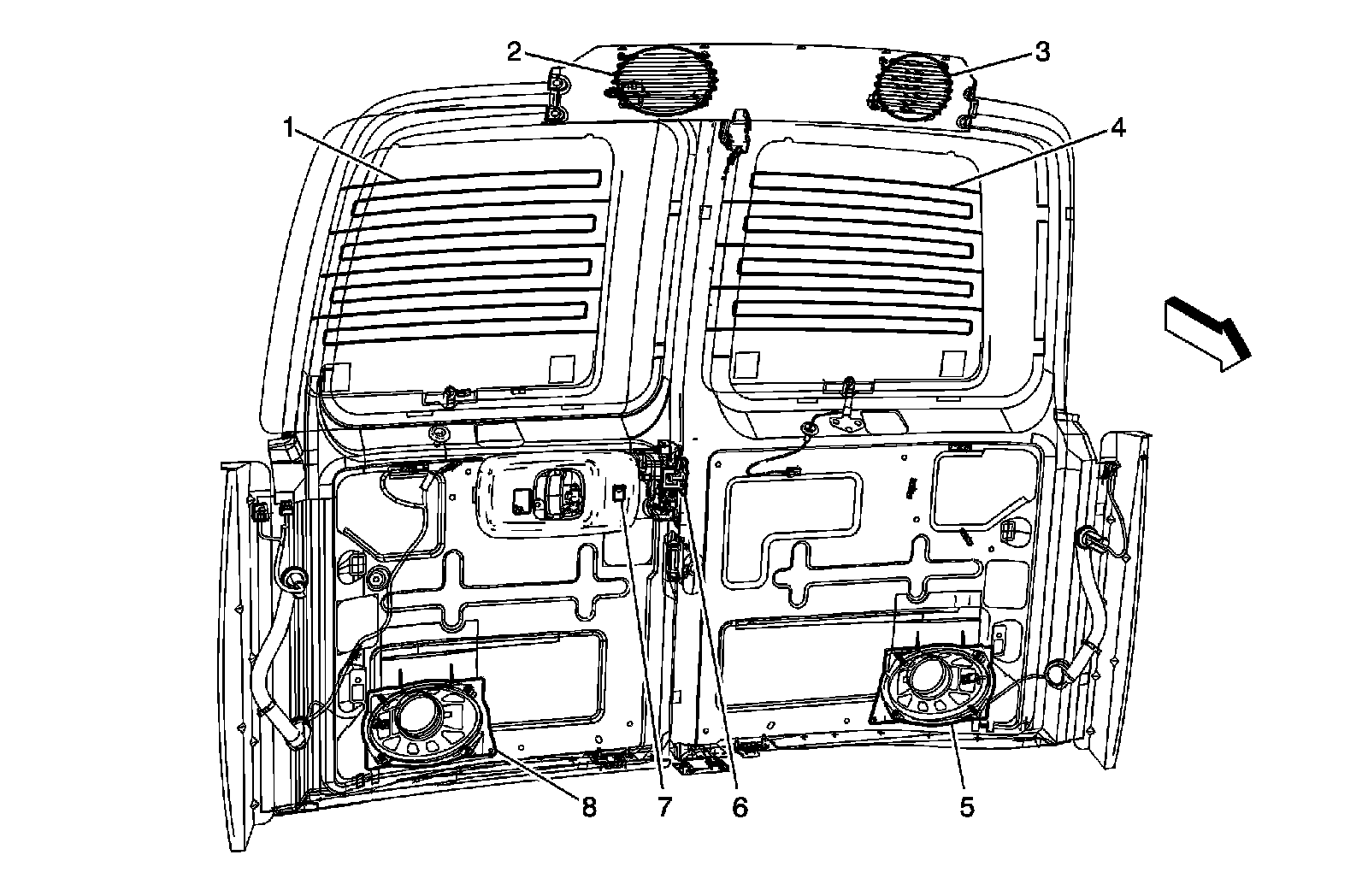

Door Component Views

Rear Doors (Passenger or Cargo)





1 - Rear Window Defogger Grid- Right (C49)

2 - Speaker- Right Rear

3 - Speaker- Left Rear

4 - Rear Window Defogger Grid- Left (C49)

5 - Speaker- Left Cargo Door (US8 or US9)

6 - Door Latch- Cargo

7 - Door Lock Switch- Cargo (AU3)

8 - Speaker- Right Cargo Door (US8 or US9)
