Left Side Door (E26)




Door Component Views

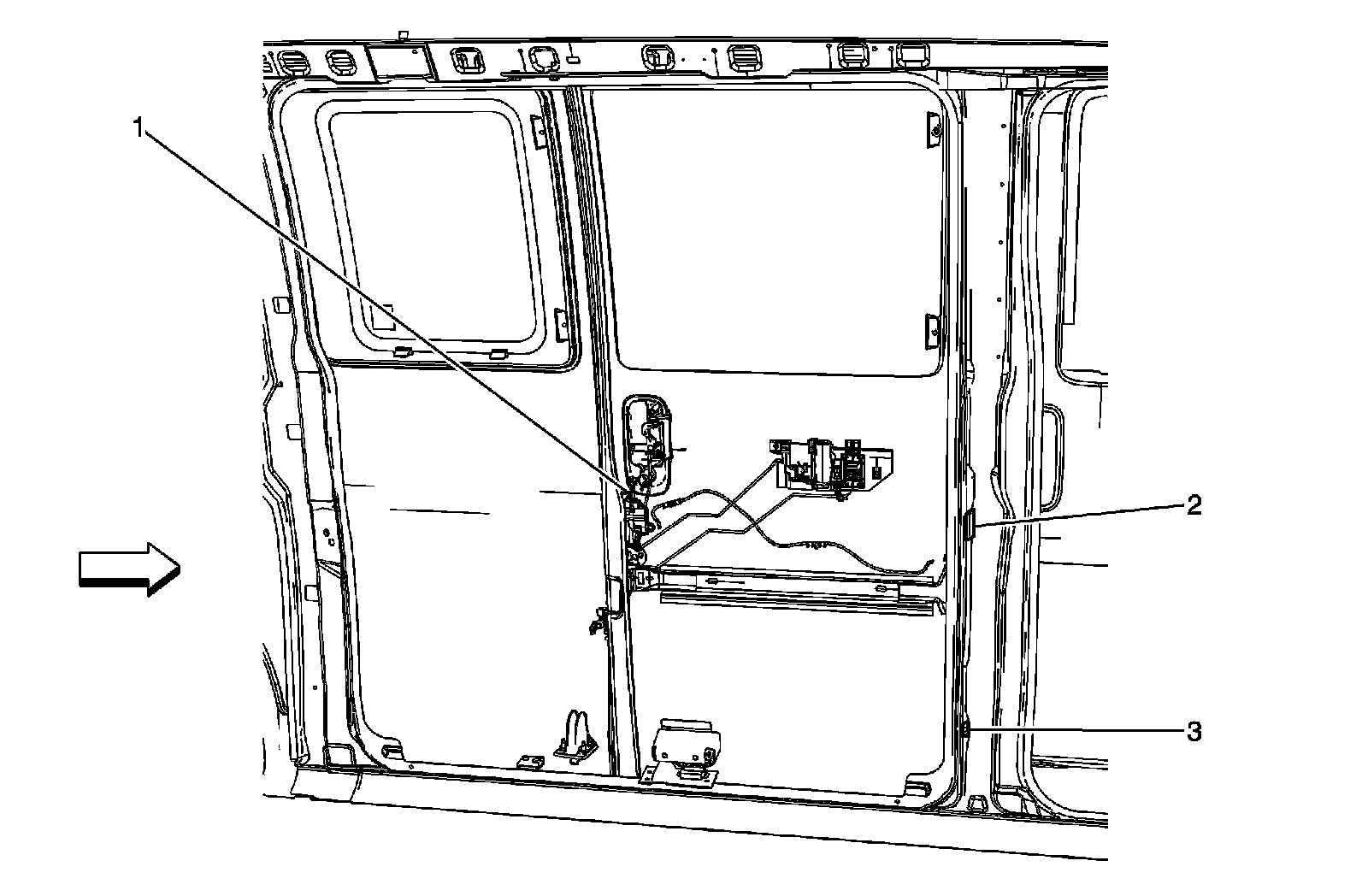

Left Side Door (E26)





1 - Door Lock Actuator- Left Rear (AU3)

2 - Door Contact Plate- Left (AU3)

3 - Door Jamb Switch- Left Rear
