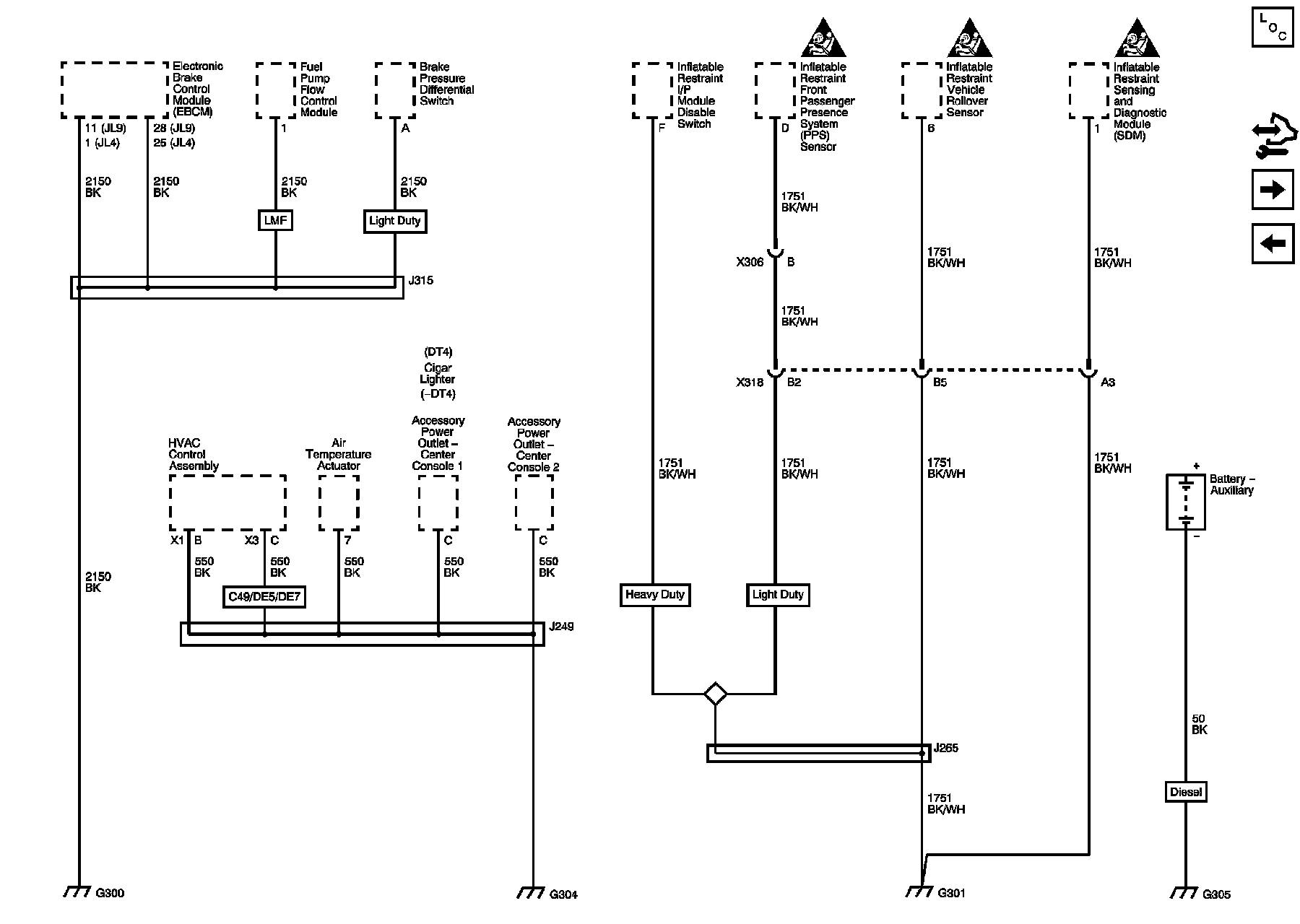

G300, G301, G304, and G305




Ground Distribution Schematics

G300, G301, G304, and G305





Master Electrical Component List
Control Module References
G302 (1 of 2)
G109 (LGH) and G110 (LGH)
