Home >> Chevrolet >> 2012 >> Express 2500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6L45/6L50/6L80/6L90 - Automatic Transmission >> 15. 2-6 Clutch Overhaul

15. 2-6 Clutch Overhaul




2-6 Clutch Overhaul (Diesel)

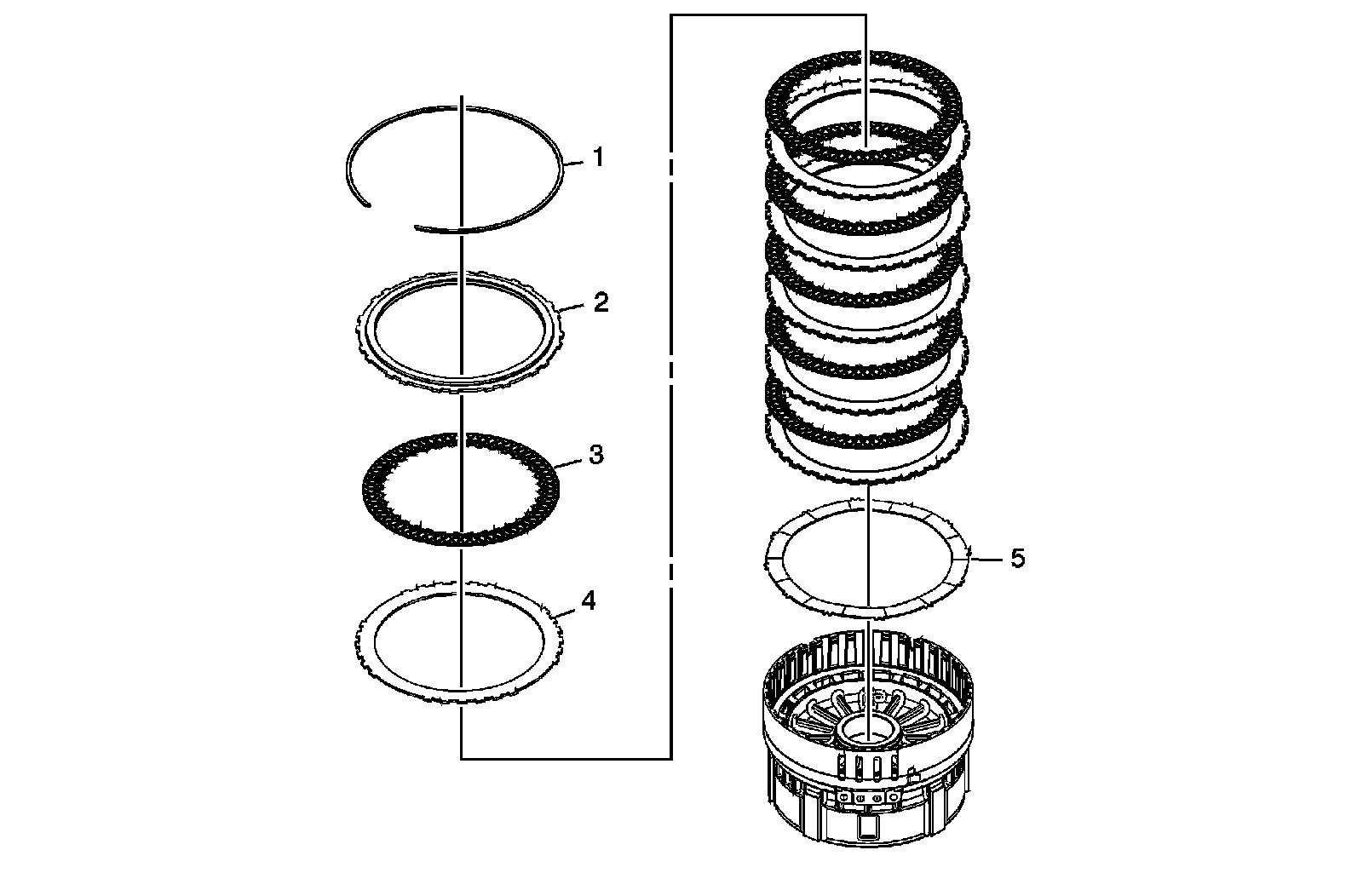

2-6 Clutch Plates Removal










2-6 Clutch Piston Replacement

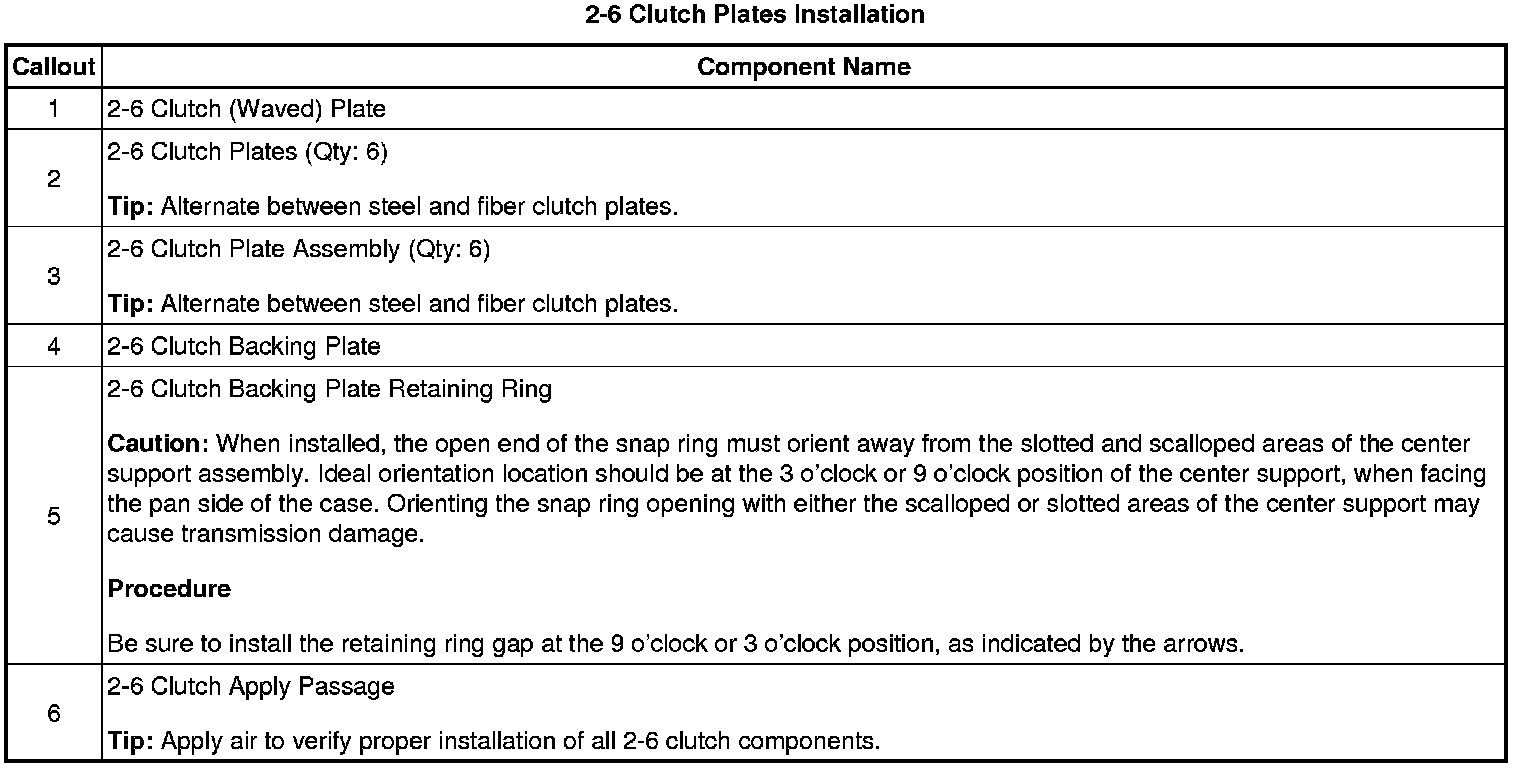

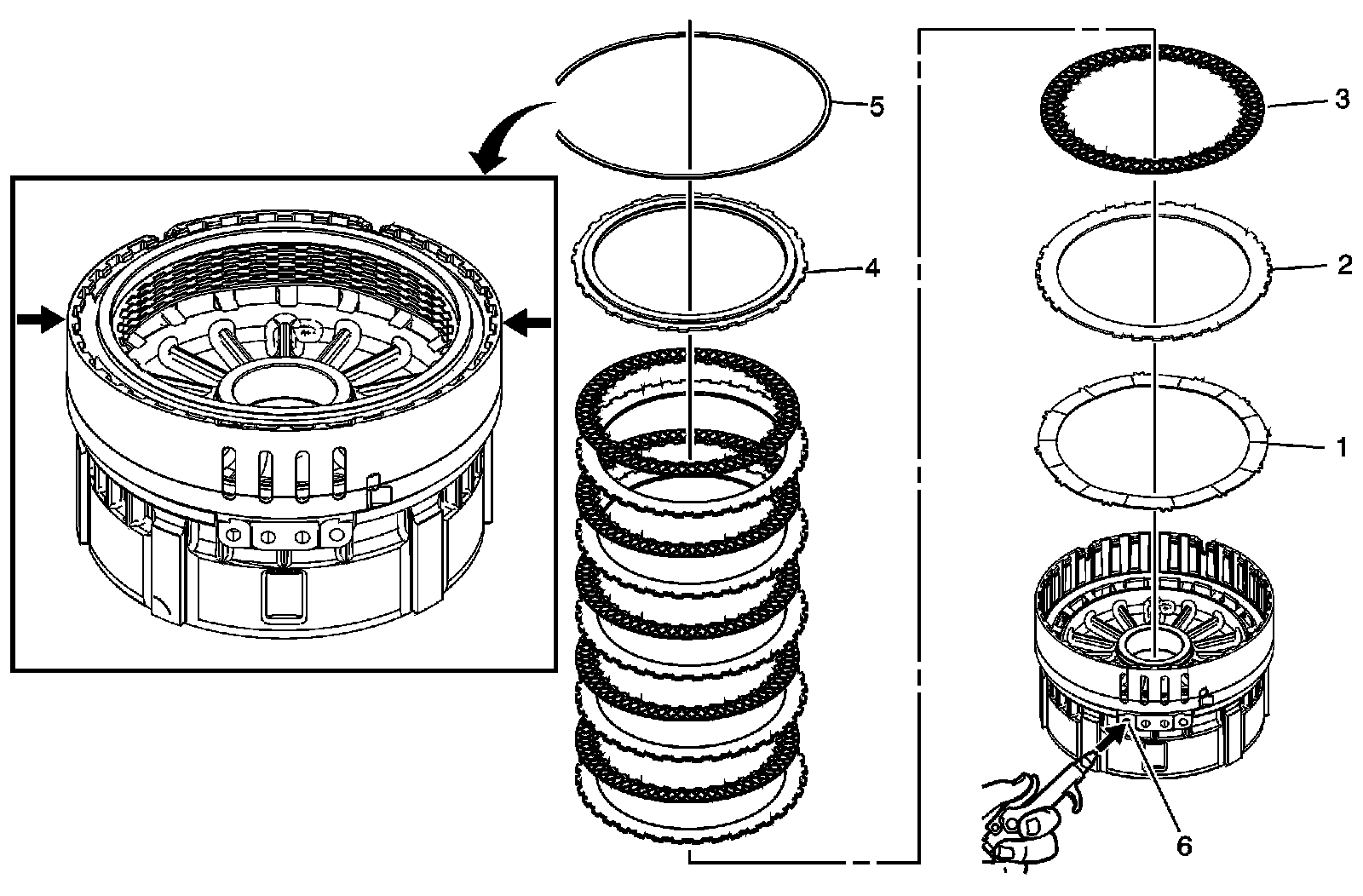

2-6 Clutch Plates Installation
