9. Exhaust Pipe Removal - Left Side

Exhaust Pipe Removal - Left Side

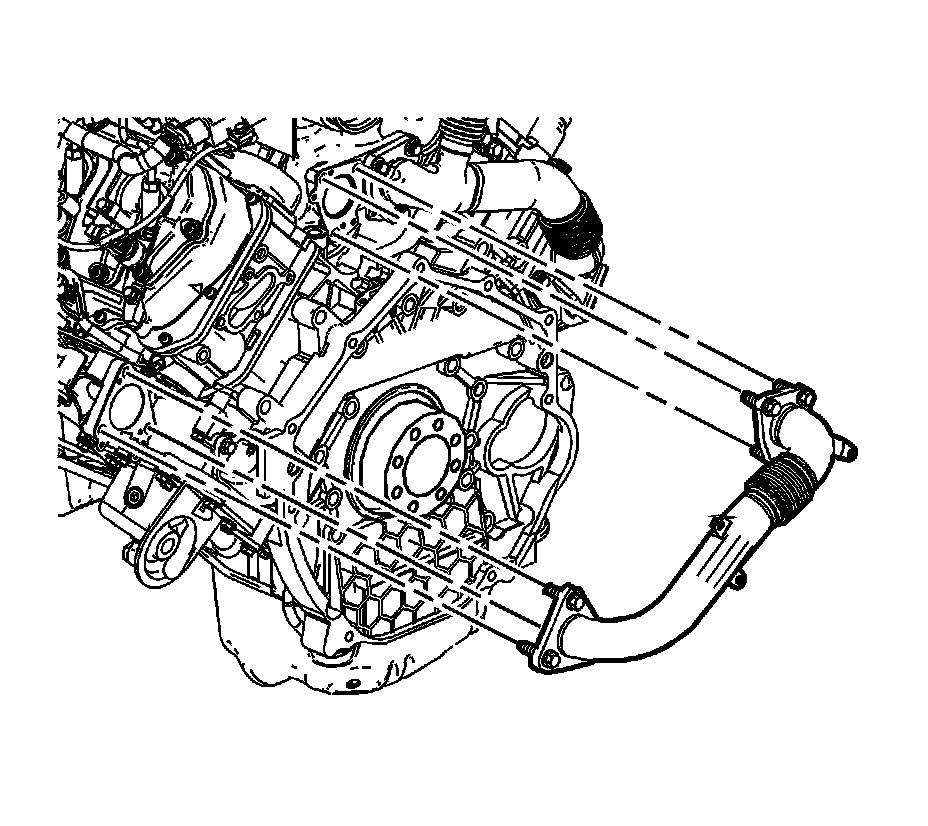

1. Remove the left exhaust pipe heat shield bolts.

2. Remove the left exhaust pipe heat shield.





3. Remove the exhaust pipe bolts in the proper sequence.





4. Remove the exhaust pipe and gaskets.
