89. Oil Pump Suction Pipe and Screen Assembly Installation

Oil Pump Suction Pipe and Screen Assembly Installation

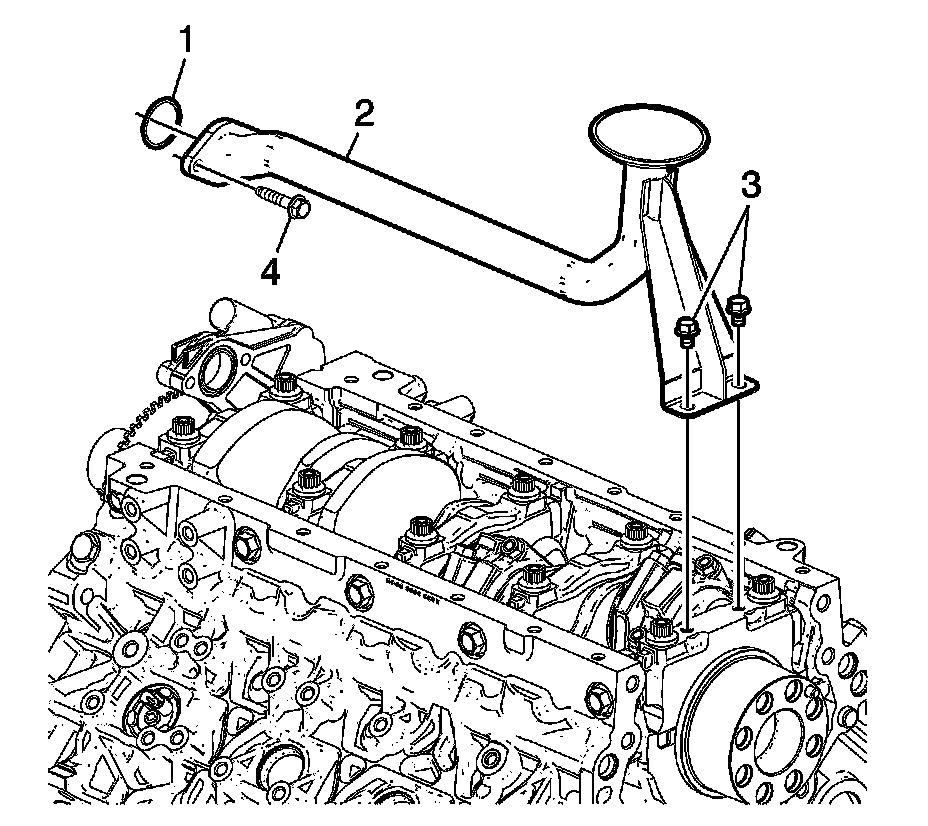

1. Install the NEW oil pump pipe and screen seal (1).

2. Install the oil pump pipe and screen (2).

Caution:
Refer to Fastener Caution Fastener Caution.

3. Install the oil pump pipe and screen assembly bolts (3) and (4) and tighten to 25 Nm (18 lb ft).
