7. Exhaust Gas Recirculation Manifold Cooling Feed Pipe Removal

Exhaust Gas Recirculation Manifold Cooling Feed Pipe Removal

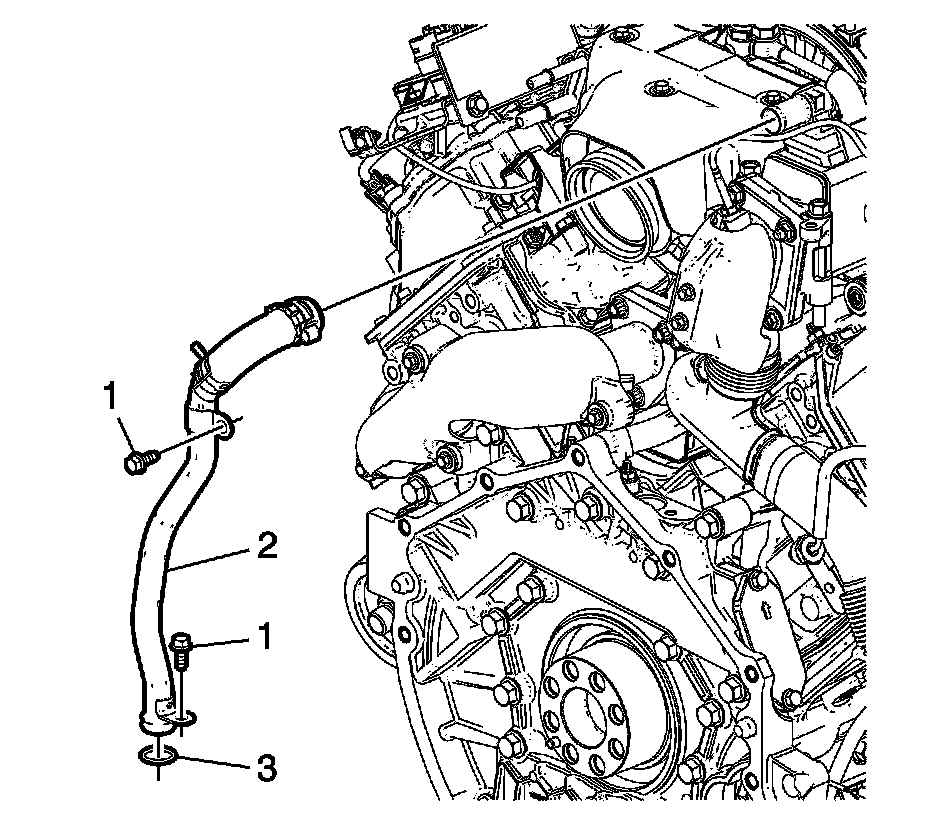

1. Remove the exhaust gas recirculation (EGR) manifold cooling feed pipe bolts (1).

2. Remove the EGR manifold cooling feed pipe (2).

3. Remove the EGR manifold cooling feed pipe O-ring seal (3).
