67. Valve Rocker Arm Cover Cleaning and Inspection - Upper

Valve Rocker Arm Cover Cleaning and Inspection - Upper

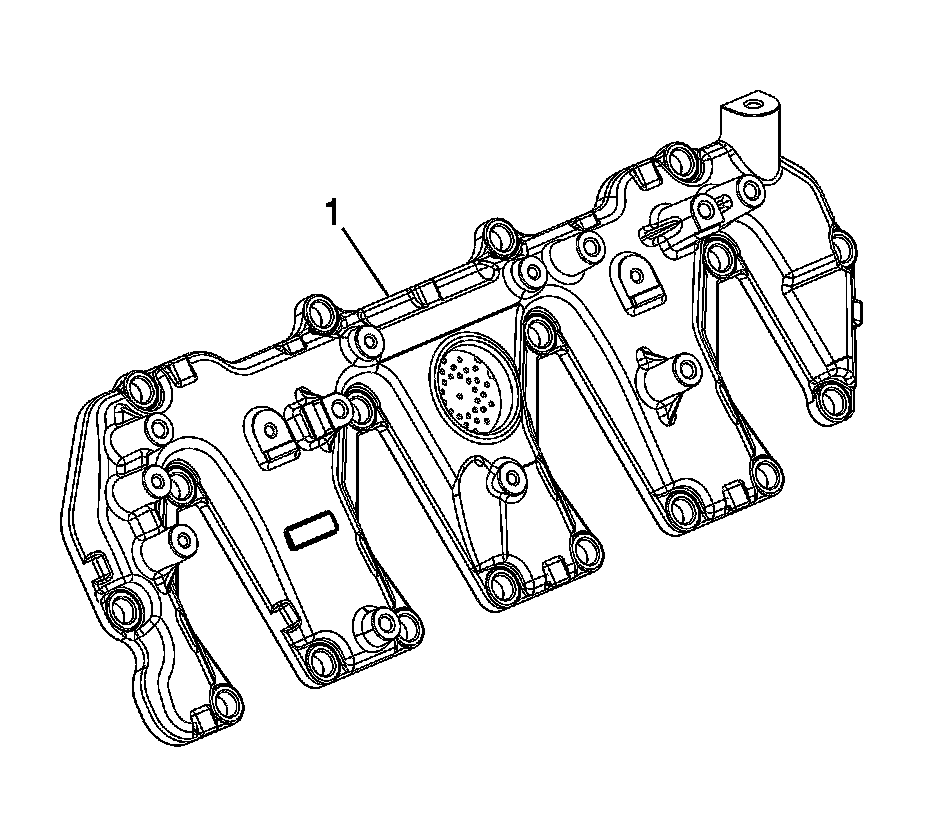

1. Clean the upper valve rocker arm cover (1). Remove any sludge or other deposits.

2. Clean the upper valve rocker arm cover mating surface.

3. Inspect the upper valve rocker arm cover for cracks or other damage.

4. Inspect the upper valve rocker arm cover mating surfaces for damage.

5. Replace the upper valve rocker arm cover if any damage is found.

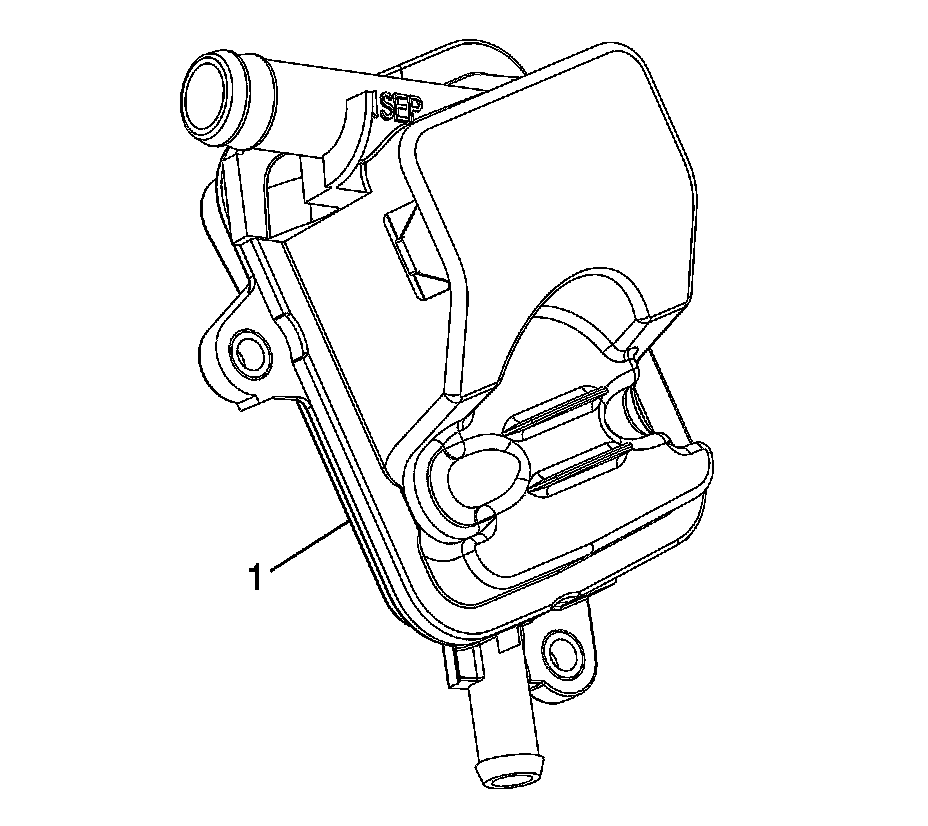

6. Inspect the PCV oil separator (1) for damage.

7. Inspect the PCV oil separator O-ring seal for damage.

8. Replace the PCV oil separator if damage is found.
