51. Crankshaft Balancer Cleaning and Inspection




Crankshaft Balancer Cleaning and Inspection





1. Clean the crankshaft balancer.

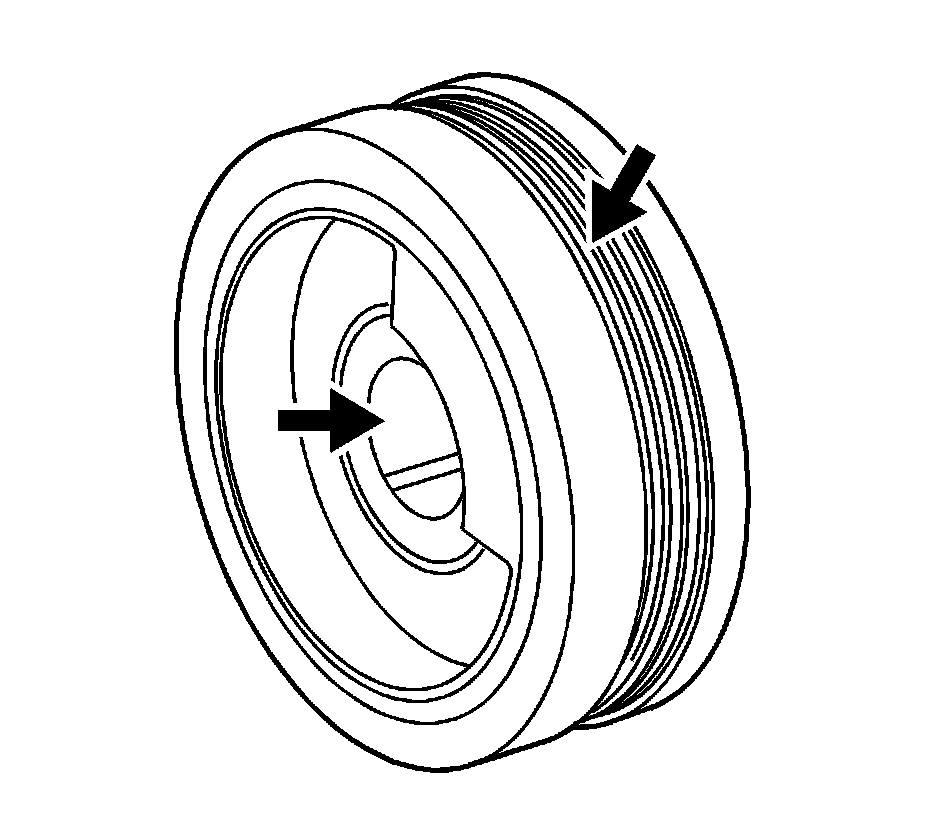

2. Inspect the crankshaft balancer for damage to belt drive surface and to crankshaft balancer hub.

3. Inspect the balancer hub groove for damage or wear.

4. Replace the crankshaft balancer if any concerns exist.
