43. Piston Oil Nozzle Removal




Piston Oil Nozzle Removal

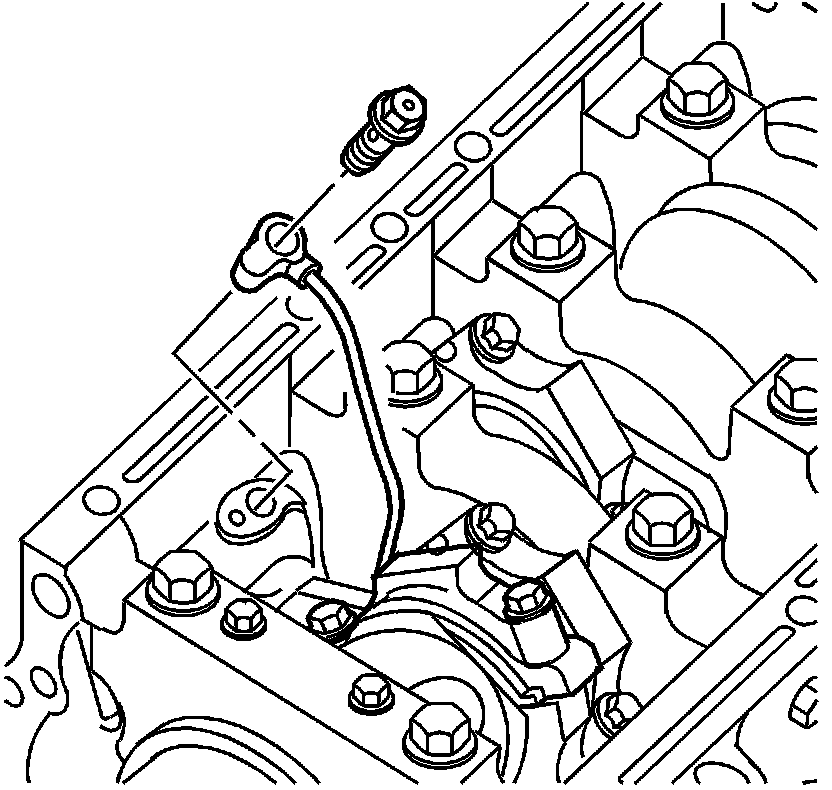

1. Rotate crankshaft as necessary to obtain access to piston oil cooling nozzles.

2. Remove the piston oil cooling nozzle eye bolt.

3. Remove the piston oil cooling nozzle.
