41. Engine Front Cover Removal

Engine Front Cover Removal

Special Tools

J 37228 - Seal Cutter

For equivalent regional tools, refer to Special Tools Special Tools.

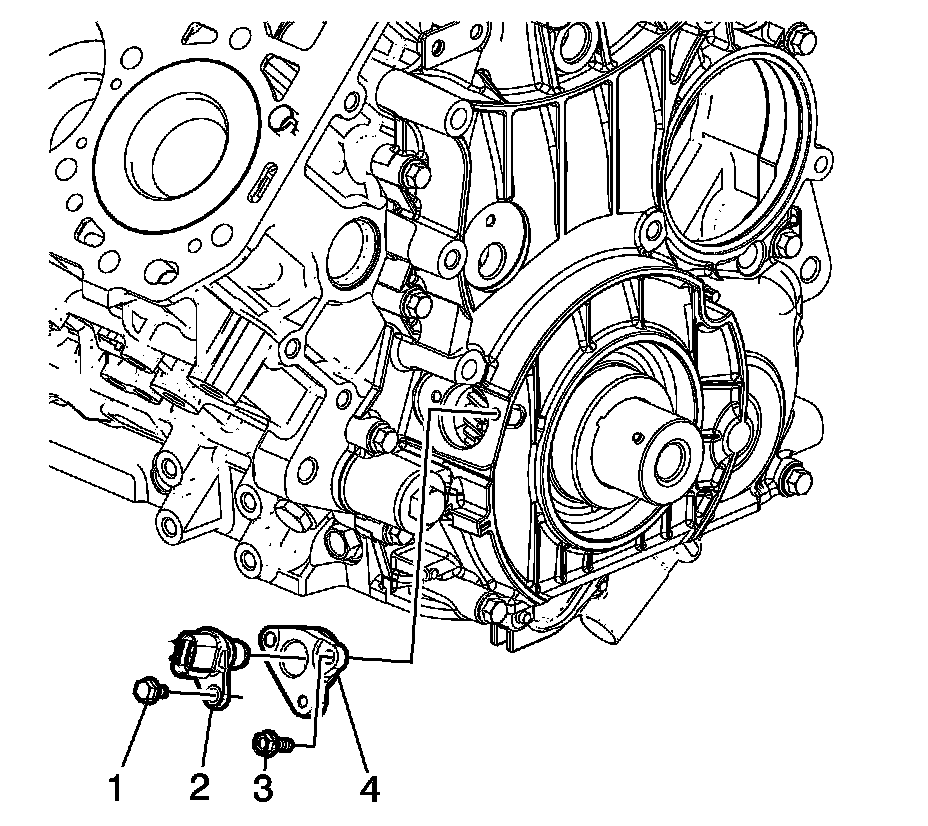

1. Remove the crankshaft position sensor bolt (1).

2. Remove the crankshaft position sensor (2).

3. Remove the crankshaft position sensor spacer bolts (3).

4. Remove the crankshaft position sensor spacer (4).

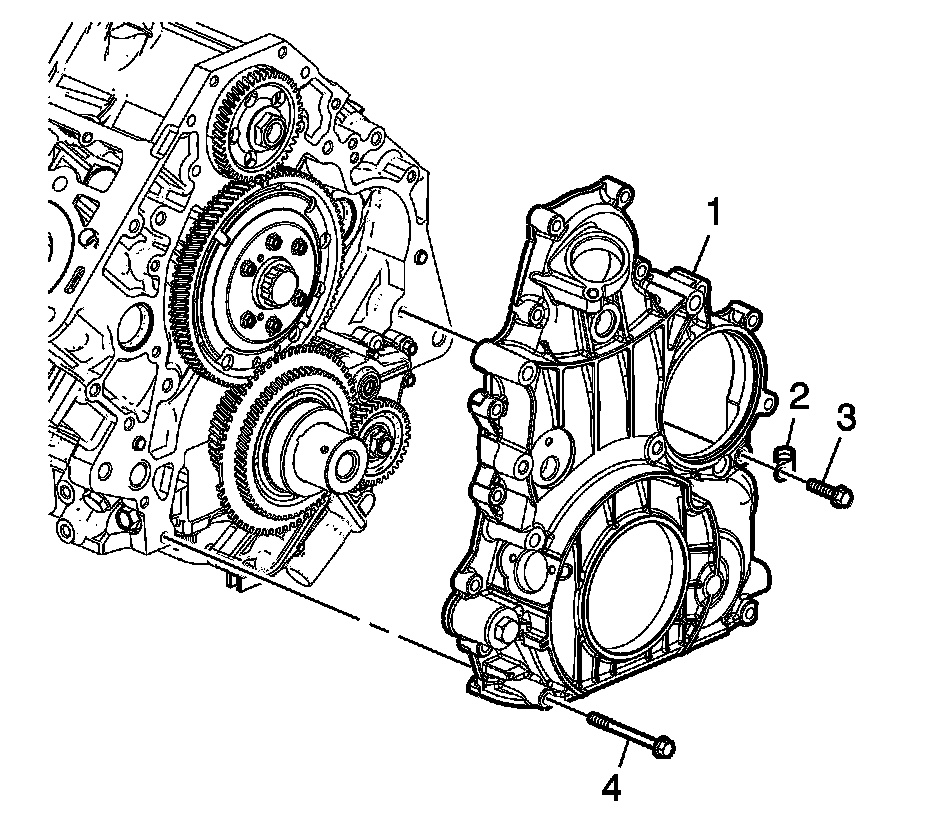

5. Remove the engine front cover bolts (3) and (4).

6. Remove the engine wiring harness clip (2).

7. Separate the engine front cover from the cylinder block using J 37228 - cutter.

8. Remove the engine front cover (1).
