4. Engine Flywheel Removal (Automatic Transmission)

Engine Flywheel Removal (Automatic Transmission)

Special Tools

J 44643 - Flywheel Hold Tool

For equivalent regional tools, refer to Special Tools Special Tools.

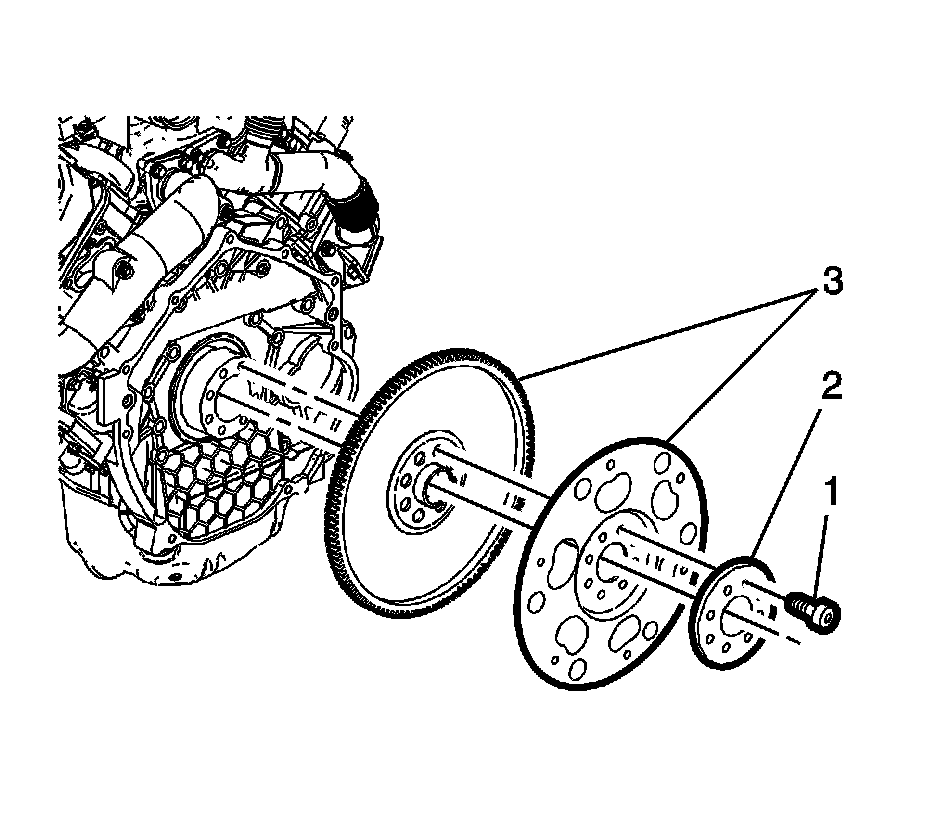

1. Remove the flywheel mounting bolts and discard.

2. Remove the flywheel washer.

3. Remove the J 44643 - tool.

4. Remove the flywheel assembly.
