27. Valve Rocker Arm Cover Removal - Lower Left Side

Valve Rocker Arm Cover Removal - Lower Left Side

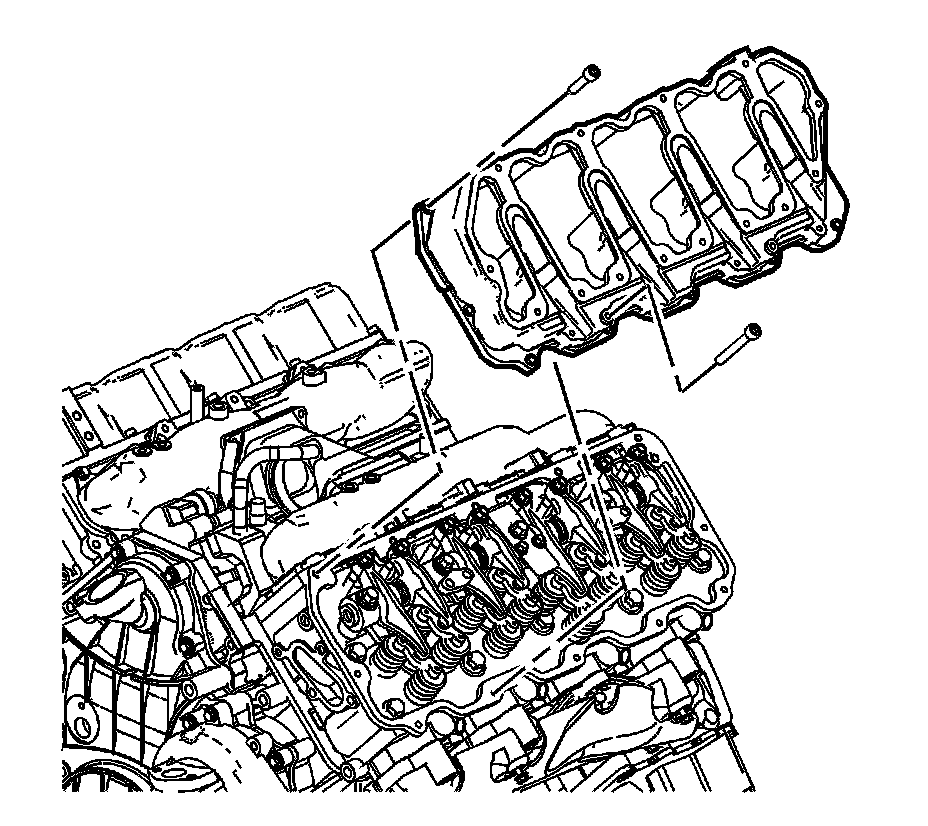

1. Remove the left lower valve rocker arm cover bolts.

2. Remove the left lower valve rocker arm cover.

3. Remove and discard the valve rocker arm cover gasket, valve rocker arm cover grommets and valve rocker arm cover bolts if they are serviced with the grommet.
