26. Valve Rocker Arm Cover Removal - Upper Right Side

Valve Rocker Arm Cover Removal - Upper Right Side

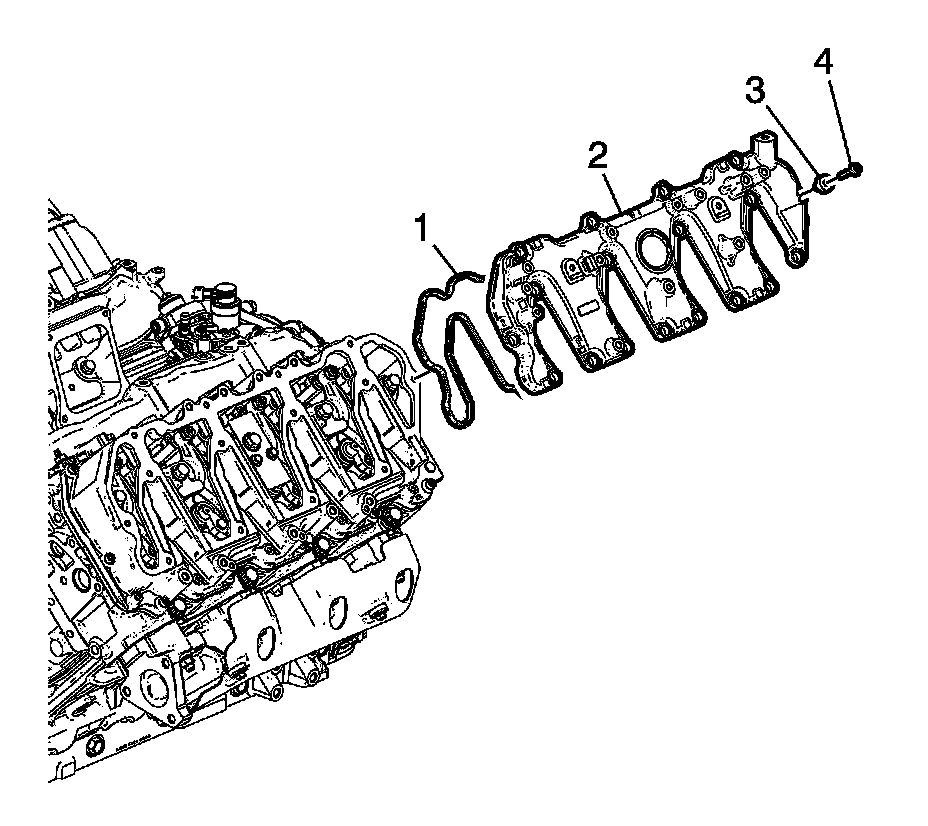

1. Remove the right upper valve rocker arm cover bolts (4).

2. Remove the right upper valve rocker arm cover (2).

3. Remove and discard the valve rocker arm cover gasket (1) and valve rocker arm cover grommets (3).
