22. Intake Manifold Removal

Intake Manifold Removal

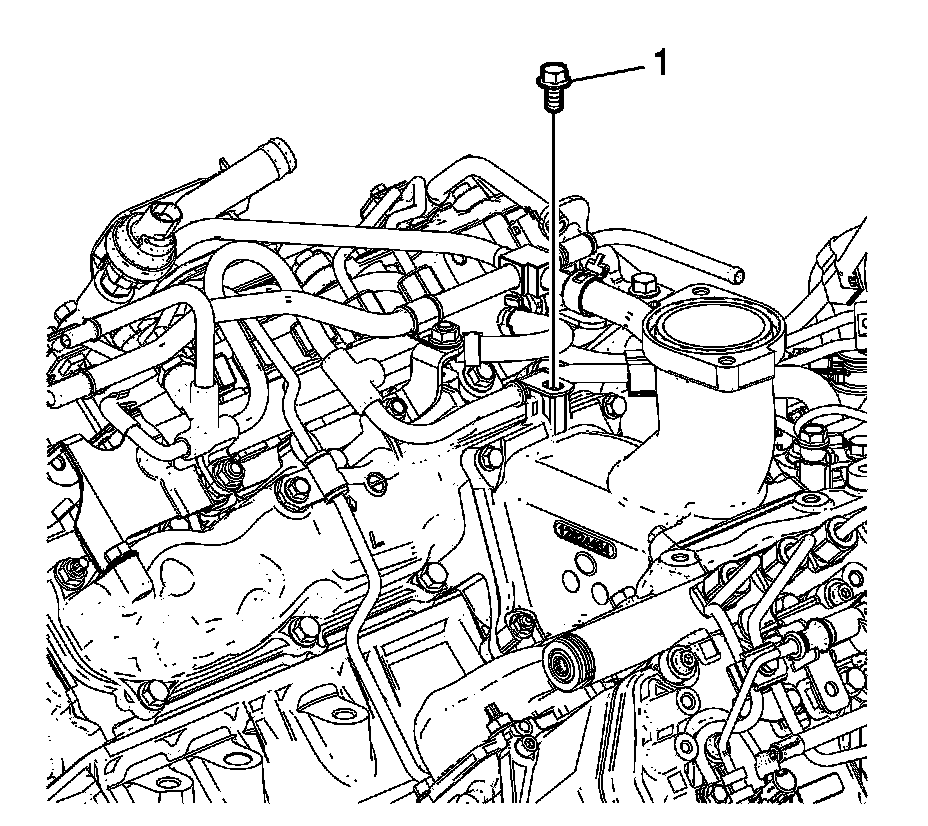

1. Remove the fuel return pipe bolt (1) from the top of the intake manifold.

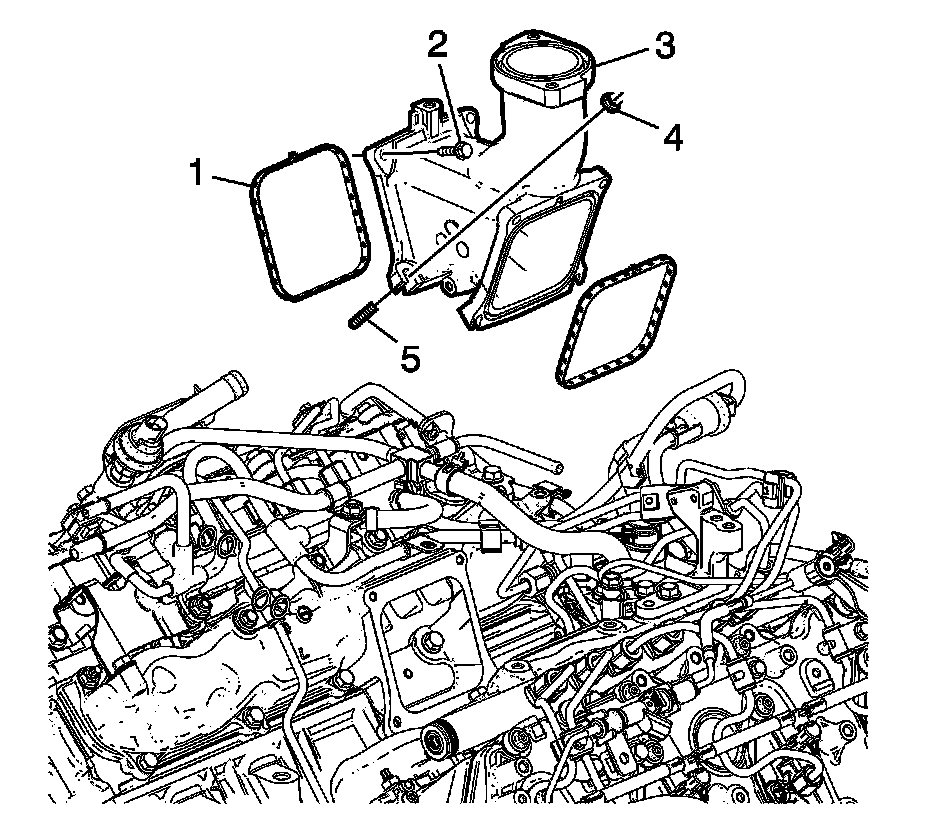

2. Remove the intake manifold bolts (2) and nuts (4).

3. Remove the intake manifold (3).

4. Remove the intake manifold gaskets (1).

5. Remove the intake manifold studs (5).
