16. Power Steering Pump Mounting Bracket Removal




Power Steering Pump Mounting Bracket Removal

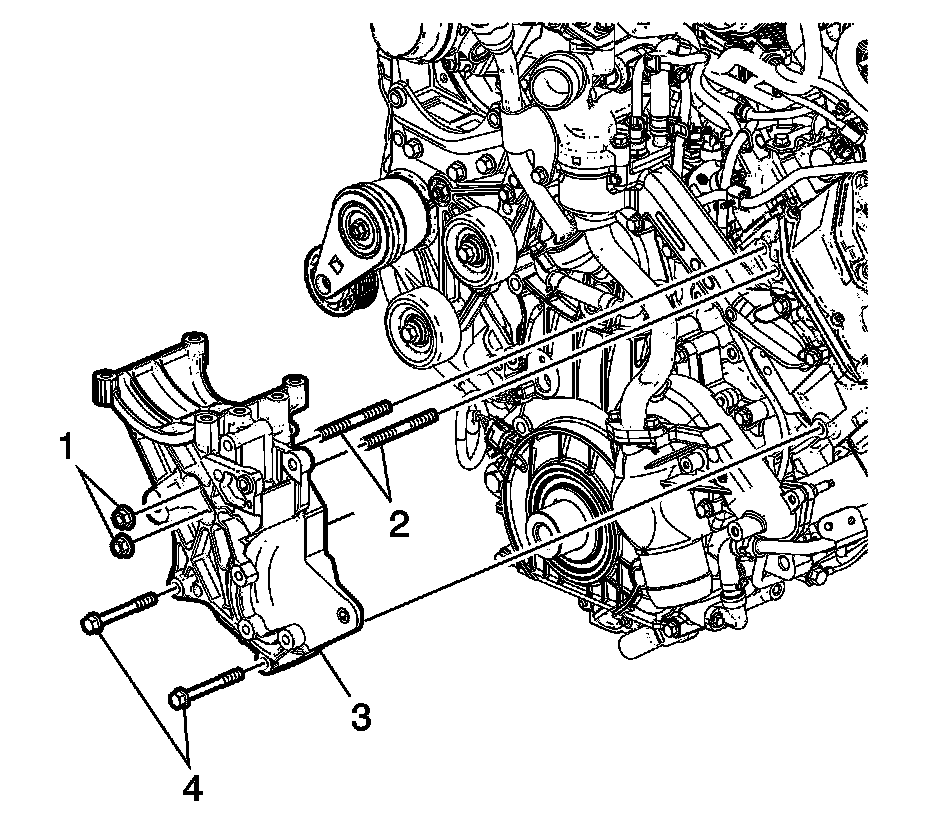

1. Remove the power steering pump mounting bracket bolts (4) and nuts (1).

2. Remove the power steering pump mounting bracket (3).

3. Remove the power steering pump mounting bracket studs (2).
