15. Fan Pulley Removal

Fan Pulley Removal

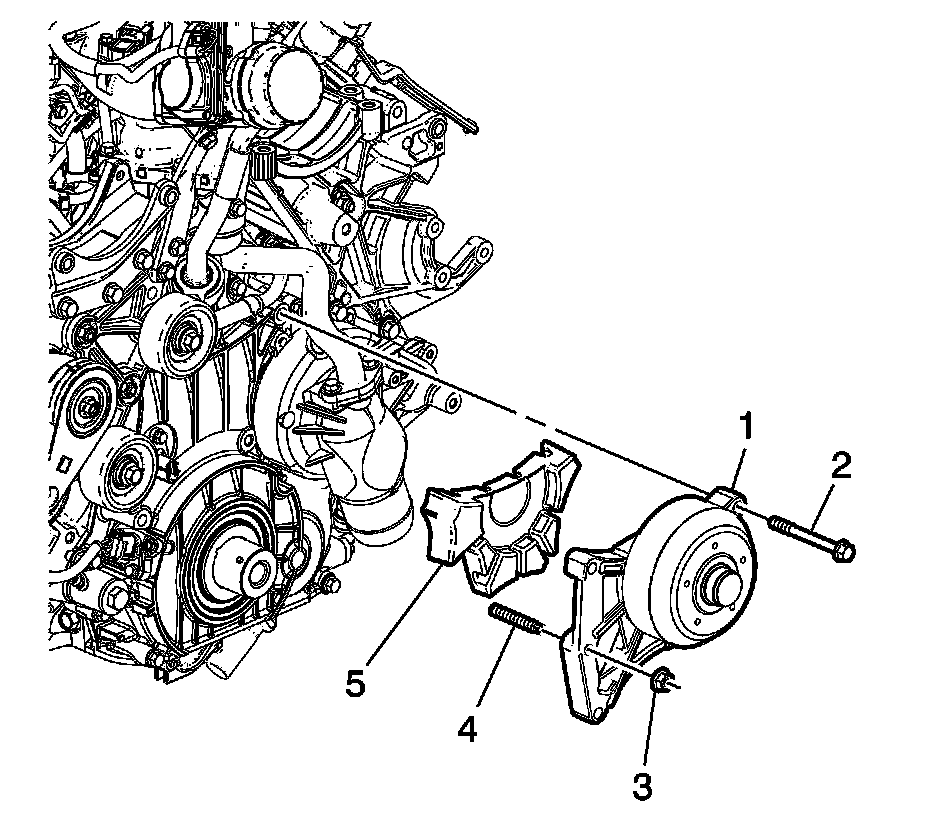

1. Disconnect the camshaft position sensor connector.





2. Remove the cooling fan pulley bolts (2) and nuts (3).

3. Remove the cooling fan pulley (1) and the cooling fan pulley spacer (5).

4. Remove the cooling fan pulley studs (4).

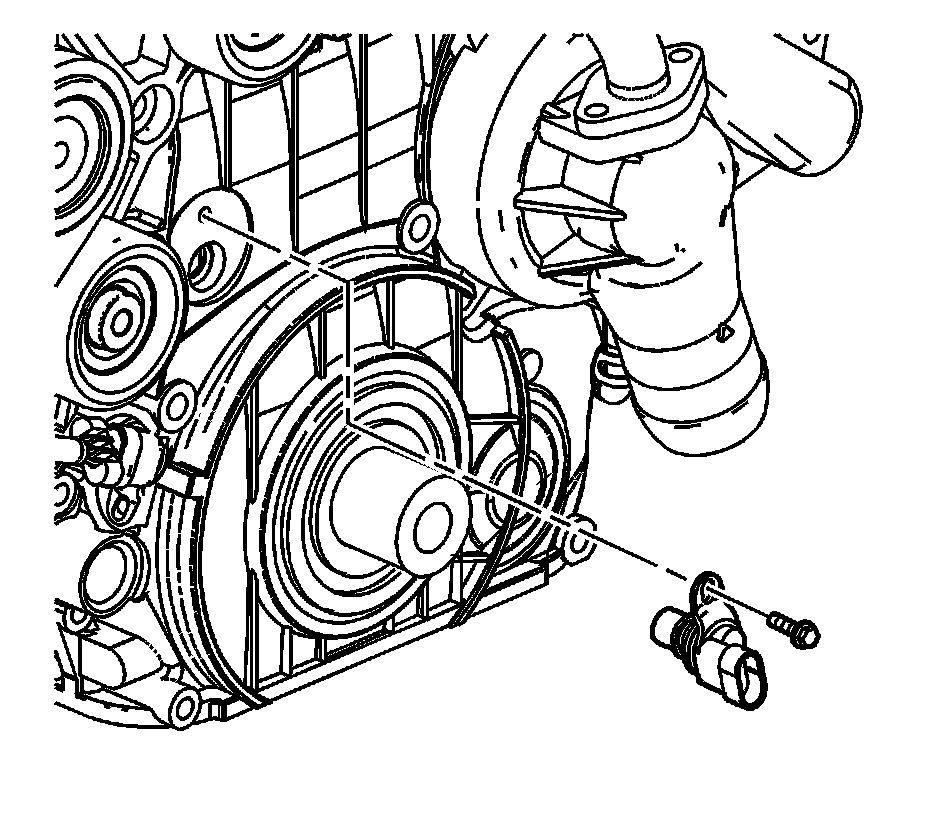

5. Remove the camshaft position sensor retaining bolt.

6. Remove the camshaft position sensor.
