130. Starter Installation
Starter Installation

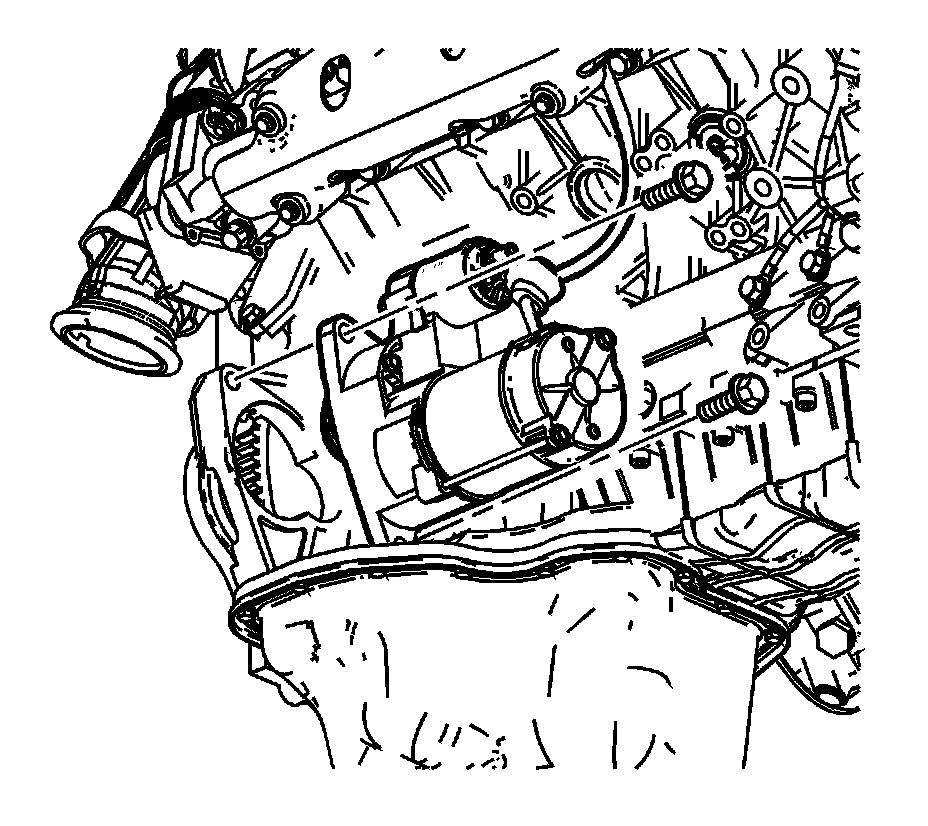

1. Install the starter motor to the flywheel housing.
Caution:
Refer to Fastener Caution Fastener Caution.
2. Install the starter motor bolts and tighten to 78 Nm (58 lb ft).
Starter Installation
1. Install the starter motor to the flywheel housing.
Caution:
Refer to Fastener Caution Fastener Caution.
2. Install the starter motor bolts and tighten to 78 Nm (58 lb ft).
