13. Flywheel Housing Removal

Flywheel Housing Removal

Special Tools

J 37228 - Seal Cutter

For equivalent regional tools, refer to Special Tools Special Tools.

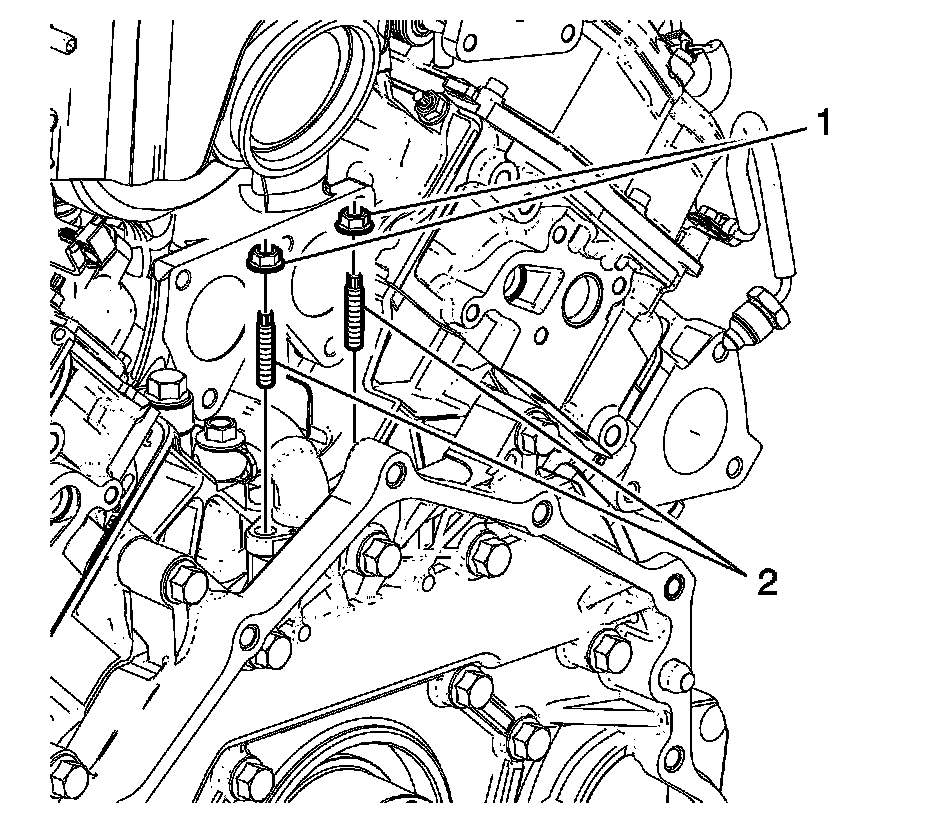

1. Remove the turbocharger oil return pipe nuts (1) from the top of the flywheel housing.

2. Remove the turbocharger oil return pipe studs (2).

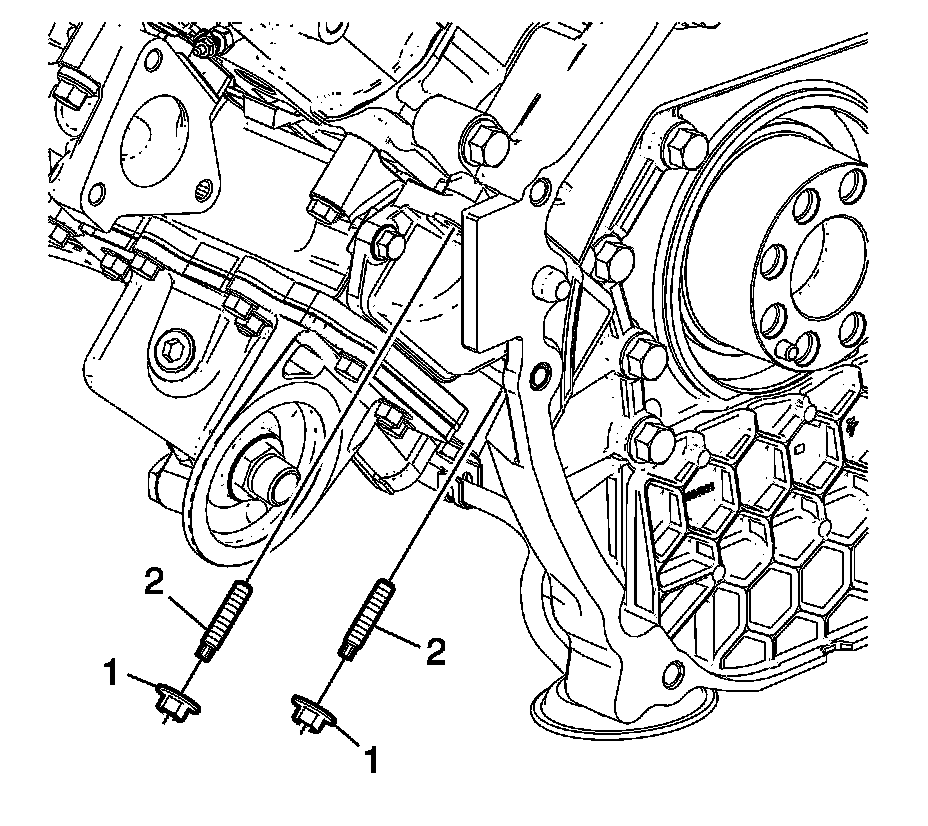

3. Remove the oil cooler adapter nuts (1) and studs (2).





Note:
The upper oil pan must be removed before removing the flywheel housing.

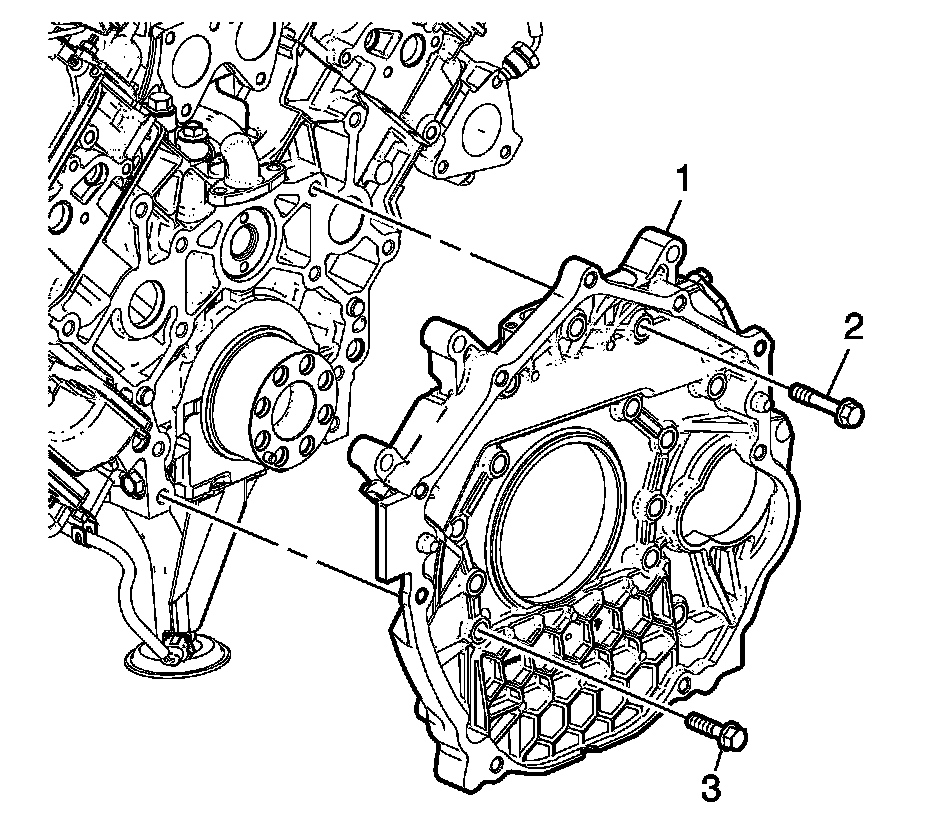

4. Remove the flywheel housing bolts (2) and (3).

5. Separate the flywheel housing from the cylinder block using J 37228 - cutter.

6. Remove the flywheel housing (1).





7. Remove the turbocharger oil return pipe gasket from the flywheel housing.

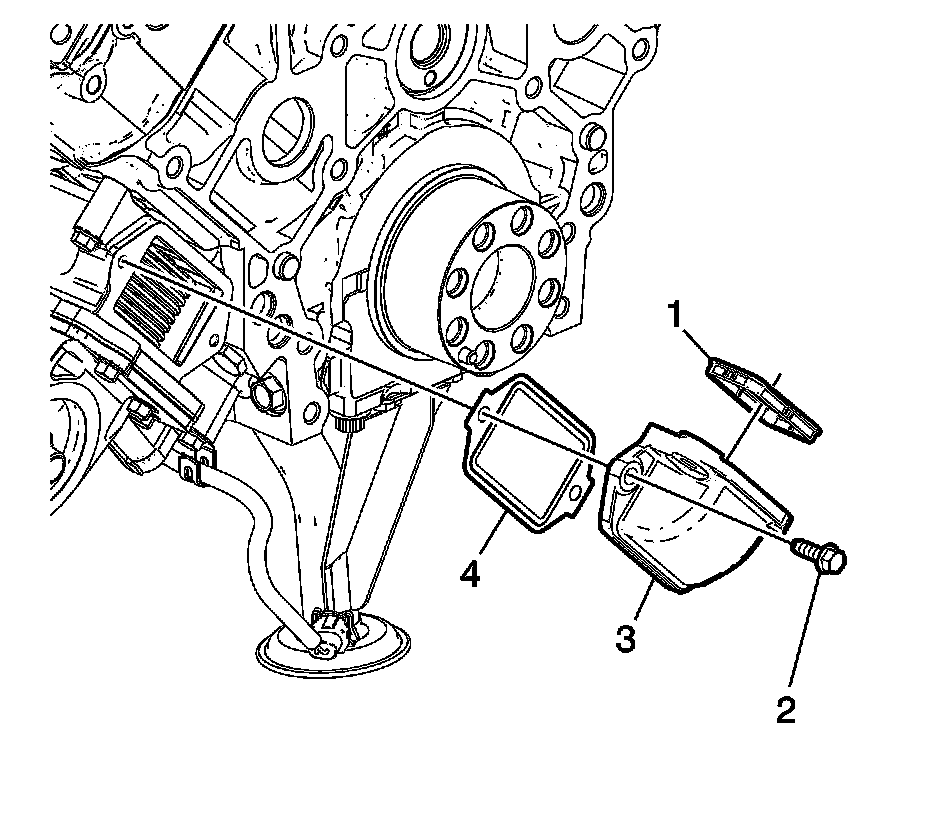

8. Remove the oil cooler adapter bolts (2).

9. Remove the oil cooler adapter (3) with gaskets (1) and (4).
