129. Crankshaft Balancer Installation

Crankshaft Balancer Installation

Special Tools

J 44643 - Flywheel Hold Tool

For equivalent regional tools, refer to Special Tools Special Tools.





1. Install the J 44643 - tool (1, 2) to lock the flywheel.





2. Lightly lubricate the crankshaft balancer internal hub with engine oil.

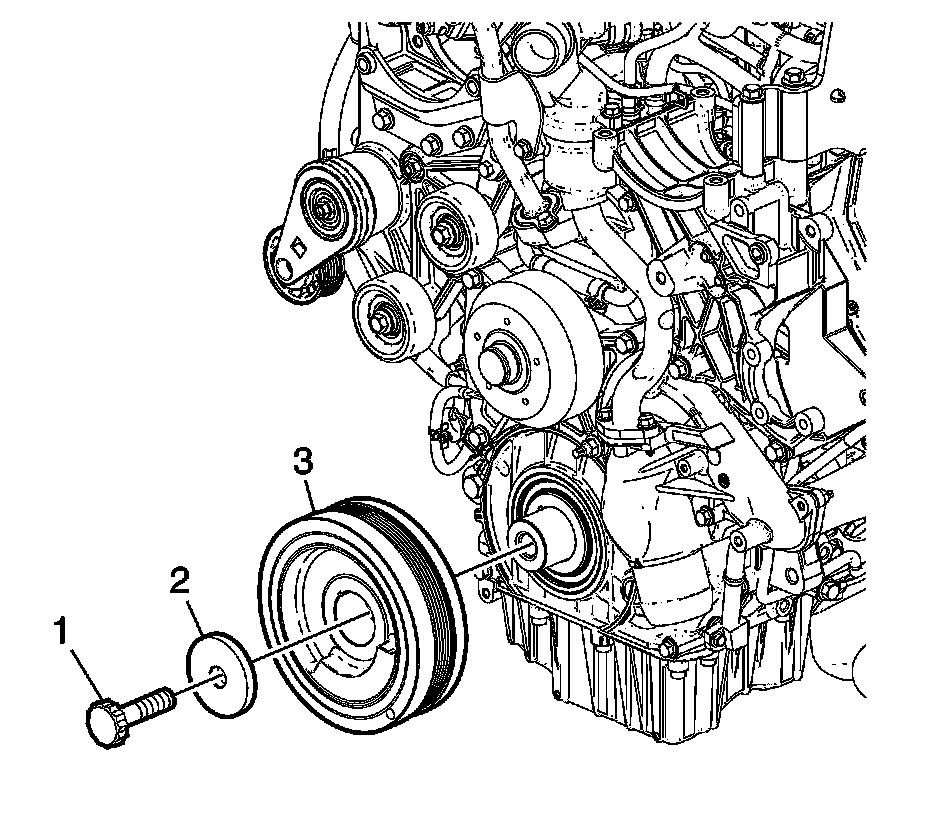

3. Install the crankshaft balancer (3) to the crankshaft.

4. Lightly lubricate the NEW crankshaft balancer bolt (1) with engine oil.

Caution:
Refer to Fastener Caution Fastener Caution.

5. Install the NEW crankshaft balancer bolt (1) and washer (2).

1. Tighten the bolt to 100 Nm (74 lb ft)on the first pass.

2. Tighten the bolt an additional 90 degrees.

6. Remove the J 44643 - tool.
