128. Engine Flywheel Installation (Automatic Transmission)

Engine Flywheel Installation (Automatic Transmission)

Special Tools

* J 44643 - Flywheel Hold Tool

* J 45059 - Angle Meter

For equivalent regional tools, refer to Special Tools Special Tools.





1. Install the flywheel to the crankshaft.

2. Install the flywheel washer to the flywheel with the beveled side facing the engine.

Caution:
This component uses bolts with a preapplied molybdenum disulfide coating for thread lubrication. Do not remove the coating or use any additional lubricant. Improperly lubricated threads will adversely affect the bolt torque and clamp load. Improper bolt torque and clamp load can lead to engine damage.

3. Install NEW flywheel bolts.

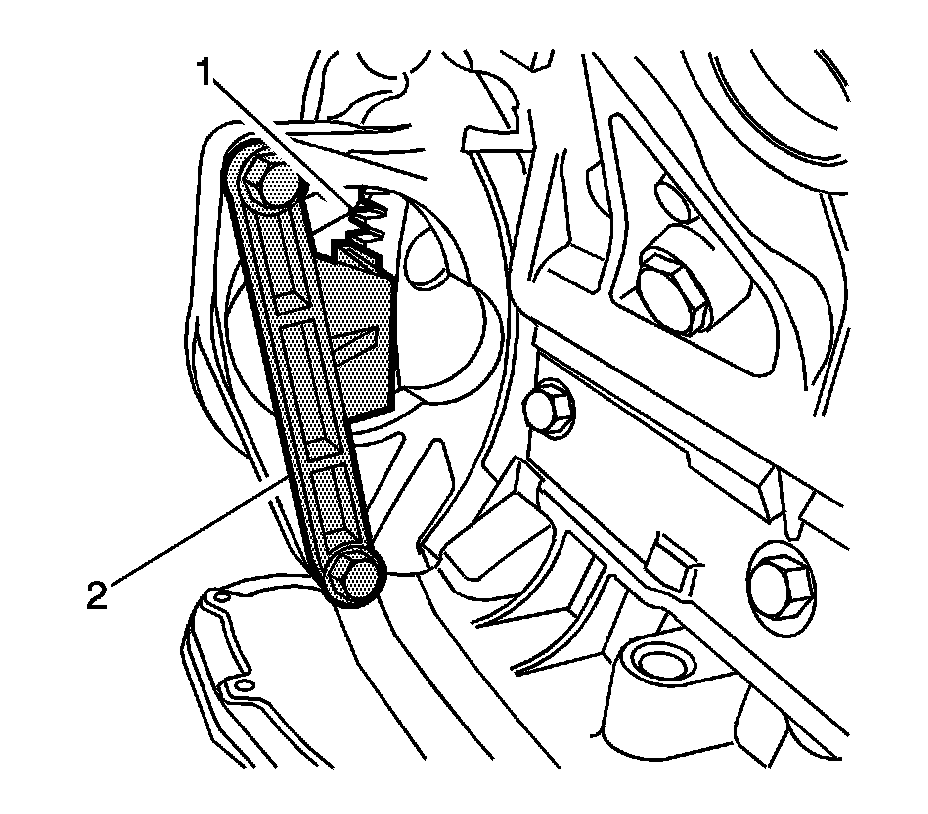

4. Install the J 44643 - toolto lock the flywheel.





Caution:
Refer to Fastener Caution Fastener Caution.

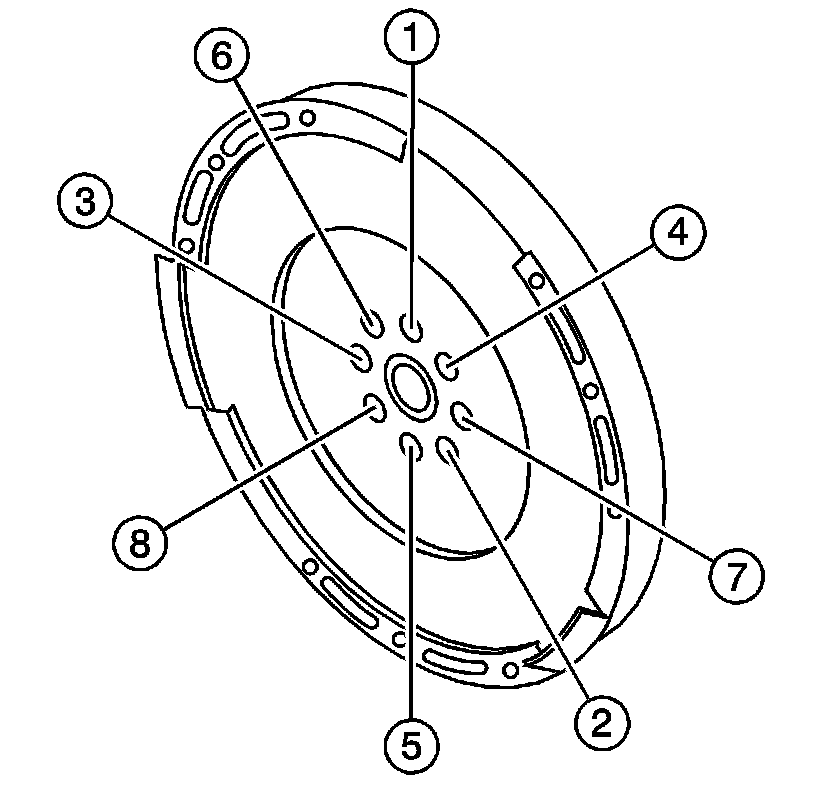

5. Tighten the flywheel bolts in the proper sequence.

1. 1st step 79 Nm (59 lb ft).

2. 2nd step 60 degreesusing J 45059 - meter.

3. 3rd step 60 degreesusing J 45059 - meter.
