122. Lower Oil Pan Installation

Lower Oil Pan Installation





1. Apply a 2-3 mm wide by 0.5-1.5 mm high bead of GM P/N 12378521 (Canadian P/N 88901148) sealant to the lower oil pan mating surface.





2. Install the lower oil pan (1).

3. Install the lower oil pan nuts (2) and bolts (3).





Caution:
Refer to Fastener Caution Fastener Caution.

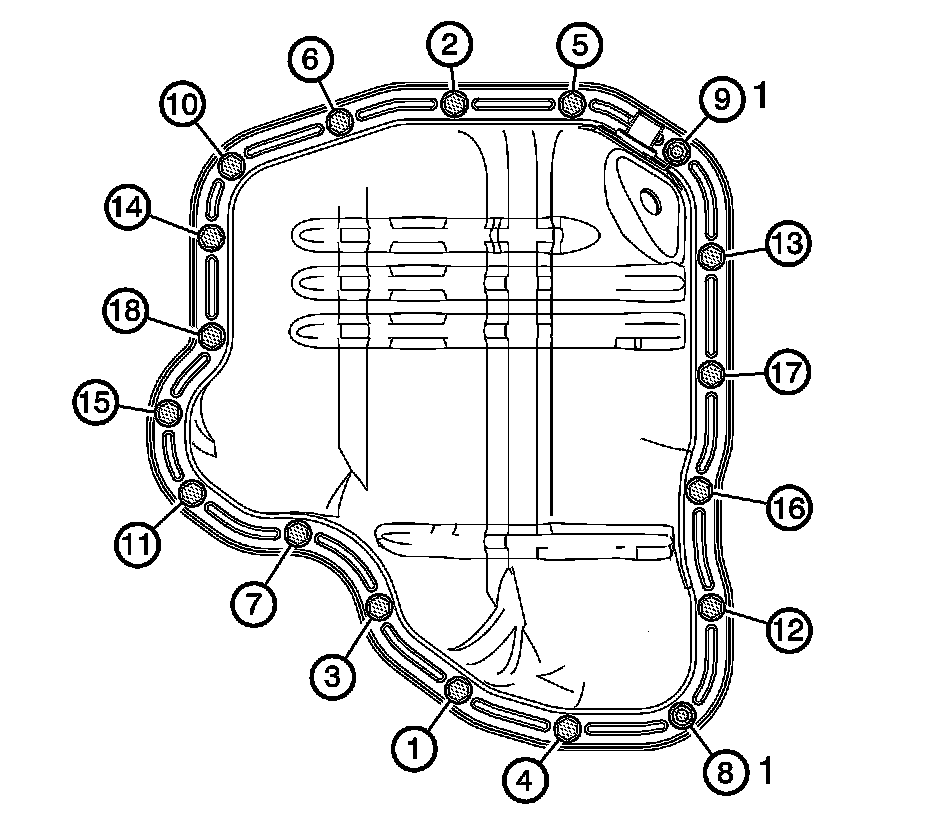

4. Tighten the lower oil pan bolts and nuts (1) in sequence to 10 Nm (89 lb in).





5. Connect the oil level sensor (1, 2).
