119. Engine Removal from Stand

Engine Removal from Stand

Special Tools

EN 49397 - Engine Lift Bracket Set

For equivalent regional tools, refer to Special Tools Special Tools.

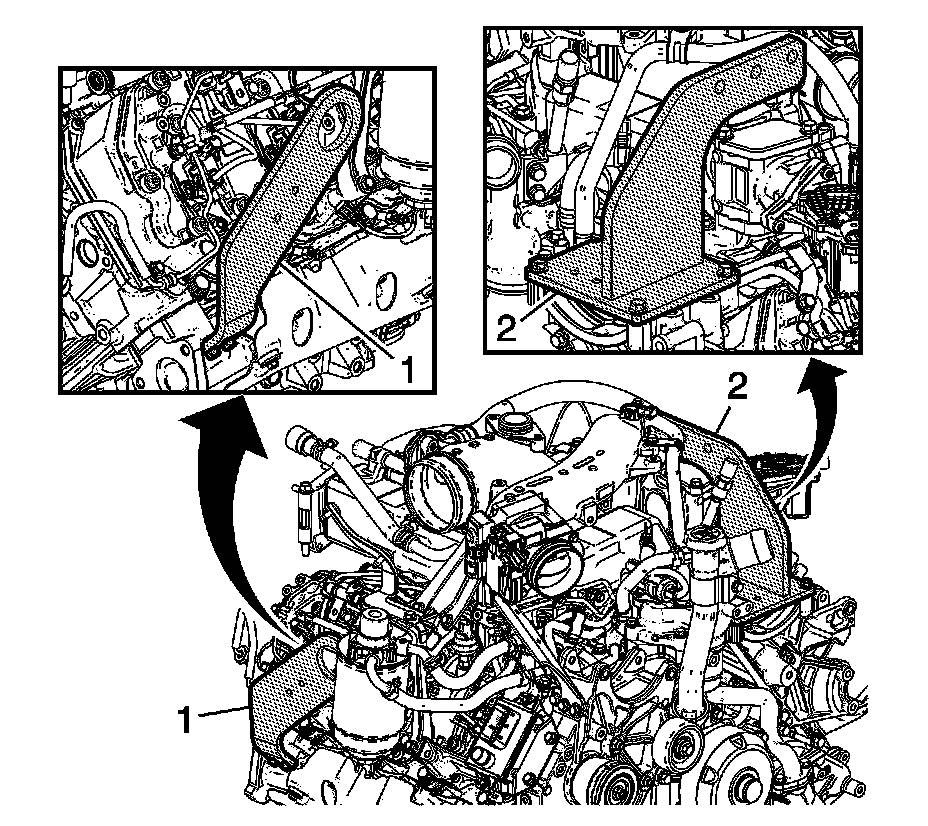

1. Install EN 49397 - lift bracket (1) to the right side exhaust manifold.

2. Install EN 49397 - lift bracket (2) to the power steering pump mounting bracket.





3. Lift the engine and the engine stand with a suitable hoist.

4. Remove the engine stand from the engine adapter.

5. Lower the engine to the floor. Support the engine with blocks.

6. Remove the engine adapter.
