100. Exhaust Manifold Installation - Right Side

Exhaust Manifold Installation - Right Side

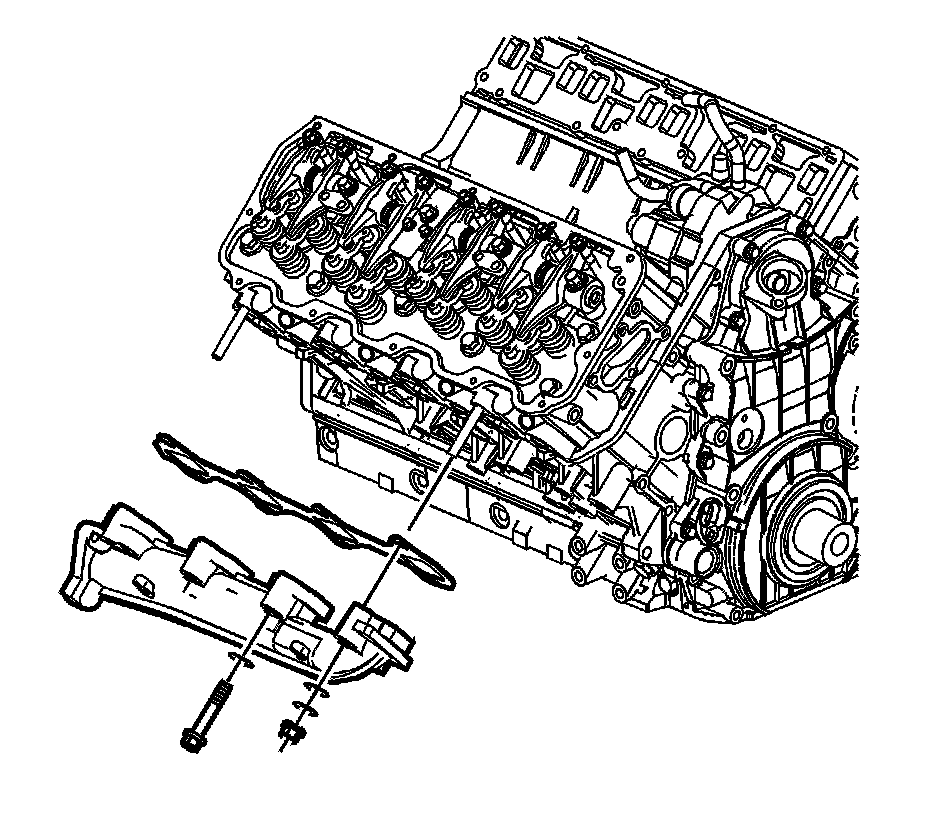

1. Install the exhaust manifold gasket.

2. Install the exhaust manifold.





Caution:
Refer to Fastener Caution Fastener Caution.

3. Install the exhaust manifold bolts and nuts.

1. Tighten the exhaust manifold bolts and nuts to 57 Nm (42 lb ft)in the proper sequence.

2. Tighten the center exhaust manifold bolts and nuts an additional pass to 57 Nm (42 lb ft)in sequence.

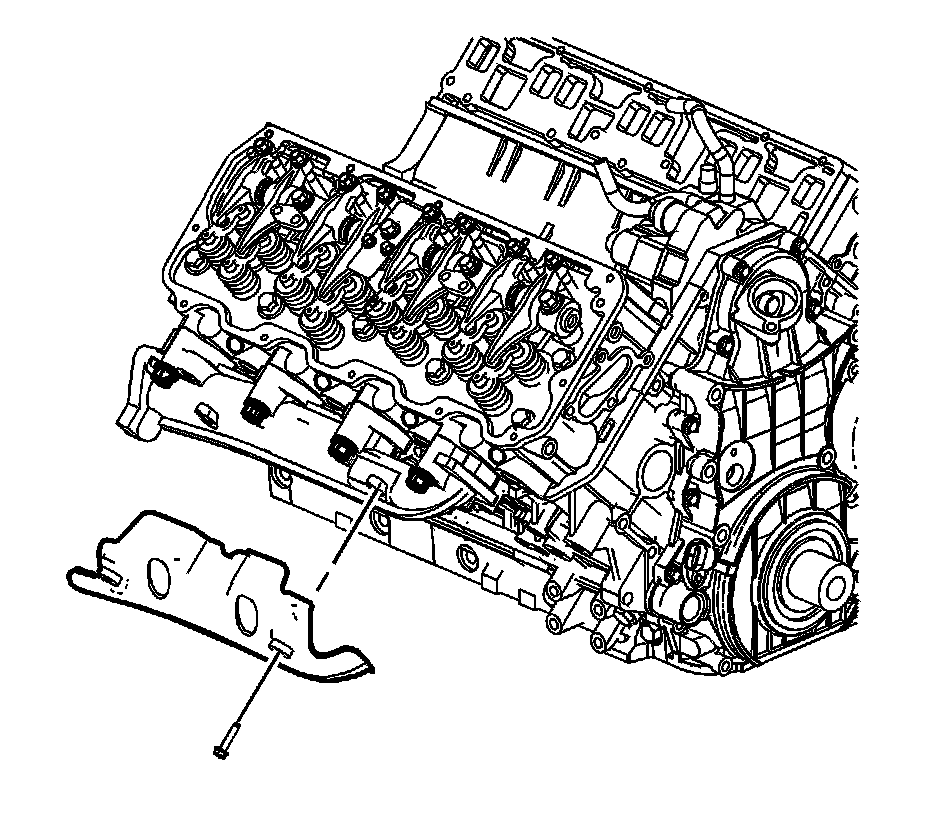

4. Install the exhaust manifold heat shield.

5. Install the exhaust manifold heat shield bolts and tighten to 10 Nm (89 lb in).
