Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal Replacement

Special Tools

* J 44641 Crankshaft Rear Oil Seal Remover

* J 44642 Crankshaft Rear Oil Seal Installer

Removal Procedure





1. Remove the engine flywheel. Refer to Engine Flywheel Replacement Service and Repair

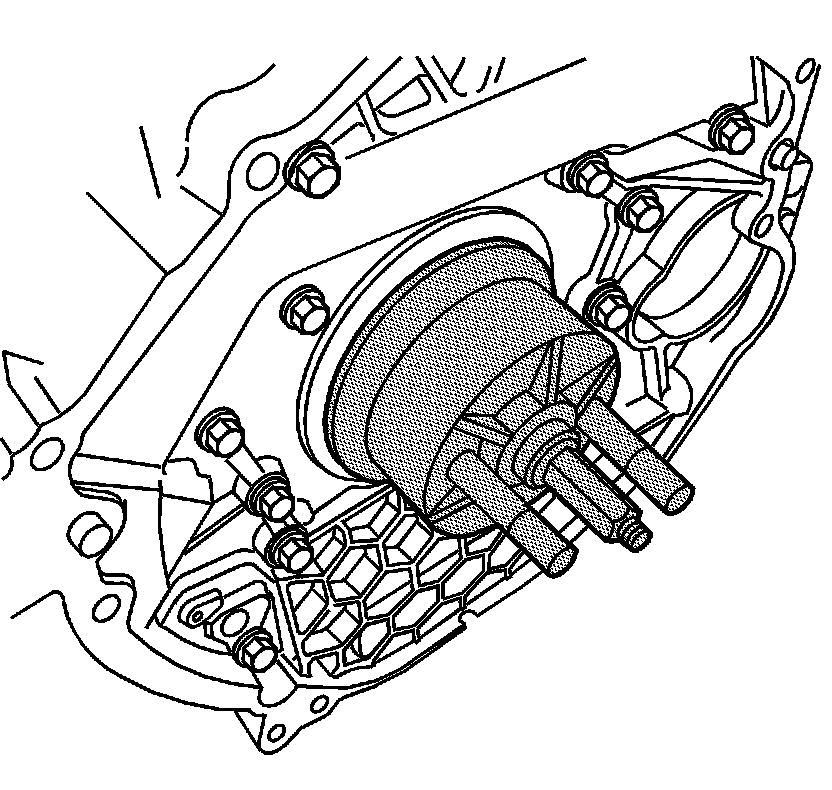

2. Install the button of J 44641 into the crankshaft.

3. Press the jaws of J 44641 into the felt portion of the seal far enough to engage the inner lip of the seal.

4. While holding the jaws of J 44641 tightly to the seals inner sleeve, tighten the jaw bolts.

5. Remove the crankshaft rear oil seal using the J 44641.

Installation Procedure





1. Place the crankshaft rear oil seal onto the crankshaft.

Note:
The J 44642 must be fully secured to the crankshaft to ensure proper seal depth.

2. Install the J 44642 to the crankshaft.

3. Press the crankshaft rear oil seal into position using the J 44642. The J 44642 will bottom out when the seal reaches the proper depth.

4. Remove the J 44642.

5. Install the engine flywheel. Refer to Engine Flywheel Replacement Service and Repair.
