Drive Belt Tensioner: Service and Repair

Drive Belt Tensioner Replacement

Removal Procedure





1. Remove the drive belt. Refer to Drive Belt Replacement Service and Repair.

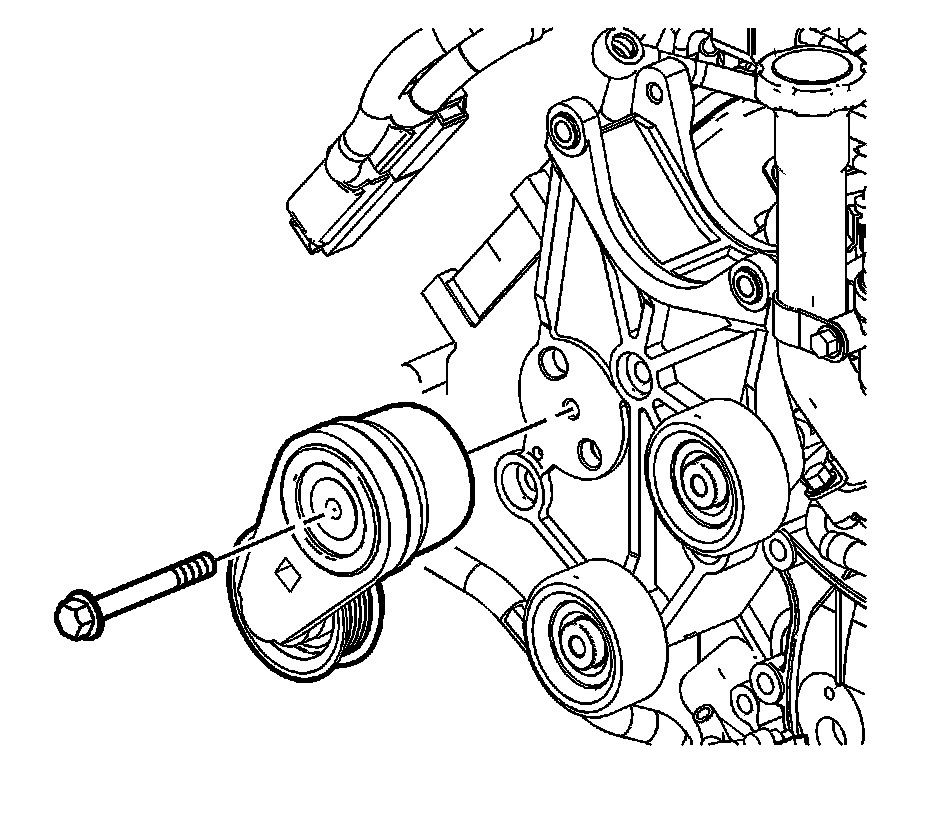

2. Remove the drive belt tensioner bolt.

3. Remove the drive belt tensioner.

Installation Procedure





1. Install the drive belt tensioner. Align the pin with the hole in the generator bracket.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the drive belt tensioner bolt and tighten to 50 Nm (37 lb ft).

3. Install the drive belt. Refer to Drive Belt Replacement Service and Repair.
