Headlamp- Right (Sealed)

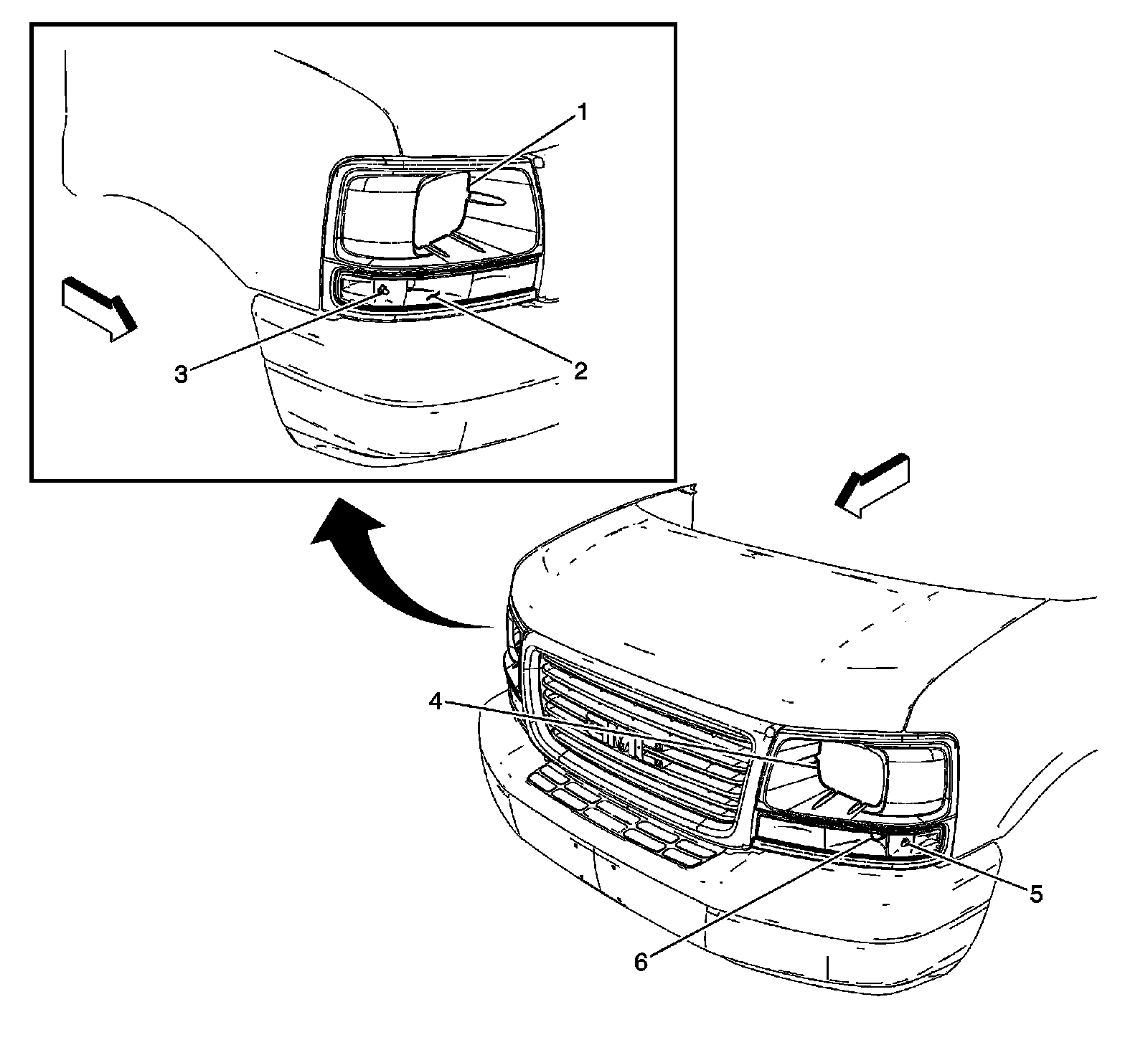

Front of Vehicle/Engine Compartment Component Views

Front Exterior Lighting (Base)





1 - Headlamp- Right (Sealed)

2 - Park/Turn Signal Lamp- Right Front

3 - Marker Lamp- Right Front

4 - Headlamp- Left (Sealed)

5 - Marker Lamp- Left Front

6 - Park/Turn Signal Lamp- Left Front
