Body Harness Routing- Right Front Passenger Compartment

Harness Routing Views

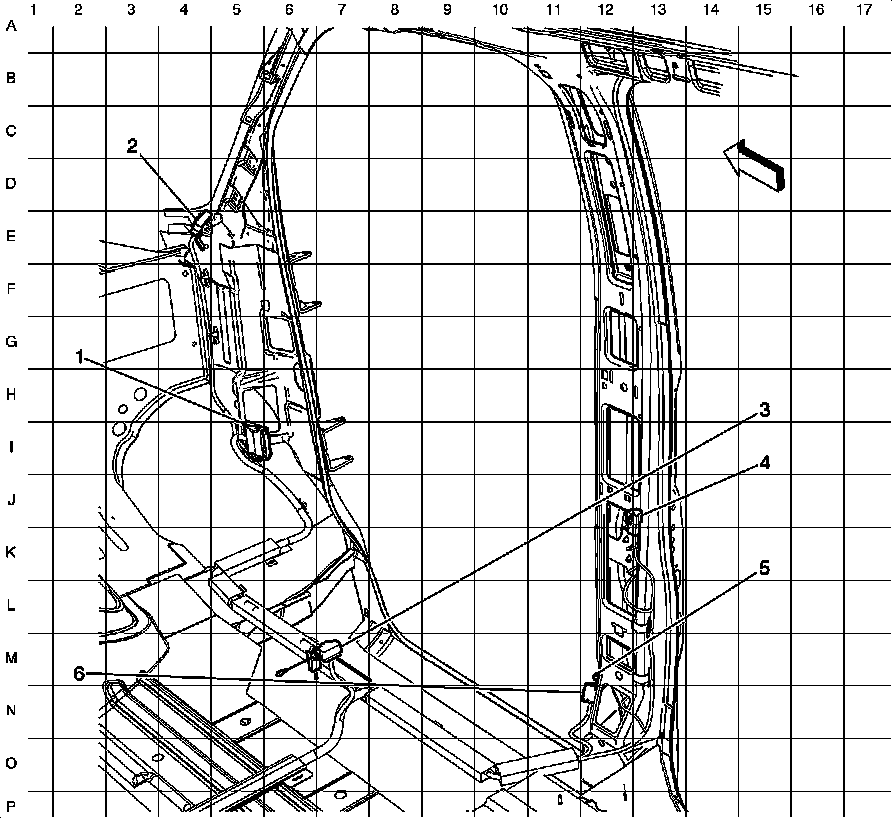

Body Harness Routing- Right Front Passenger Compartment





1 - X600

2 - X205

3 - X306

4 - X324 (ASF)

5 - G348

6 - JX348
