Body Harness Routing- Right C-Pillar
Body Harness Routing- Right C-Pillar
Harness Routing Views

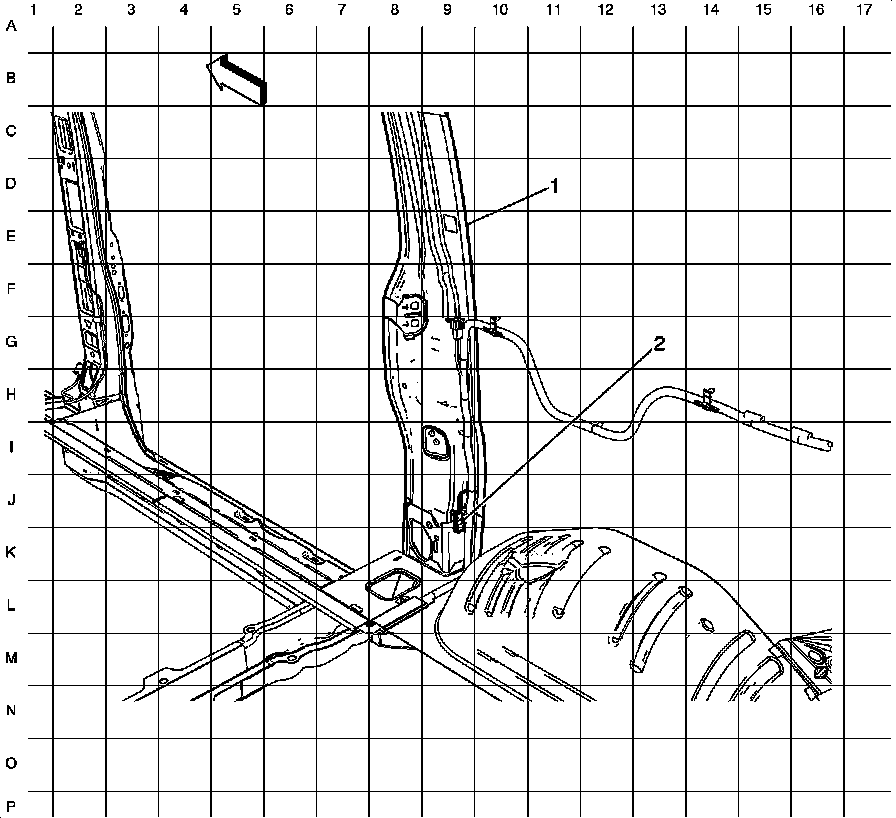

Body Harness Routing- Right C-Pillar
1
- C-Pillar- Right Side
2
- X324 (ASF)
