Cargo Door- Right Rear

Harness Routing Views

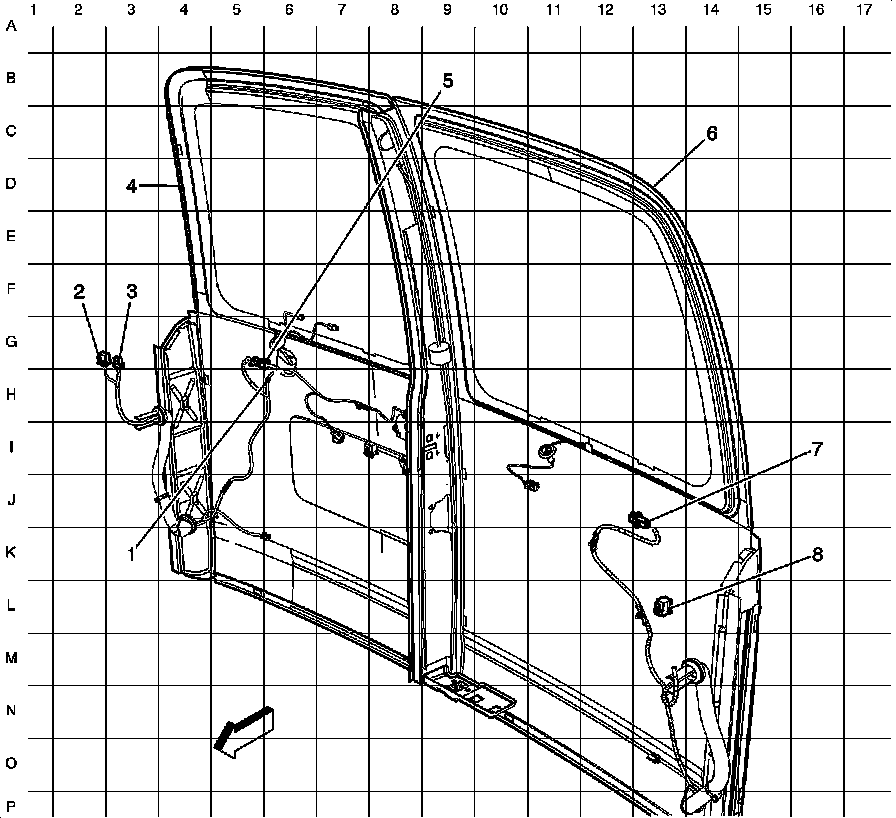

Rear Cargo Doors Harness Routing (Passenger or Cargo)





1 - J902

2 - X400

3 - X412

4 - Cargo Door- Right Rear

5 - X902 (C49 with A12)

6 - Cargo Door- Left Rear

7 - X901 (C49 with A12)

8 - X411
