Axle Shaft Assembly: Locations

Wheel Drive Shafts Disassembled Views

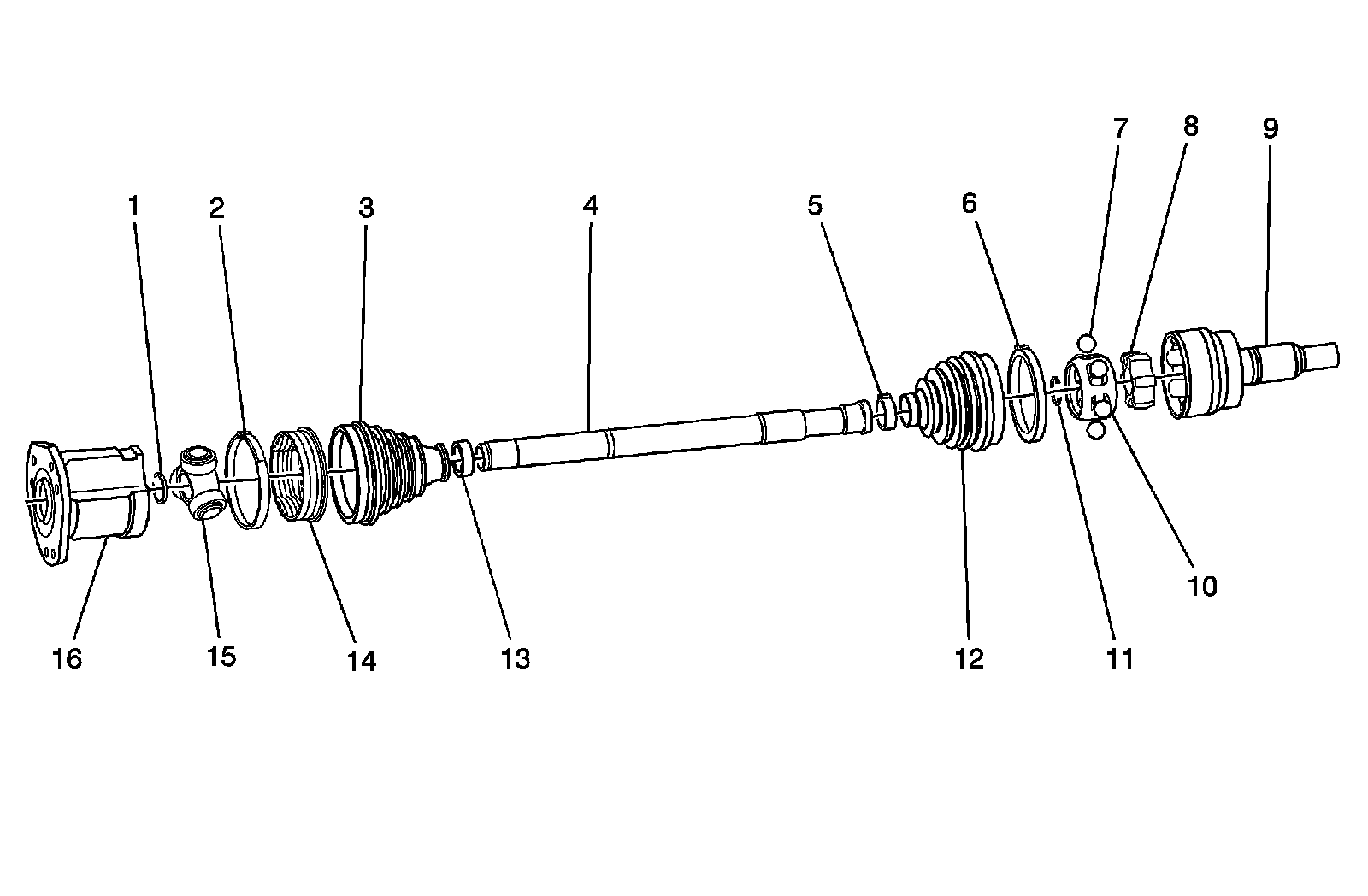

Halfshaft Disassembled View





1 - Retaining Ring

2 - Large Seal Retaining Clamp

3 - CV Joint Seal

4 - Wheel Drive Shaft Bar

5 - Small Seal Retaining Clamp

6 - Large Seal Retaining Clamp

7 - Ball

8 - CV Joint Inner Race

9 - CV Joint Outer Race

10 - CV Joint Cage

11 - Retaining Ring

12 - CV Joint Seal

13 - Small Seal Retaining Clamp

14 - Tripot Bushing

15 - Tripot Joint Spider Assembly

16 - Tripot Housing Assembly
