Home >> Chevrolet >> 2012 >> Express 1500 AWD V8-5.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6L45/6L50/6L80/6L90 - Automatic Transmission >> 6. 1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Removal (6L50/80/90)

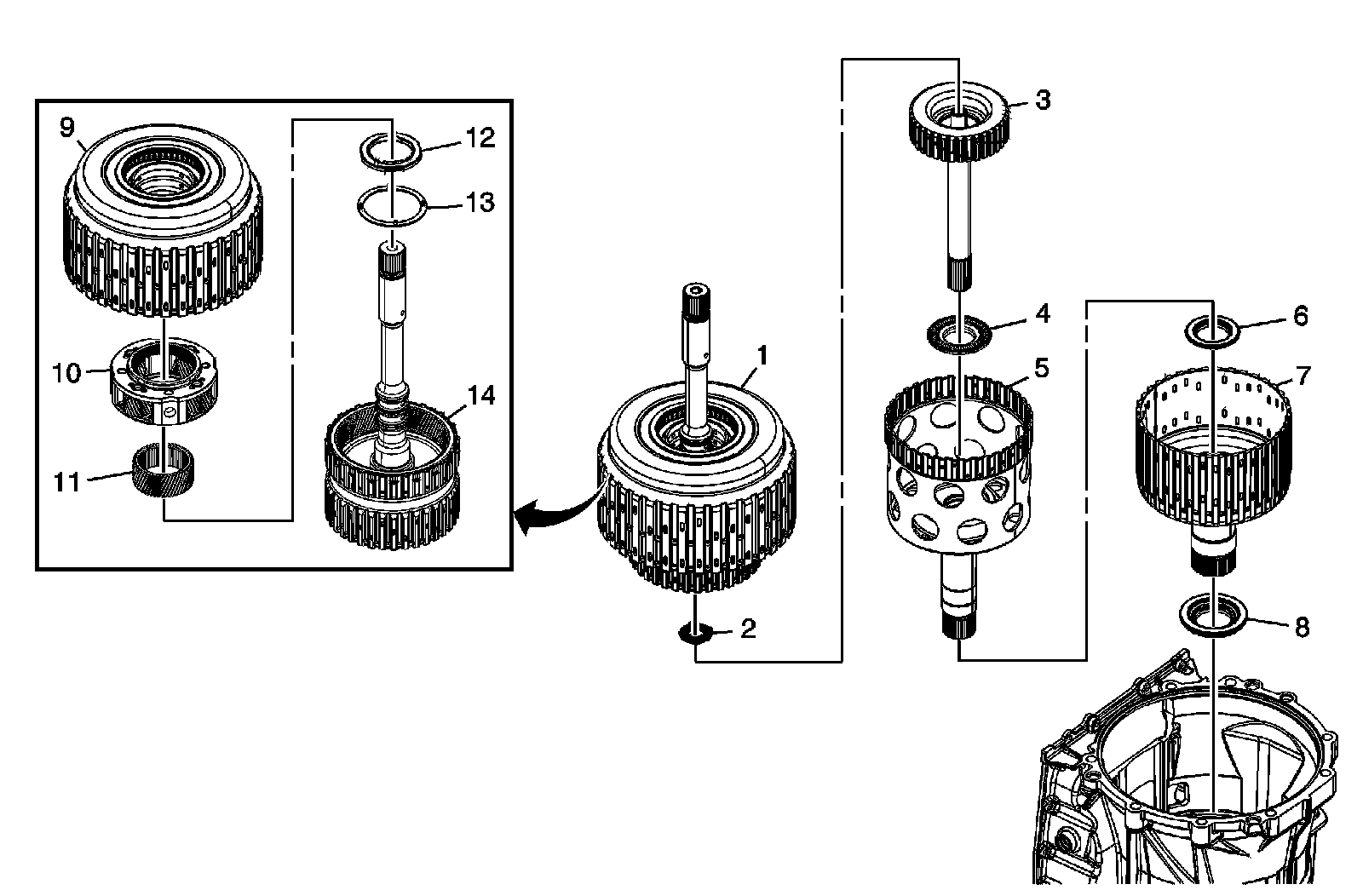

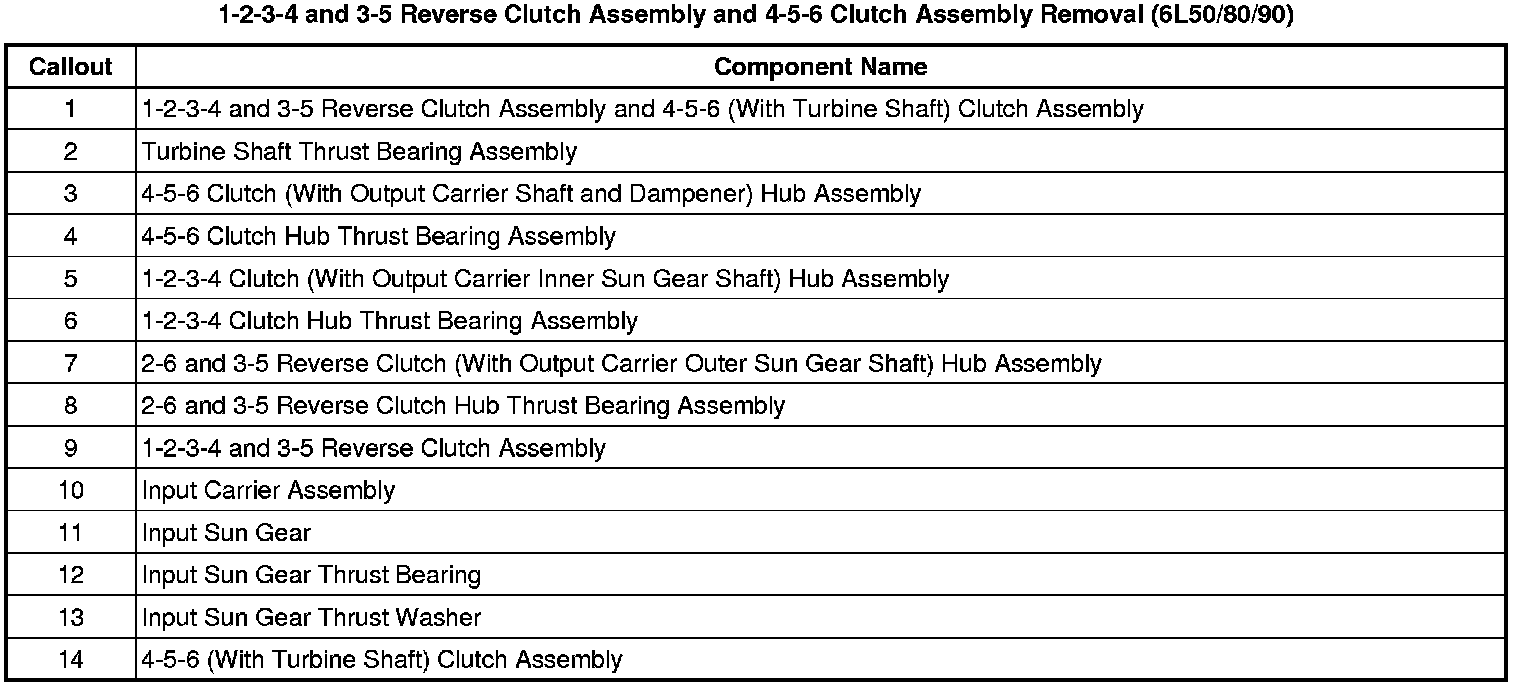

6. 1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Removal (6L50/80/90)




1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Removal (6L50/80/90)
