35. Control Valve Body Assembly Assemble




Control Valve Body Assembly Assemble

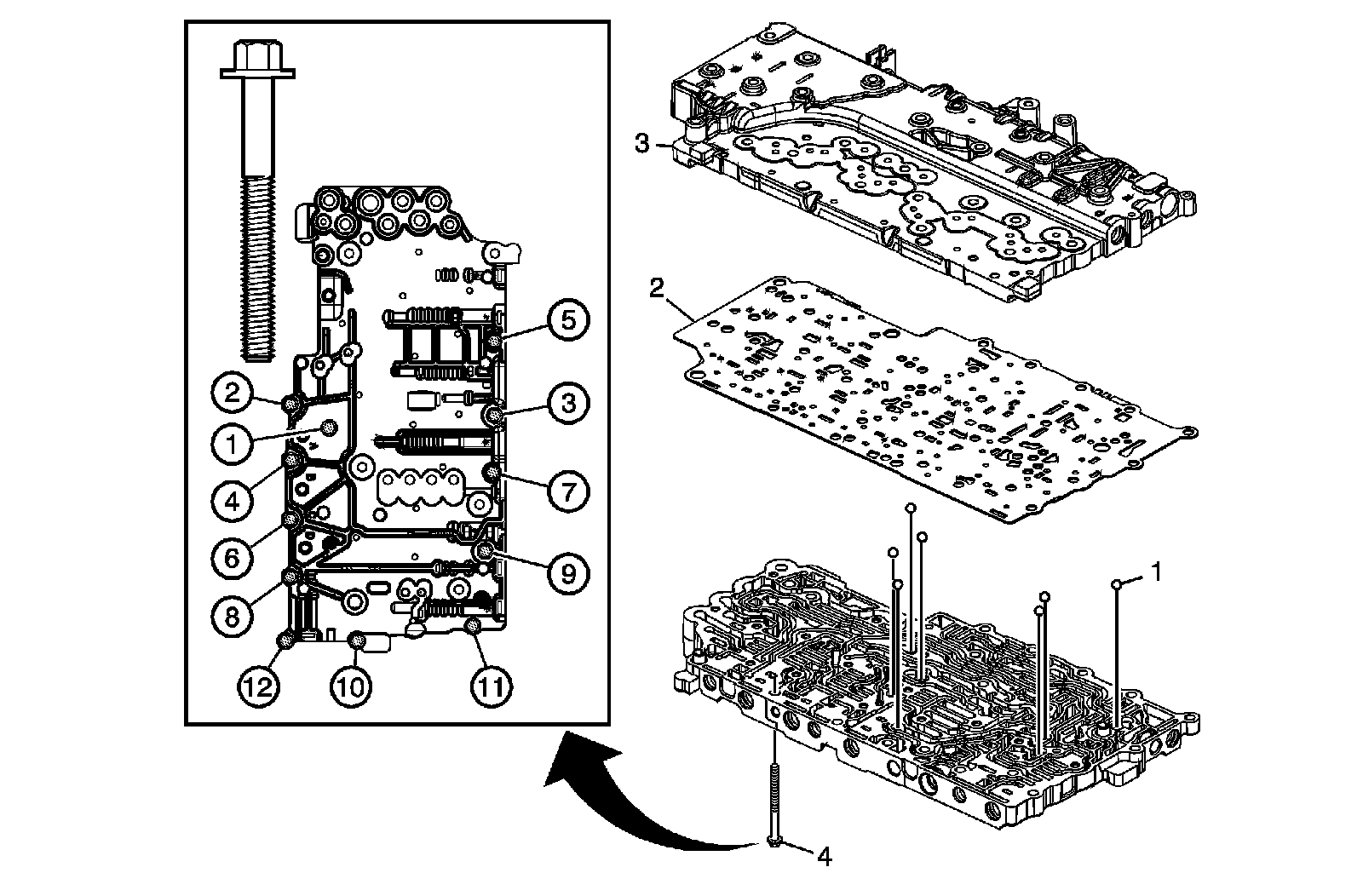

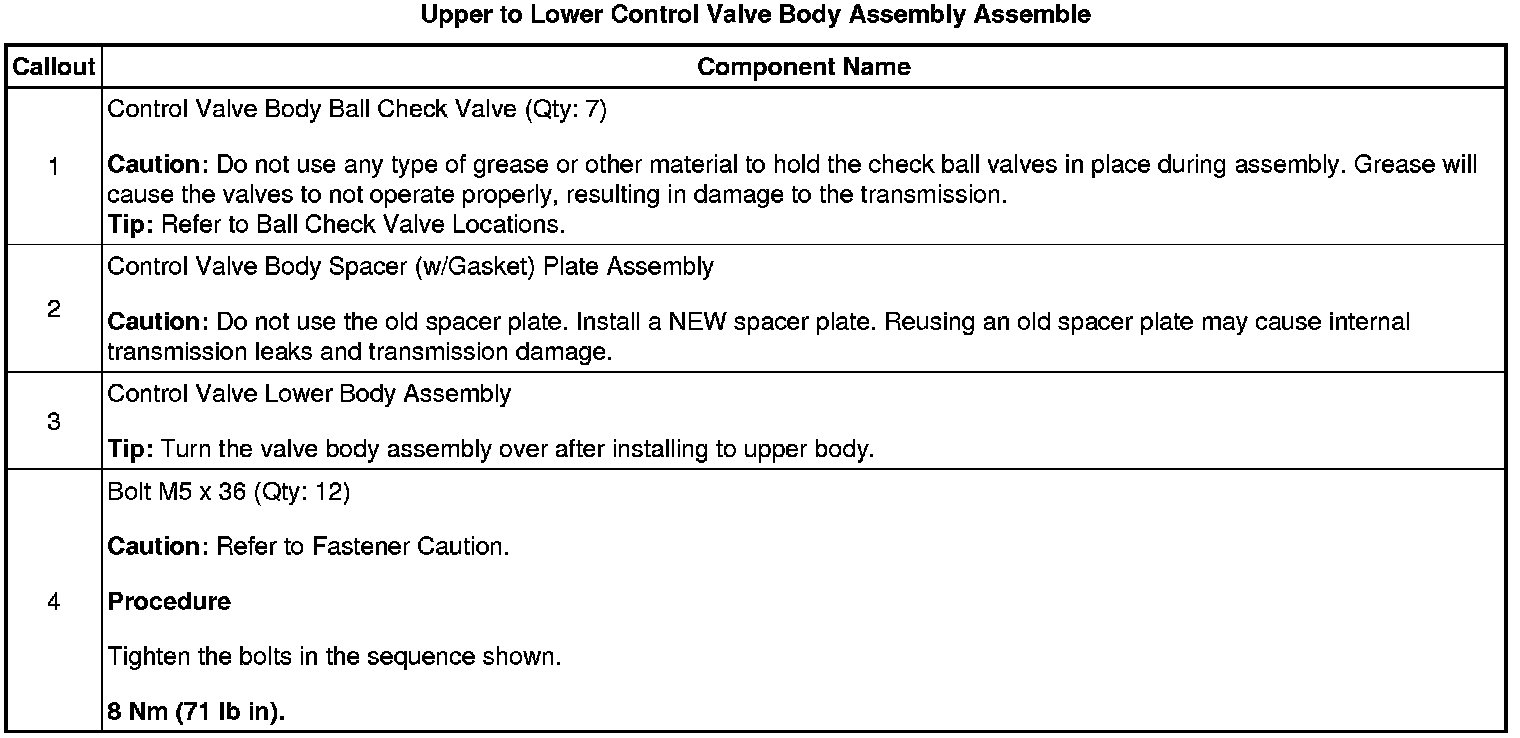

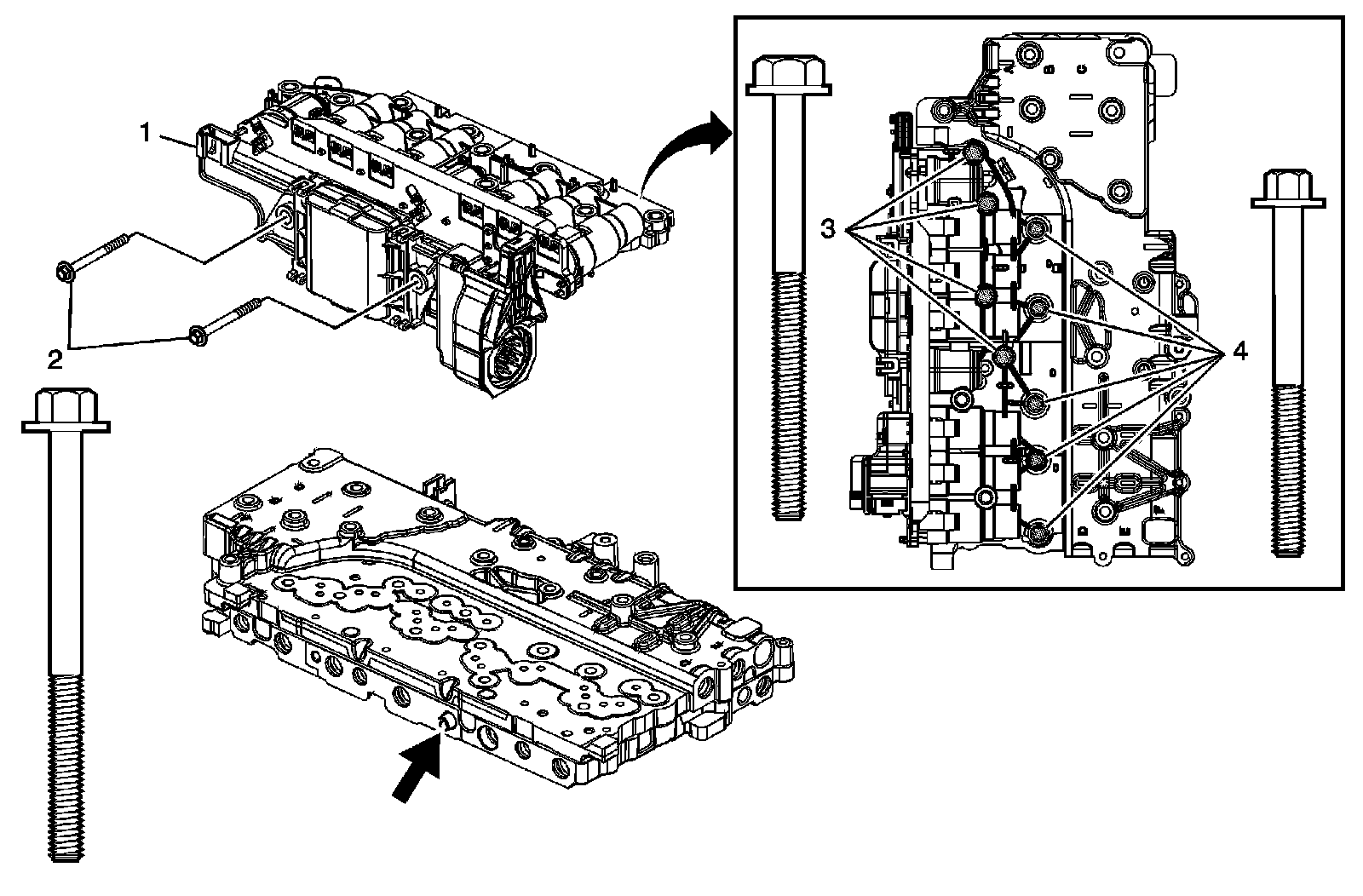

Upper to Lower Control Valve Body Assembly Assemble










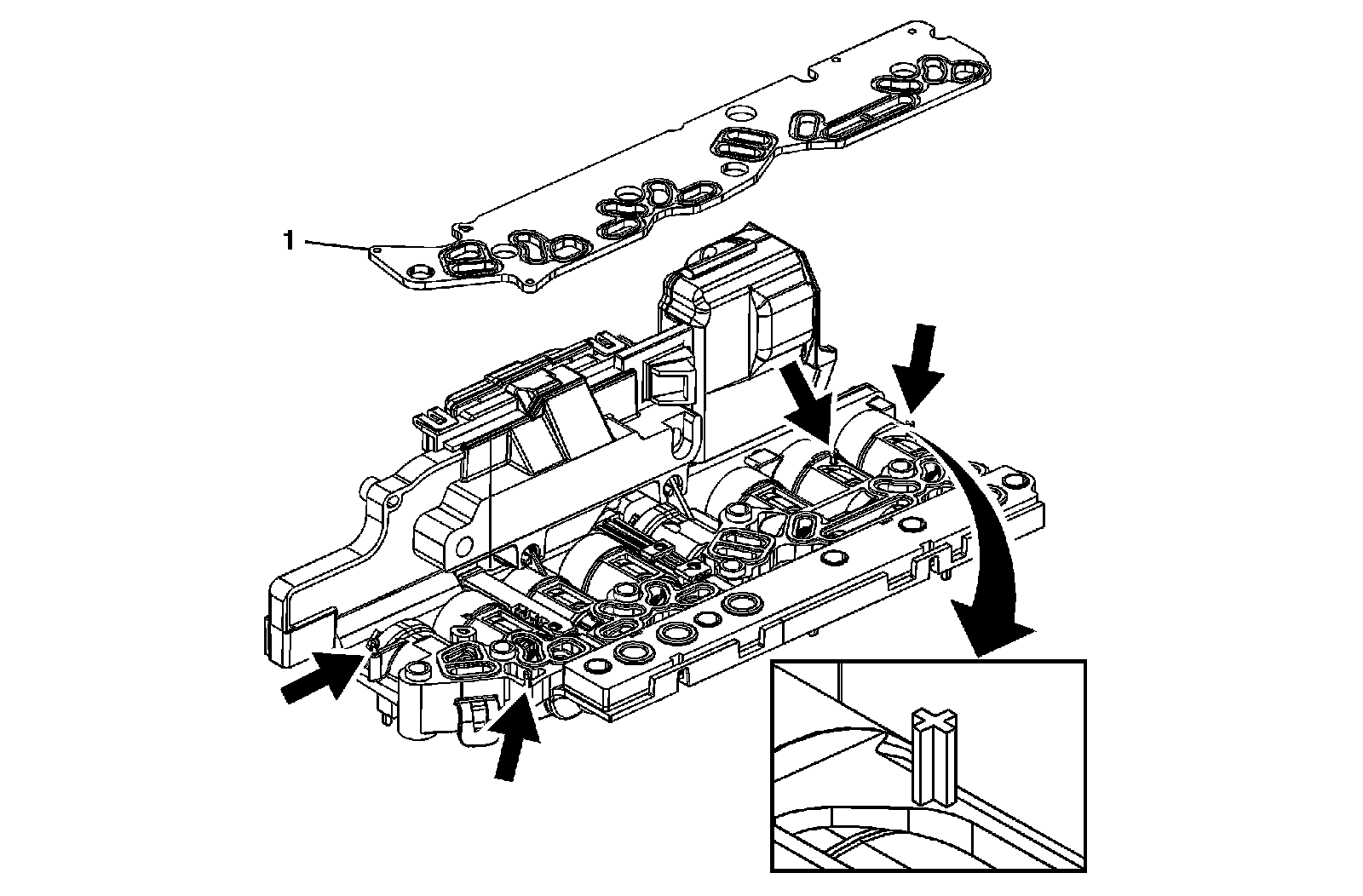

Filter Plate Installation










Control Solenoid Valve Assembly Installation










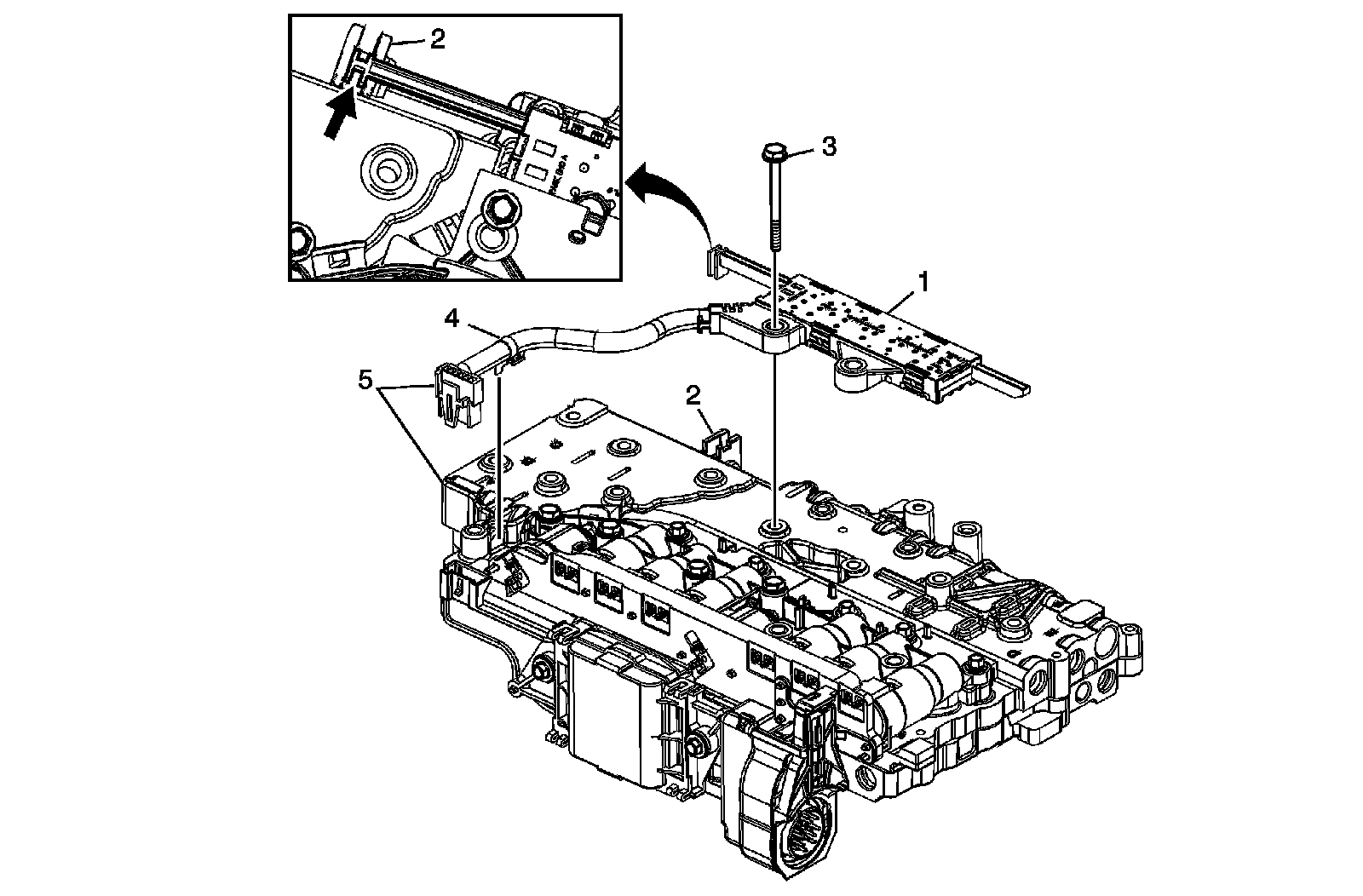

Manual Shift Shaft Position Switch Installation










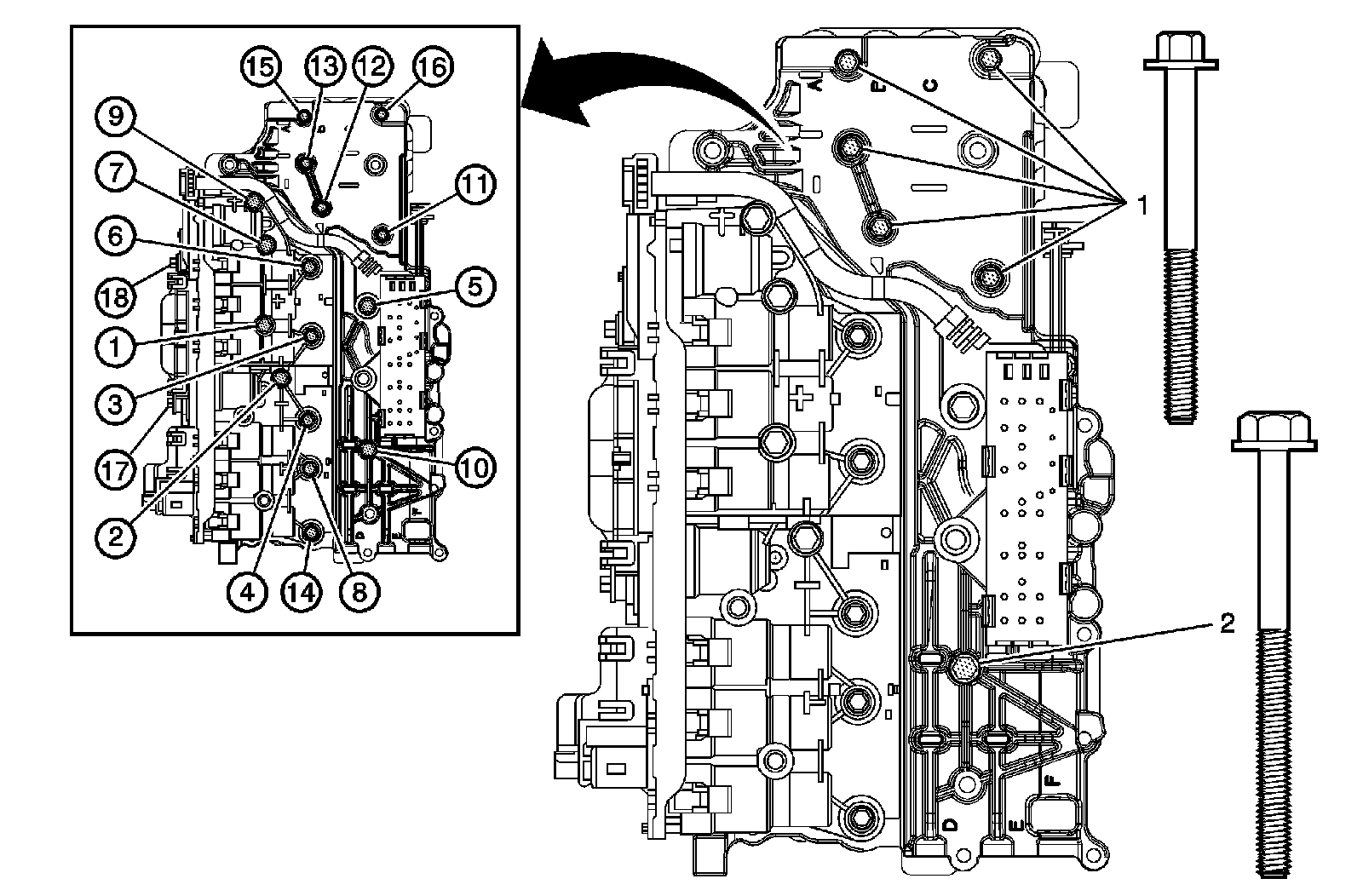

Valve Body, Control Solenoid Torque Sequence










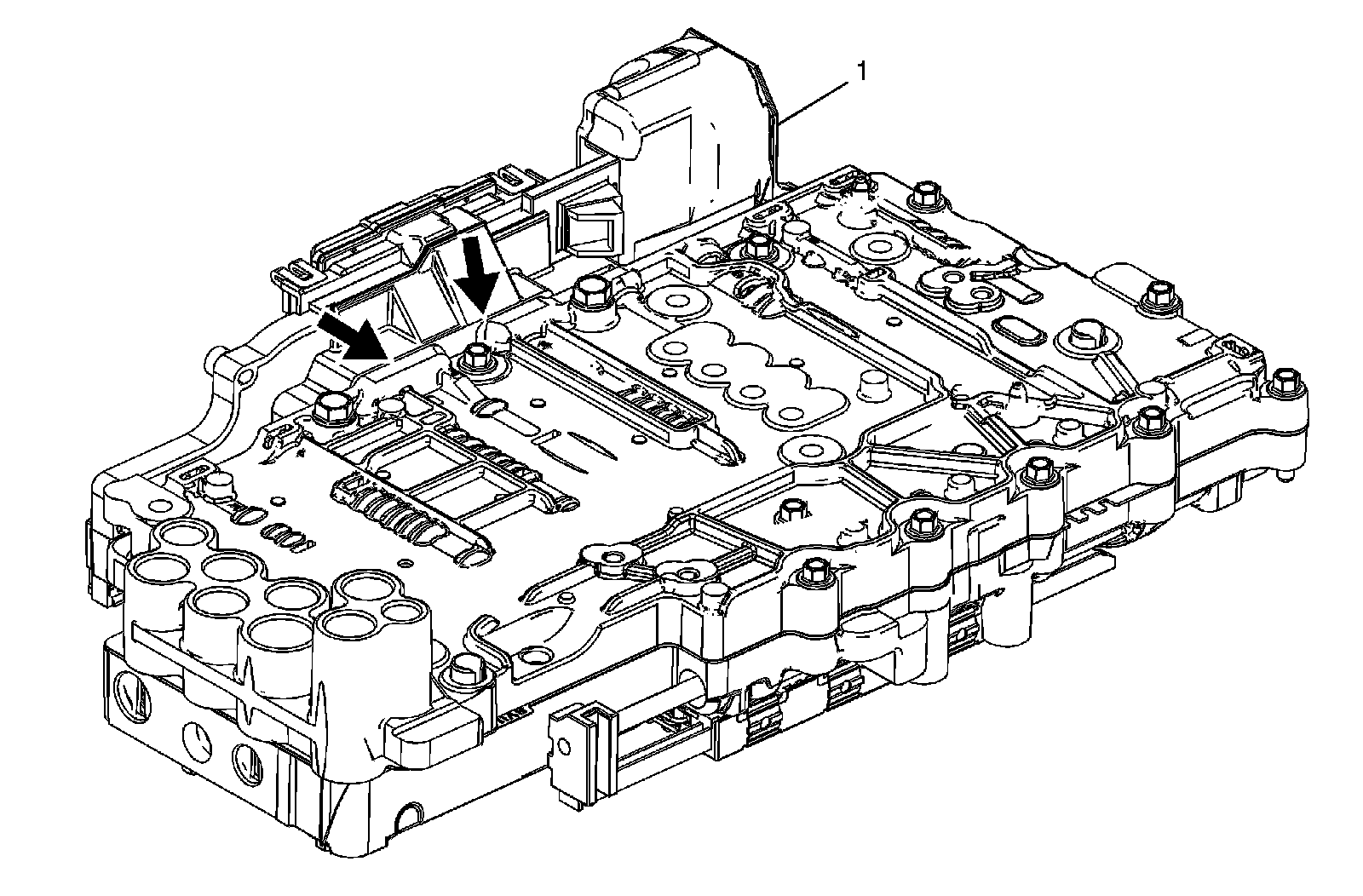

Control Solenoid Valve Assembly Contact Gap Inspection










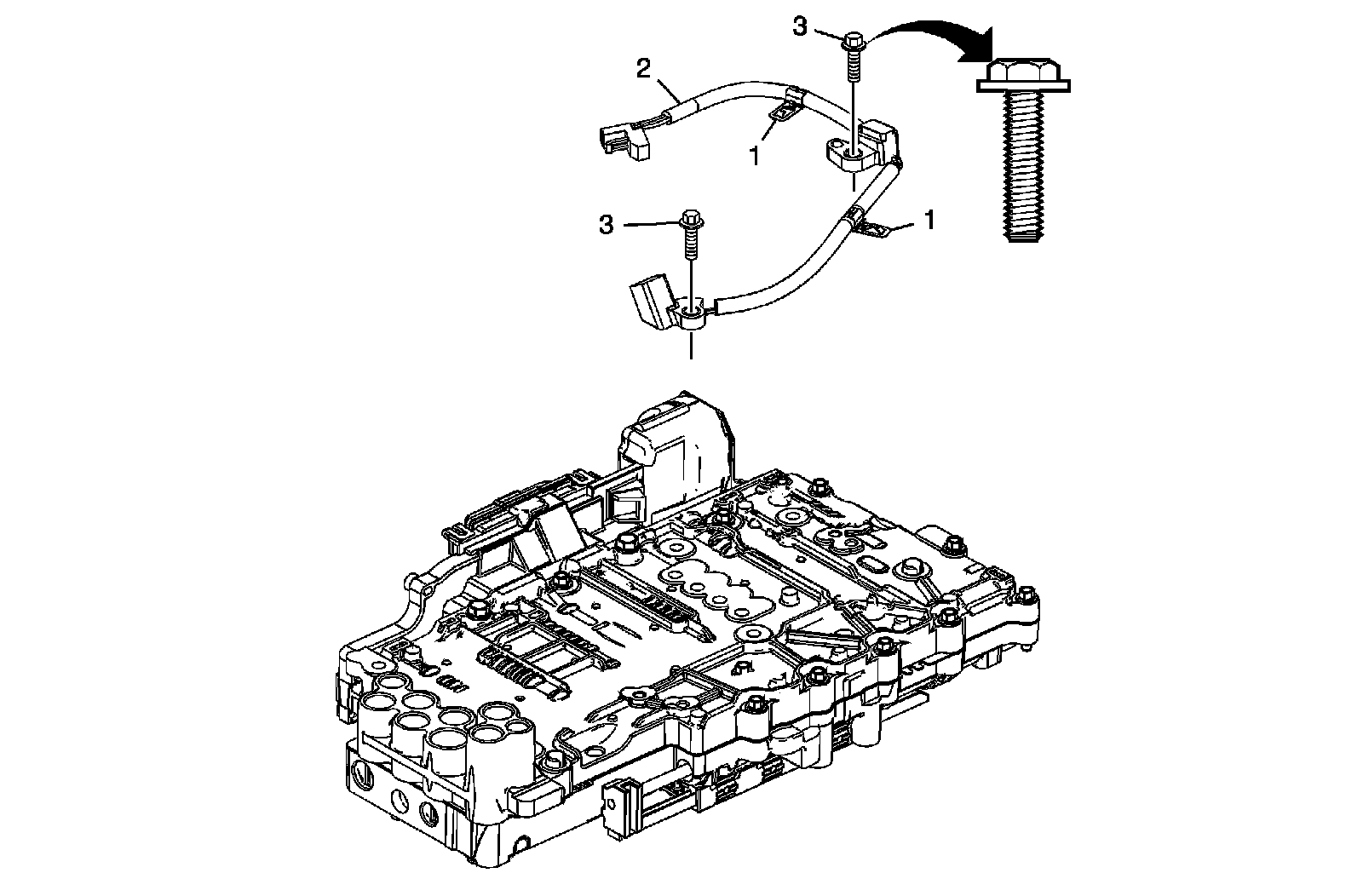

Input and Output Speed Sensor Assembly Installation
