22. 1-2-3-4 Clutch Backing Plate Retaining Ring Measurement

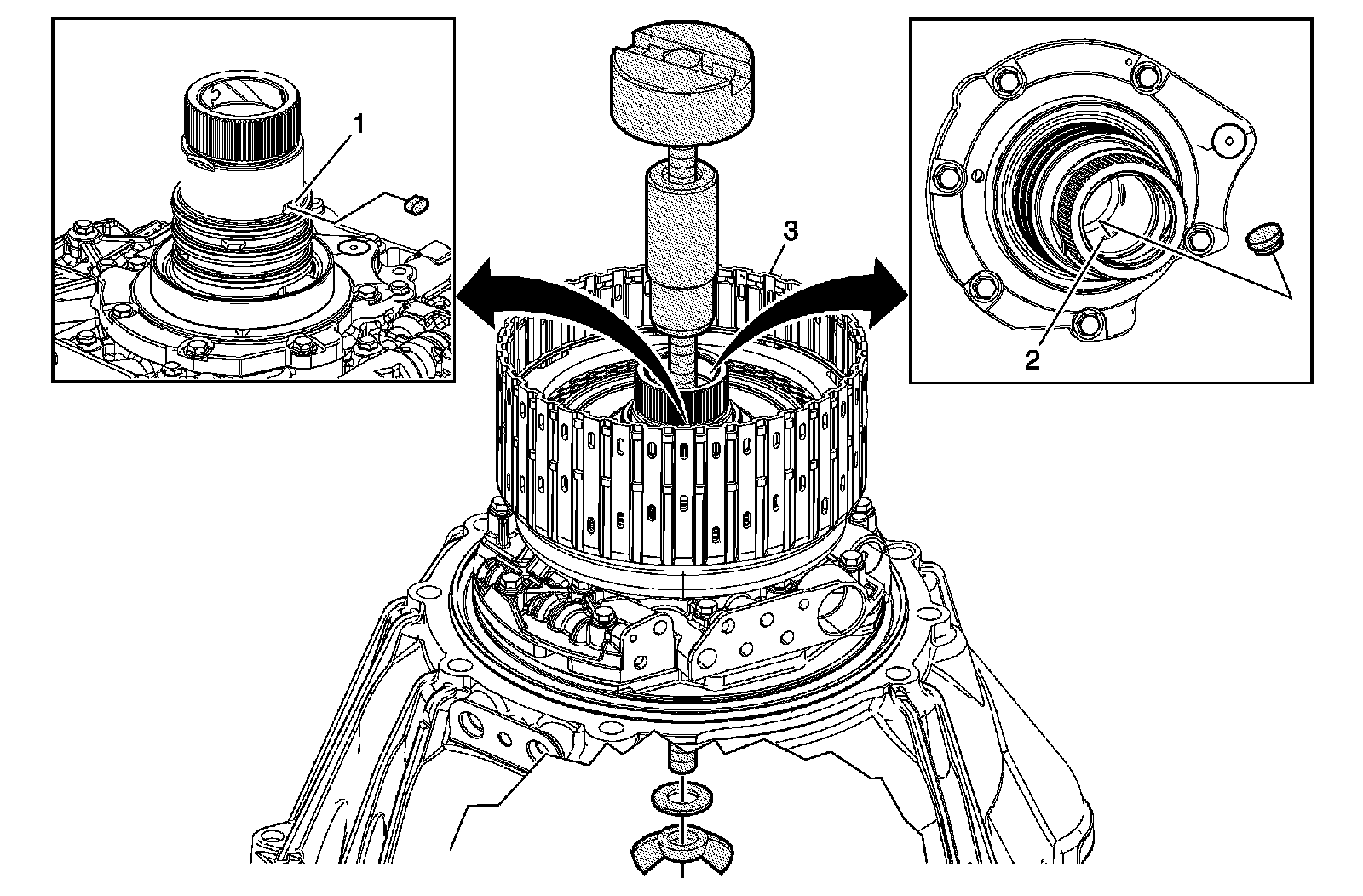

1-2-3-4 Clutch Backing Plate Retaining Ring Measurement

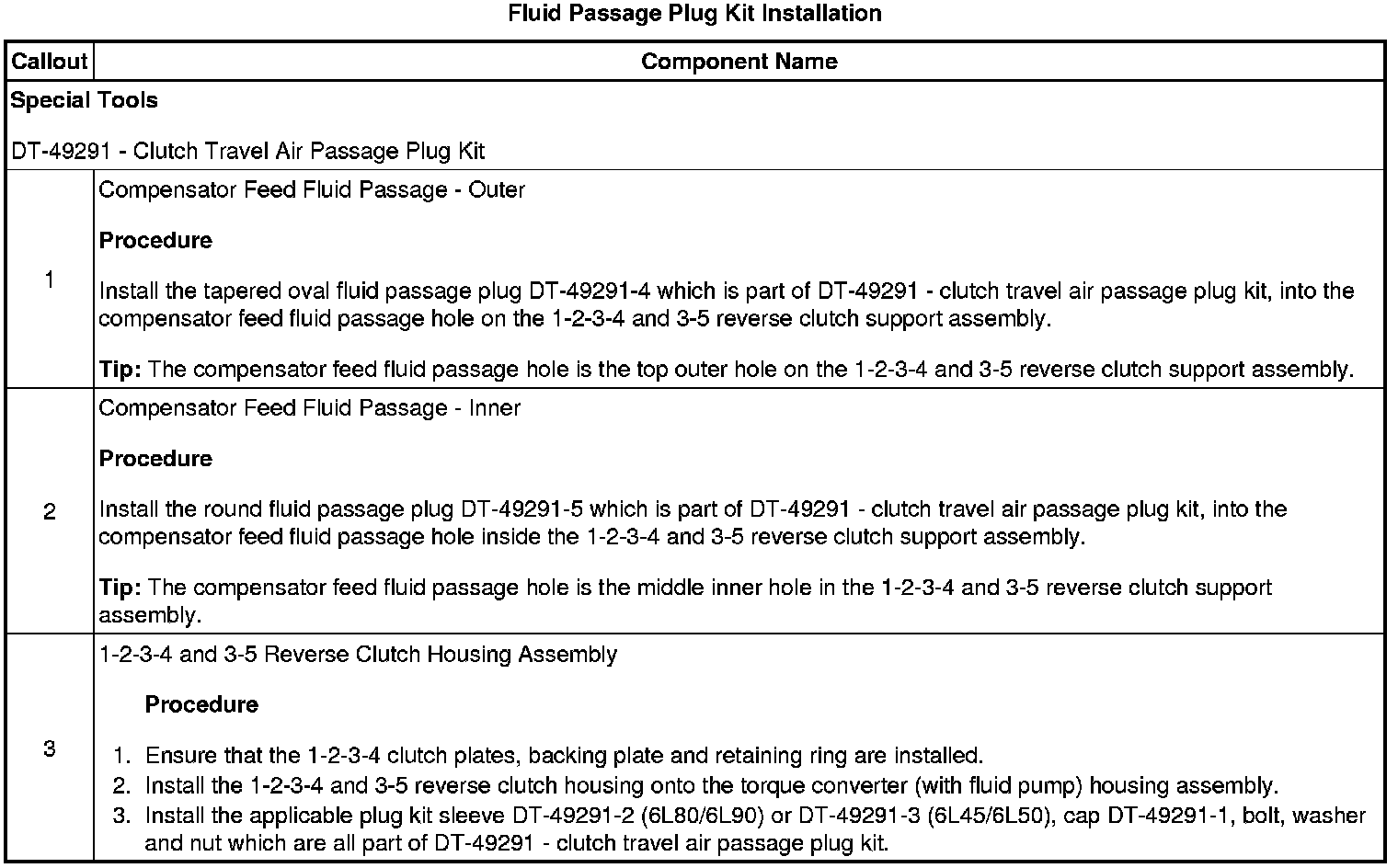

Fluid Passage Plug Kit Installation

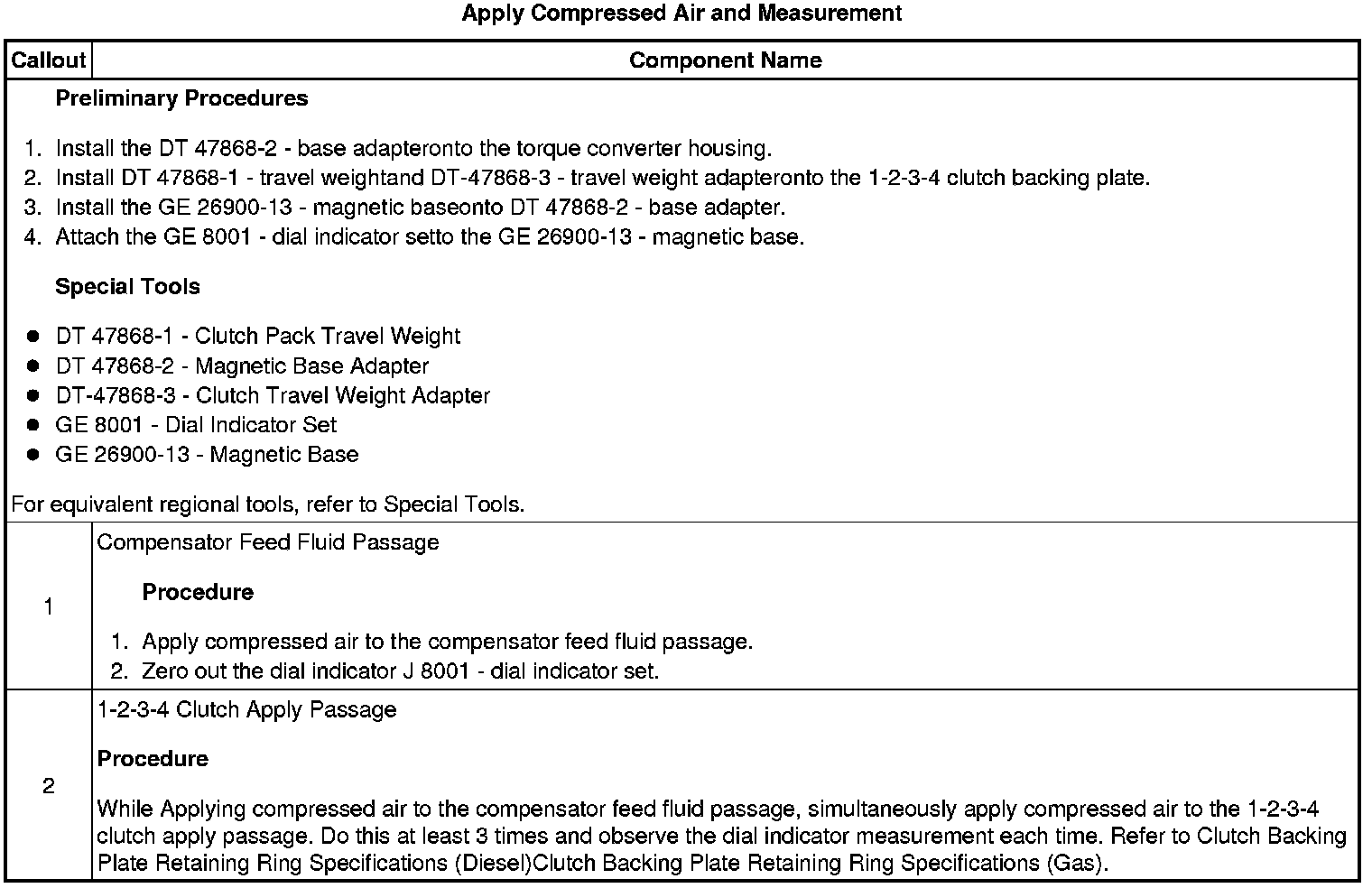

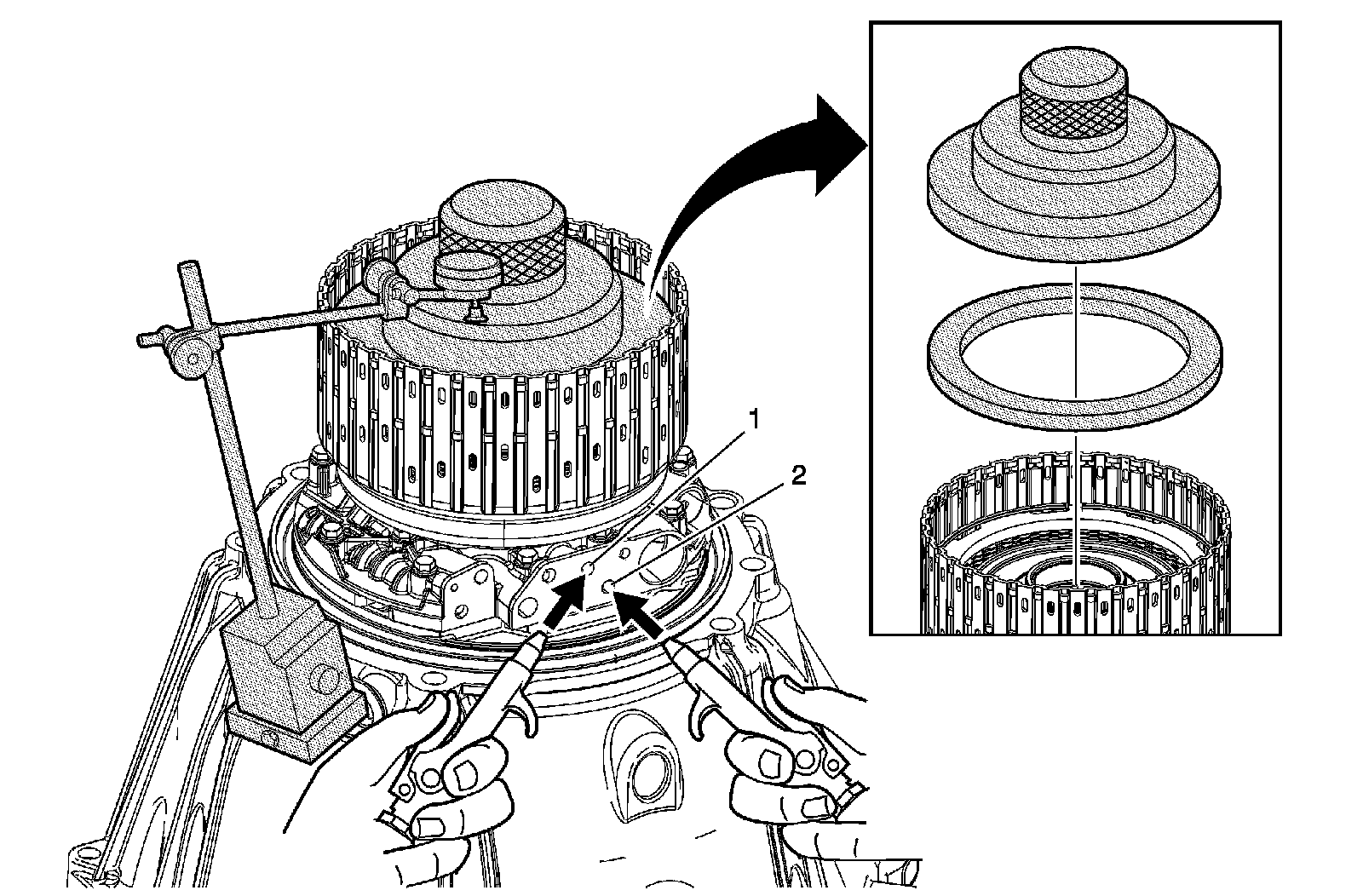

Apply Compressed Air and Measurement
