75. 3-4 Accumulator Installation

3-4 Accumulator Installation

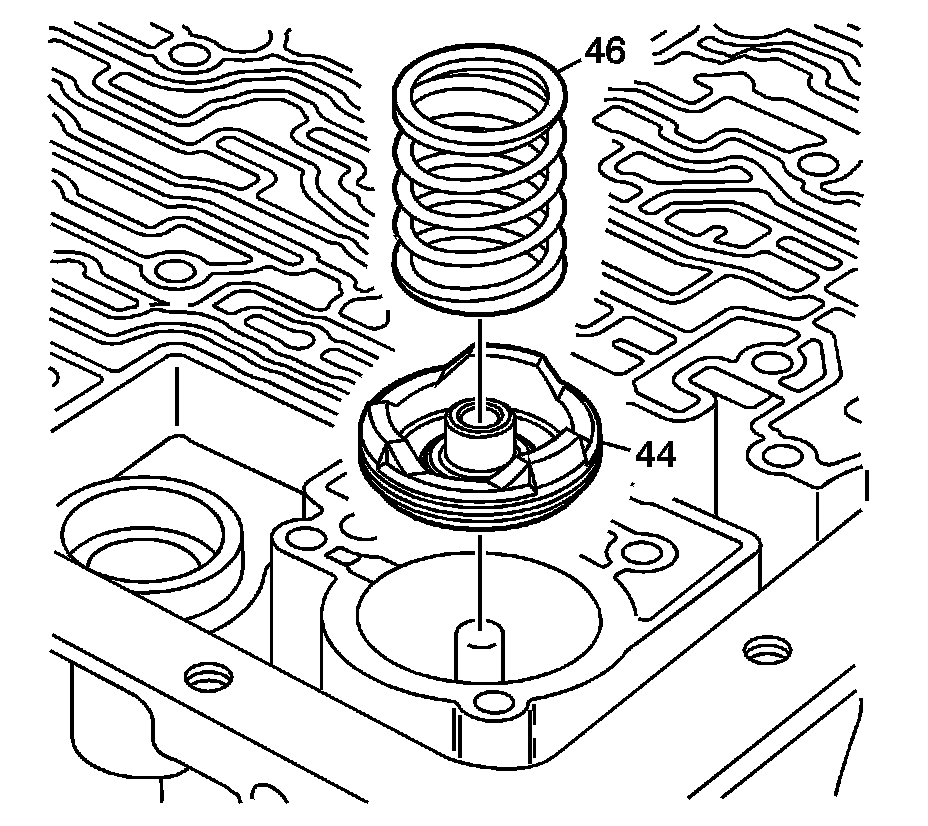

1. Inspect the 3-4 accumulator piston (44) for the following conditions:

* Porosity

* Cracks

* Scoring

* Nicks and scratches

2. Install the 3-4 accumulator piston oil seal ring (45) on the 3-4 accumulator piston (44).





3. Install the 3-4 accumulator piston (44) and seal assembly into the bore.

4. Inspect the 3-4 accumulator spring (46) for cracks.

Note:
Some models do not use a 3-4 accumulator spring.

5. Install the 3-4 accumulator spring.
