63. Oil Pump Body Bushing Replacement

Oil Pump Body Bushing Replacement

Special Tools

* J 41778-1 - Pump Body Bushing Installer/Remover

* J 41778-2 - Pump Body Bushing Position Stop

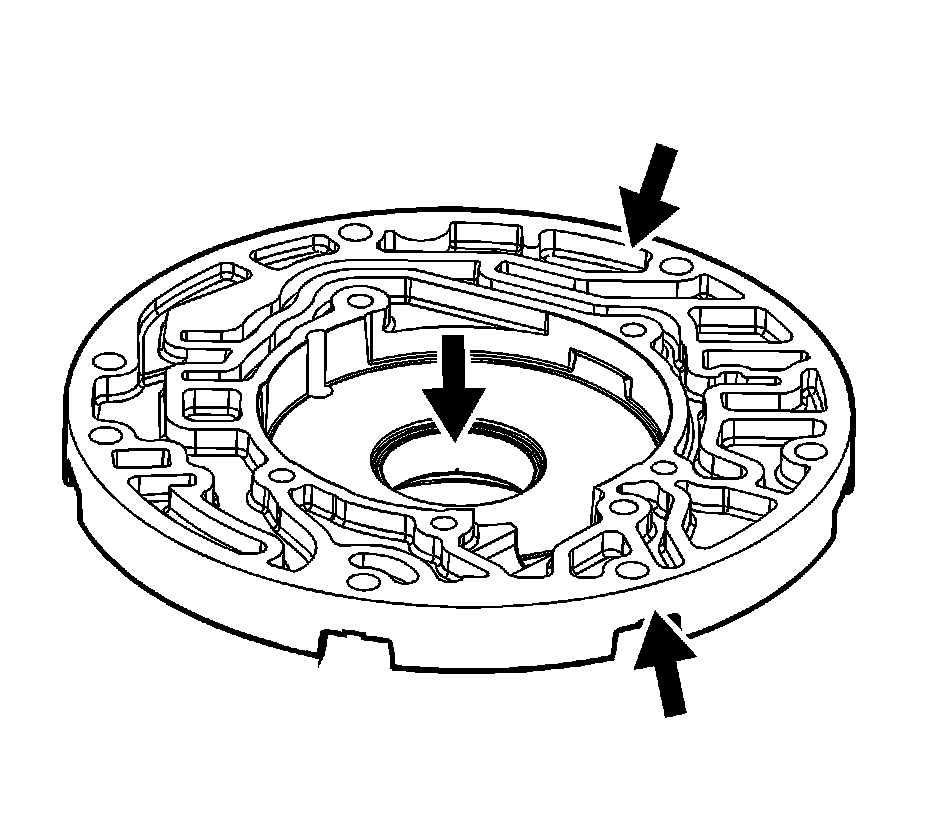

1. Inspect the oil pump body for the following:

* Worn or damaged bushings

* Foreign material or debris

* Porosity

* Scored or irregular mating faces

* Cross channel leaks

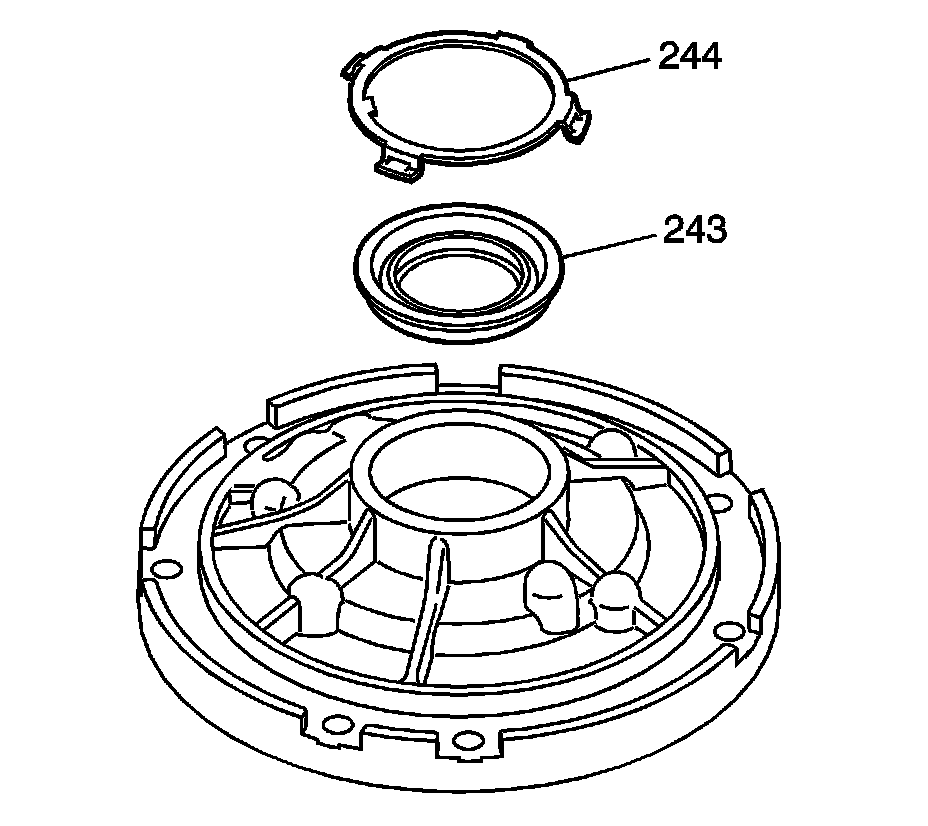

2. Remove the front fluid seal retainer (244).

3. Remove the oil seal assembly (243).

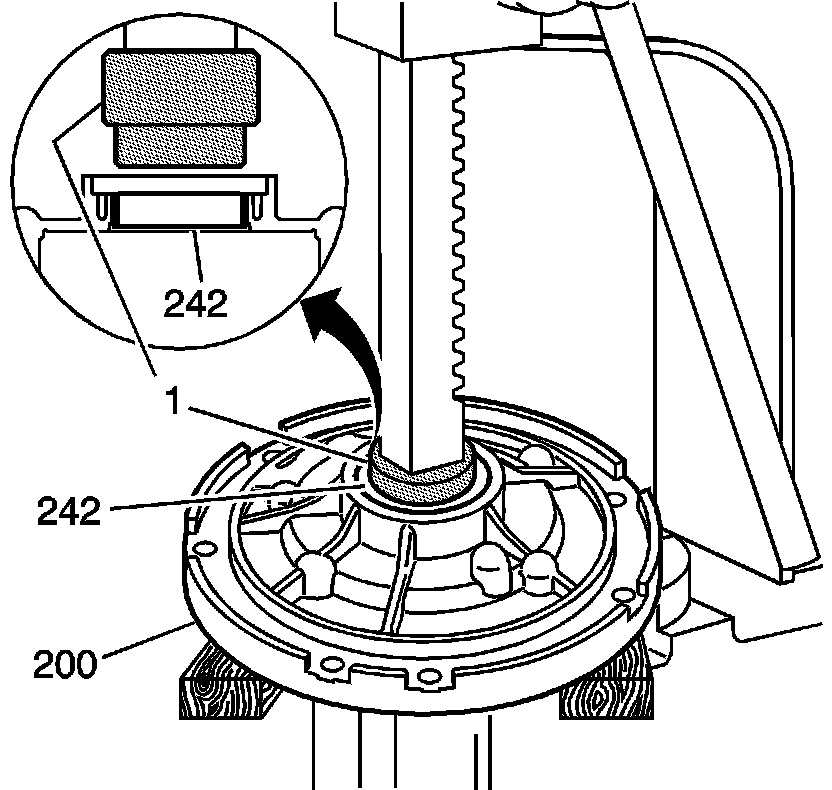

4. Using the J 41778-1 - bushing installer/remover (1) with an arbor press, remove the pump body bushing (242).

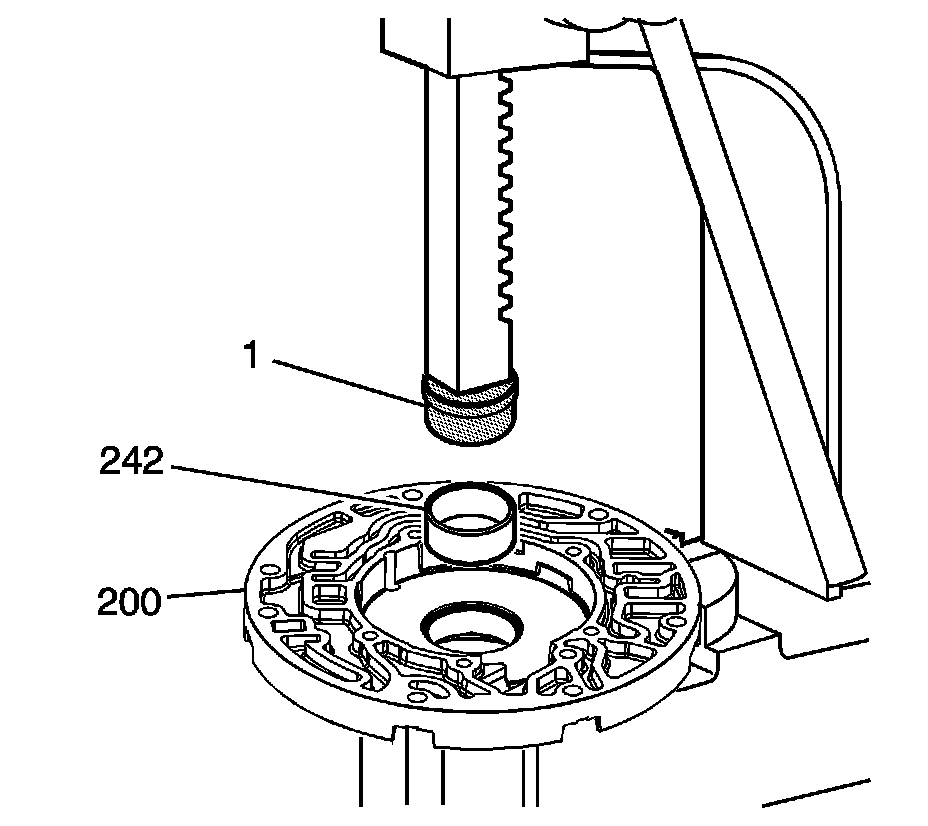

5. Using J 41778-1 - bushing installer/remover (1) with an arbor press, install a new pump body bushing (242).

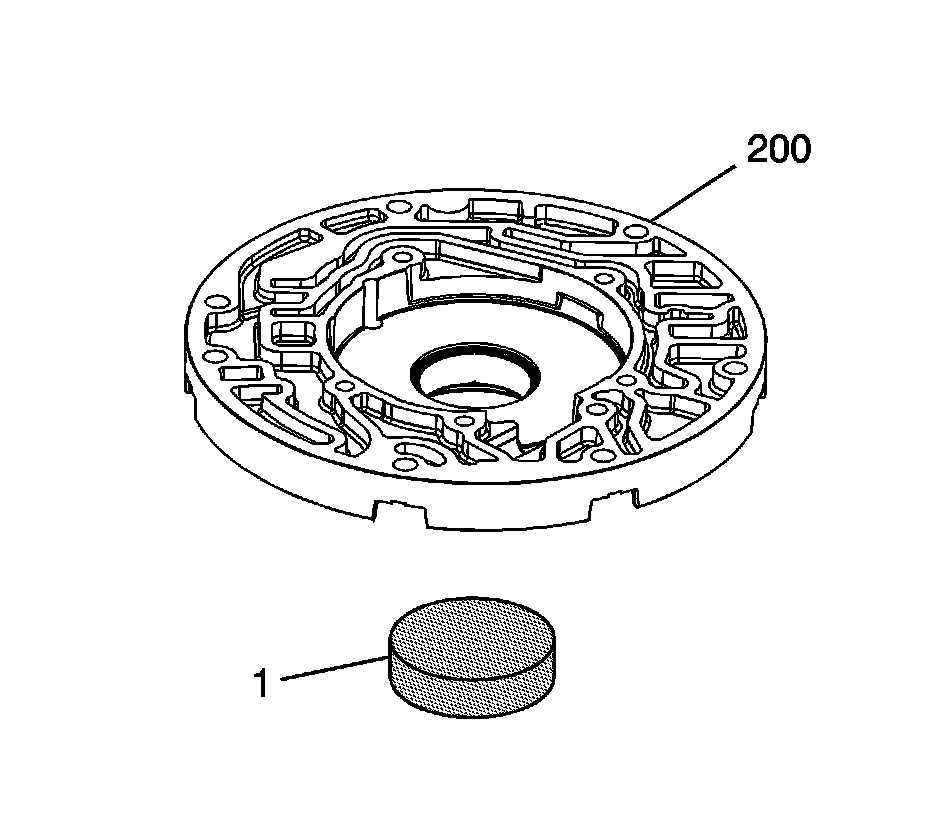

6. Use the J 41778-2 - bushing position stop (1) to ensure proper bushing depth.
