58. 2-4 Band Installation

2-4 Band Installation





1. Inspect the 2-4 band assembly (602) for damage or wear.

2. Install the 2-4 band (602) into the case.

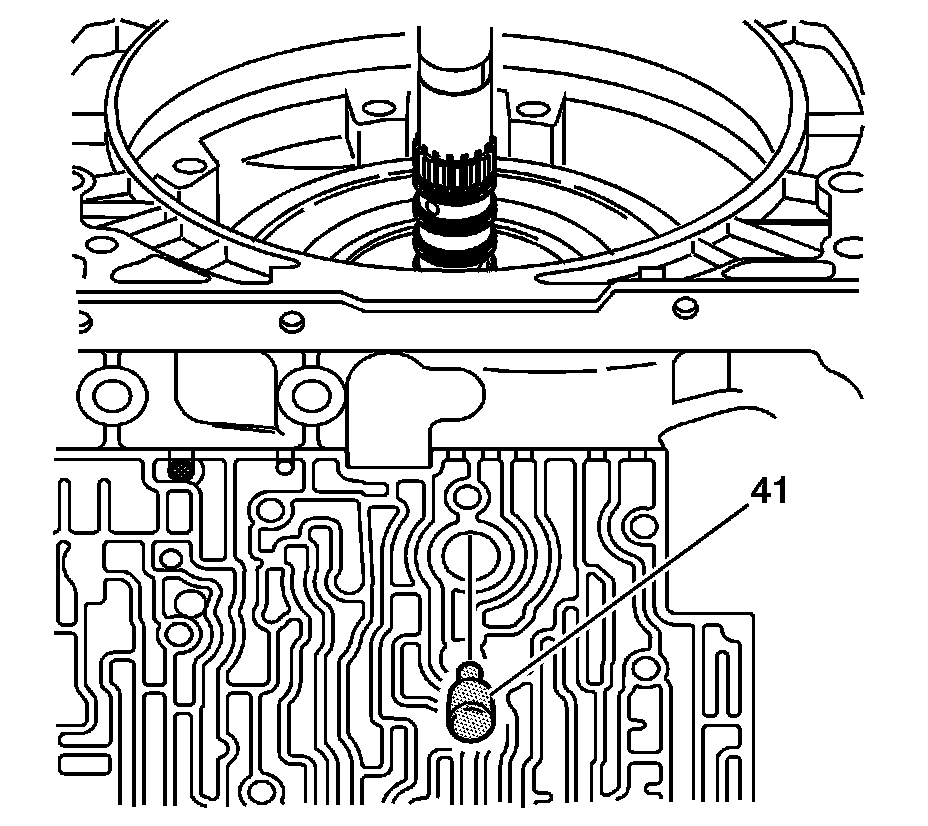

3. Install the band anchor pin (41) into the case.

4. Index the band to fit the band anchor pin into the band.
