4. Converter Housing Removal

Converter Housing Removal

Special Tools

* DT-49037 - MorTorq Bit

* J 41510 - T-50 Plus Bit

For equivalent regional tools, refer to Special Tools 4L60-E/4L65-E/4L70-E - Automatic Transmission.

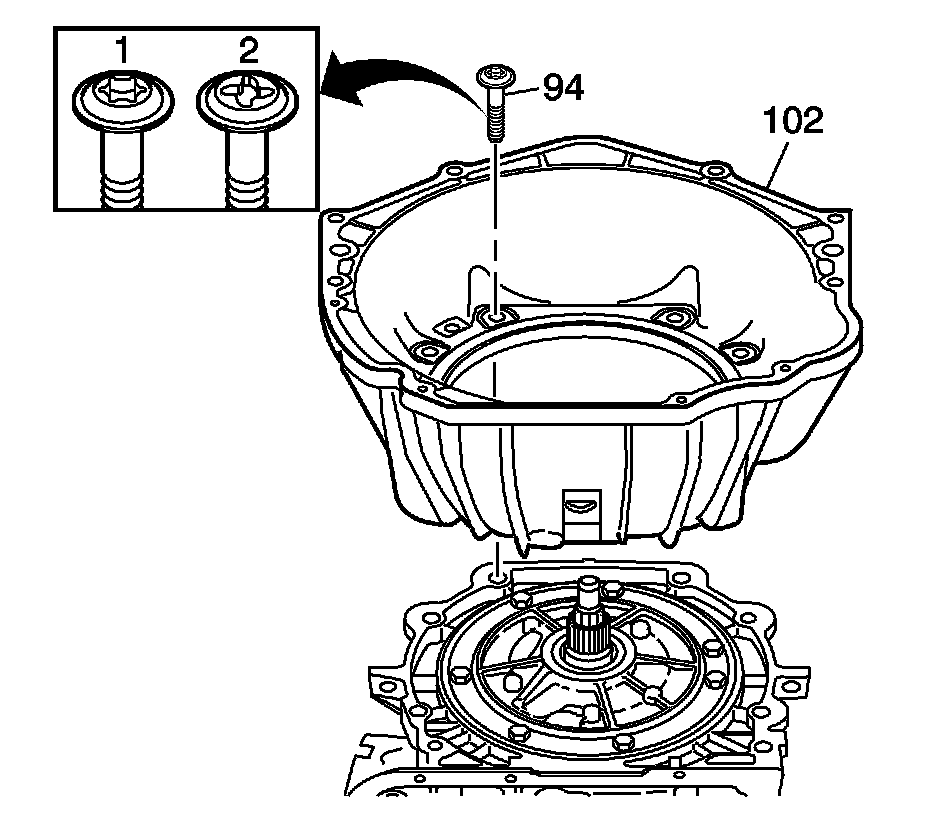

1. Remove the converter housing bolts (94). Use the J 41510 - T-50 plus bitfor bolt (1) and DT-49037 - mortorq bitfor bolt (2).

2. Remove the converter housing (102).
