36. Output Shaft Installation

Output Shaft Installation

Special Tools

J 29837-A - Output Shaft Support Fixture





Note:
It is important to note that the input shaft may need a light tap to fully seat into position. If the input shaft is not completely engaged, the output shaft to input carrier retainer (661) will not seat.

1. Install the output shaft (687).

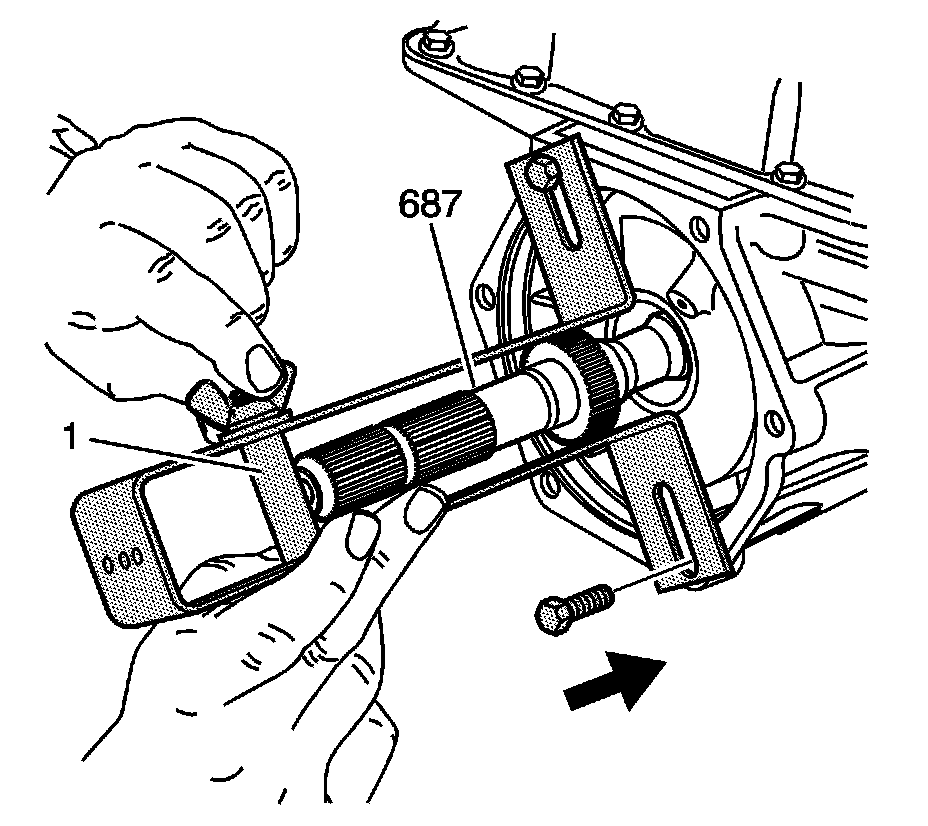

2. Install the J 29837-A - support fixtureas shown. Support the output shaft (687) with adjustable stop (1).
