12. Oil Pump Removal

Oil Pump Removal

Special Tools

J 45053 - Universal Clamp Press

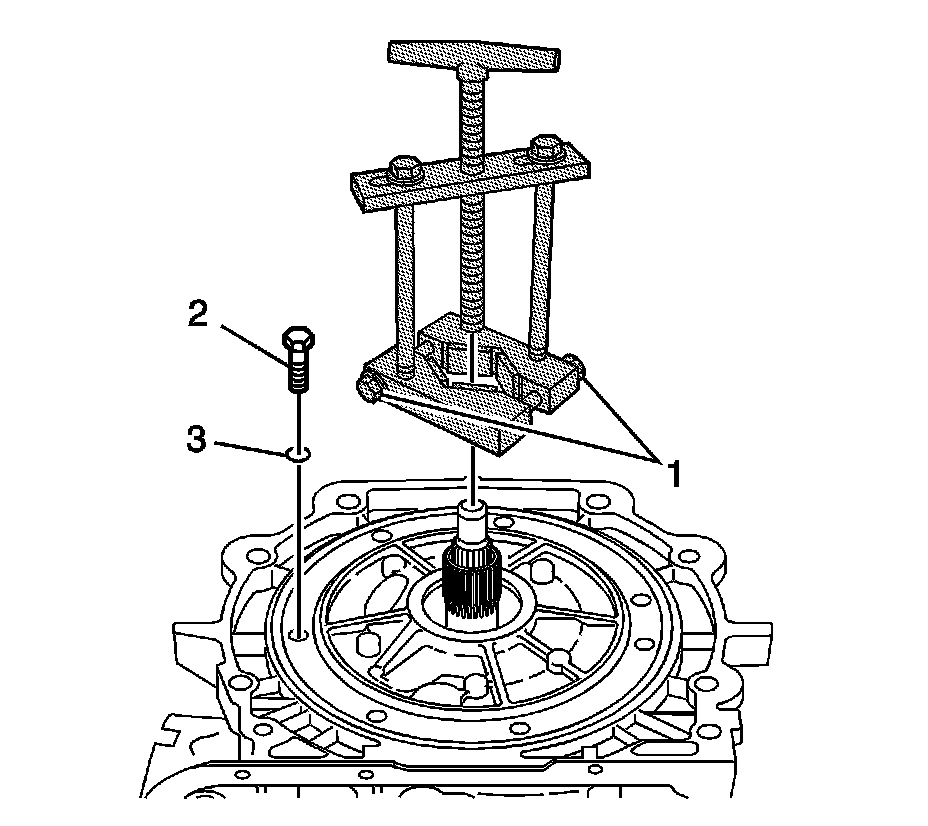

1. Remove all pump bolts (2) and pump bolt seal (3).

2. Install J 45053 - clamp pressover stator shaft. Tighten the clamp bolts (1).

3. To prevent slipping, securely fasten the J 45053 - clamp pressaround the stator shaft by tightening the bolts (1) with a wrench.

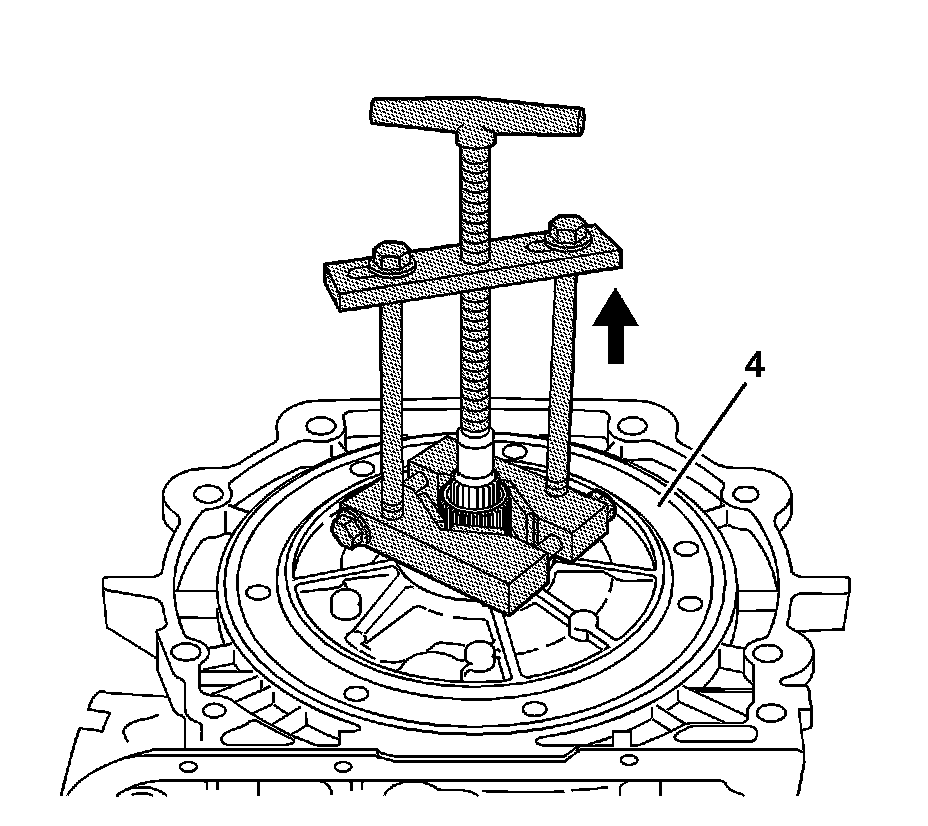

4. Turn the T-handle of the J 45053 - clamp pressto pull the pump assembly (4) from the case.

5. Lift the pump (4) out of the case.





6. Remove the fluid pump seal (5).

7. Remove the pump cover to case gasket (6).
