Fuel Pump Control Unit: Locations

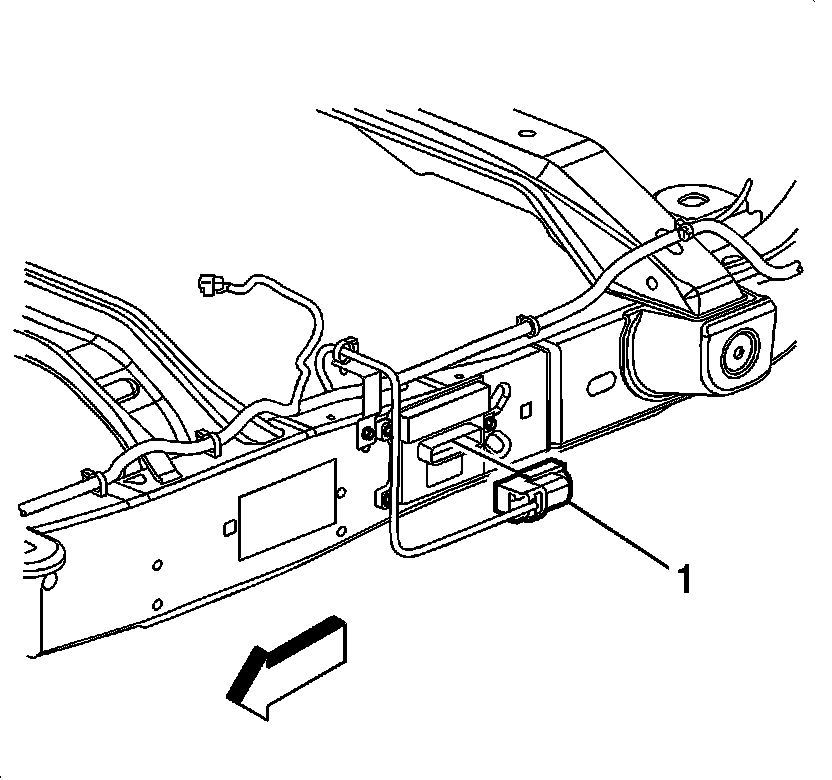

Wheels/Vehicle Underbody Component Views
Left Rear Frame Rail (LMF)
1
- Fuel Pump Flow Control Module
