Fuel Pump Control Unit: Diagrams




Component Connector End Views

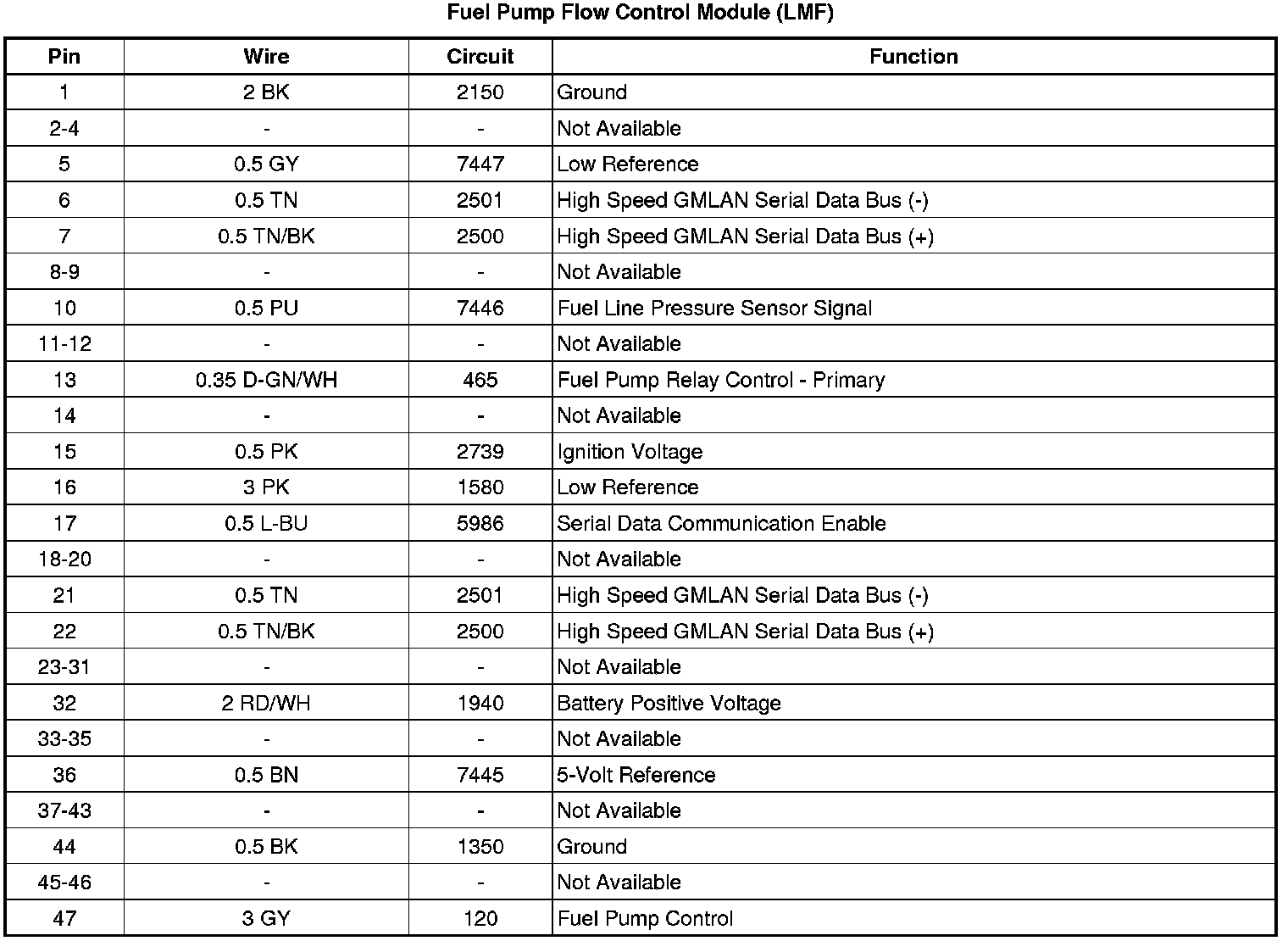

Fuel Pump Flow Control Module (LMF)
