X902




Inline Harness Connector End Views

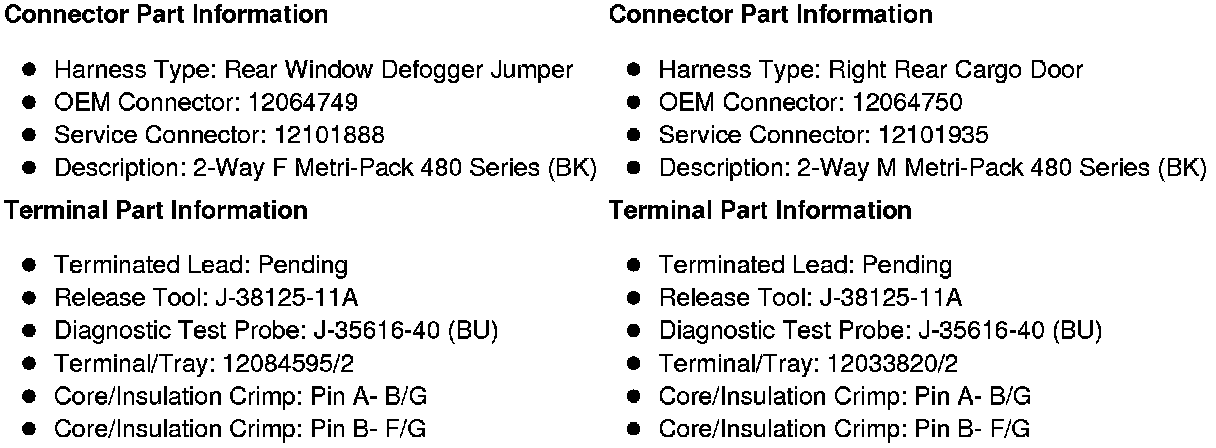

X902 Rear Window Defogger Jumper Harness to Right Rear Cargo Door Harness (C49 with A12)
