X411




Inline Harness Connector End Views

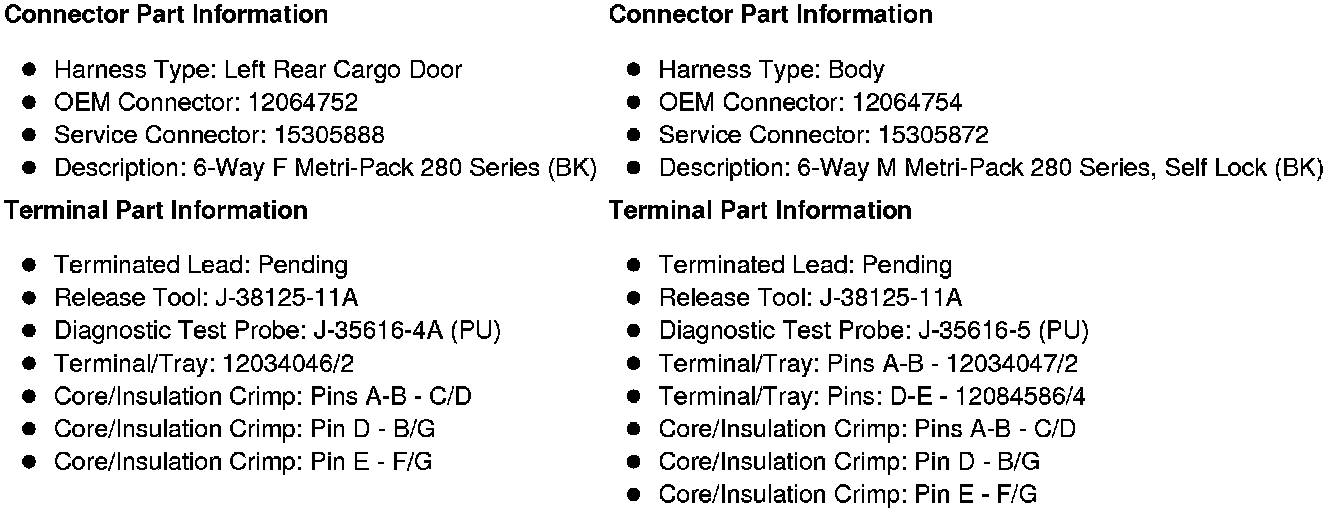

X411 Left Rear Cargo Door Harness to Body Harness (Passenger or Cargo)
