X318

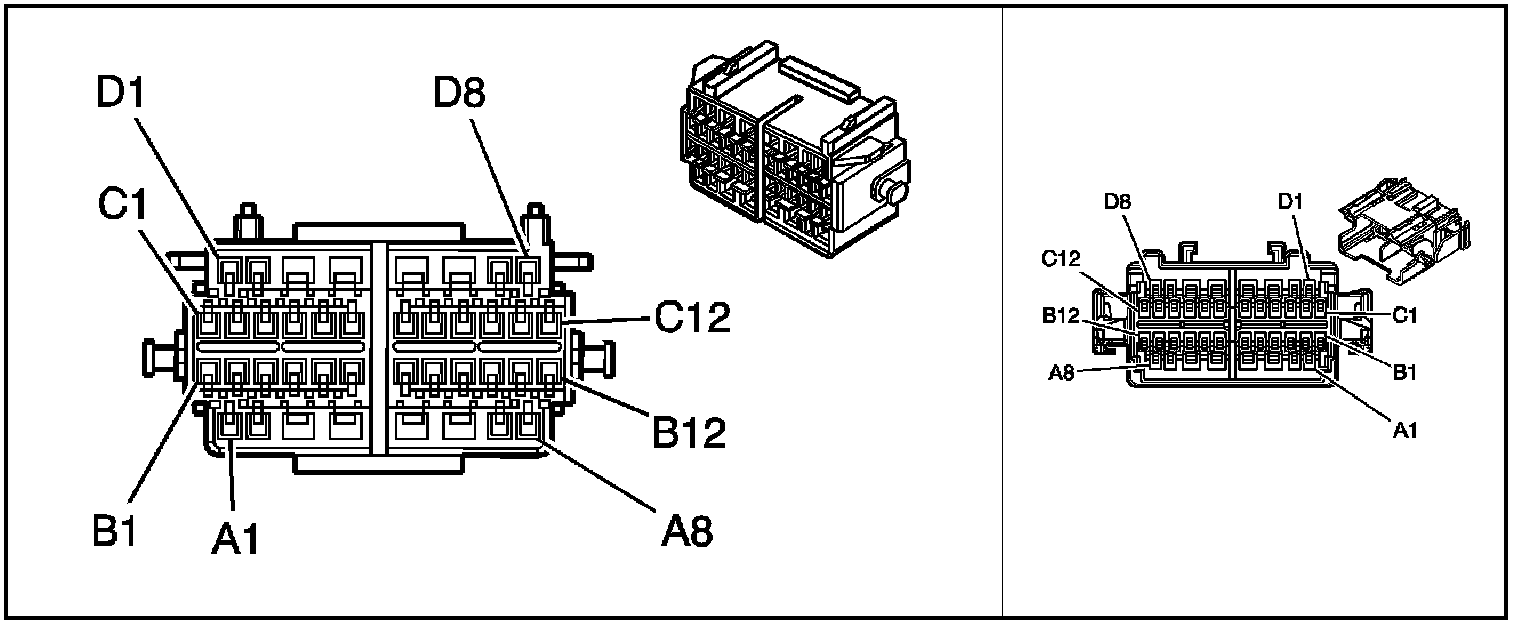

Inline Harness Connector End Views

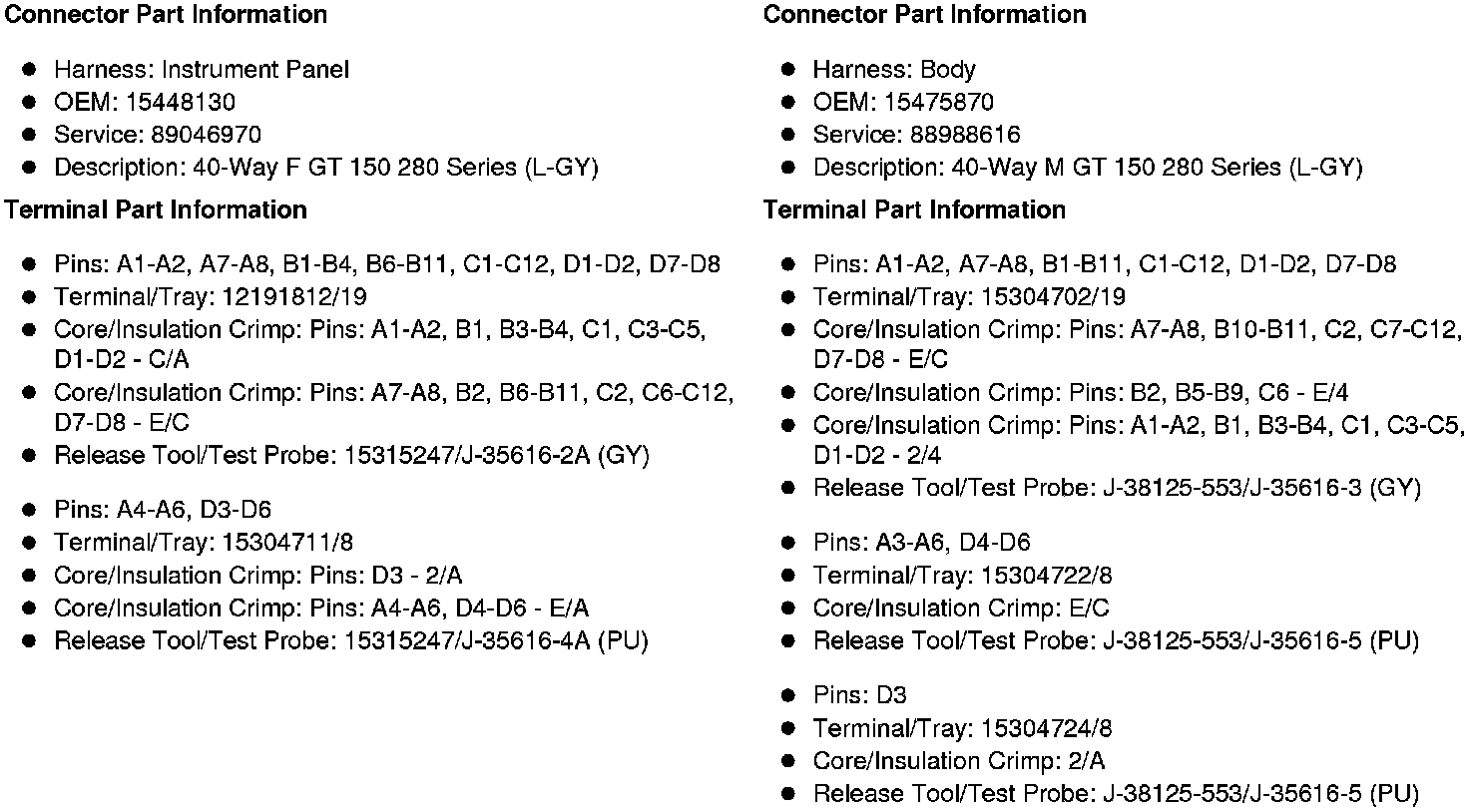

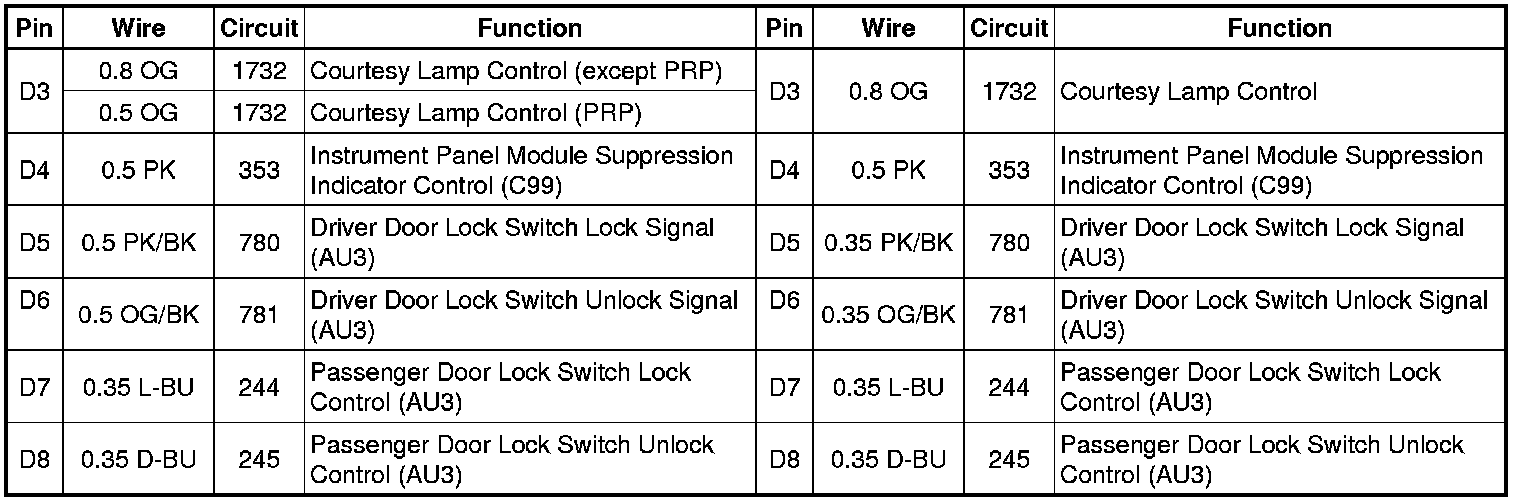

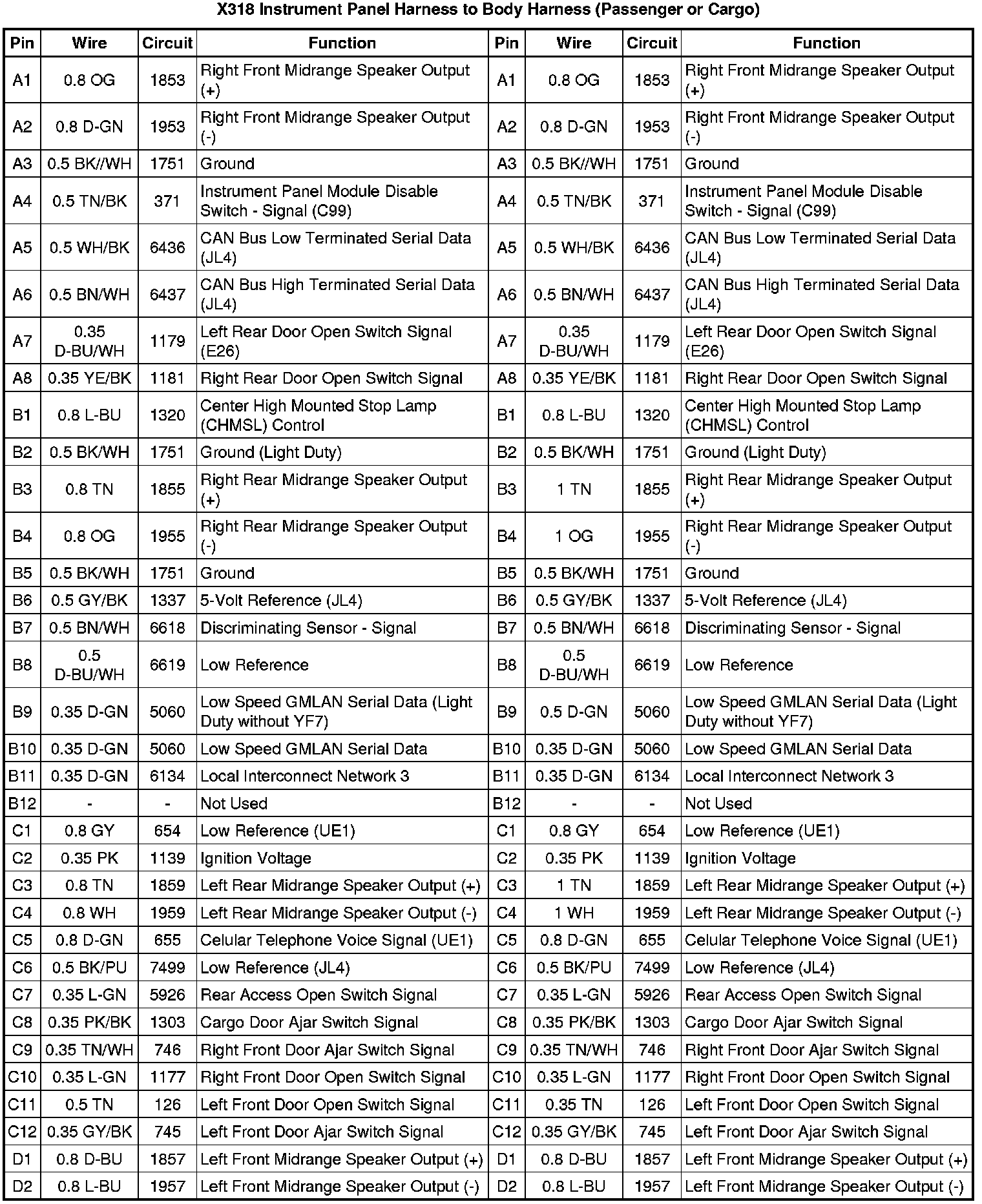

X318 Instrument Panel Harness to Body Harness (Passenger or Cargo)
