X200
X200
Inline Harness Connector End Views

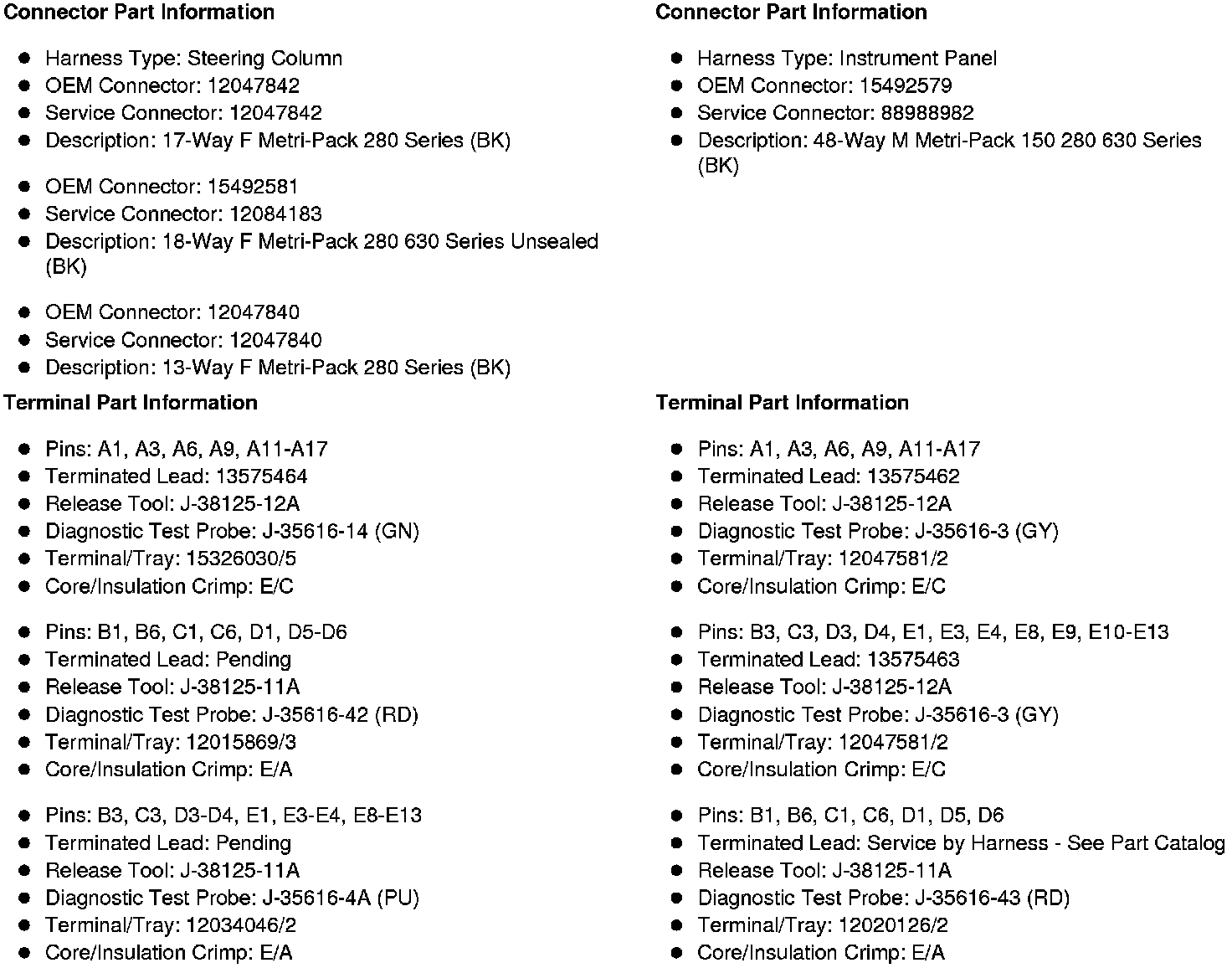

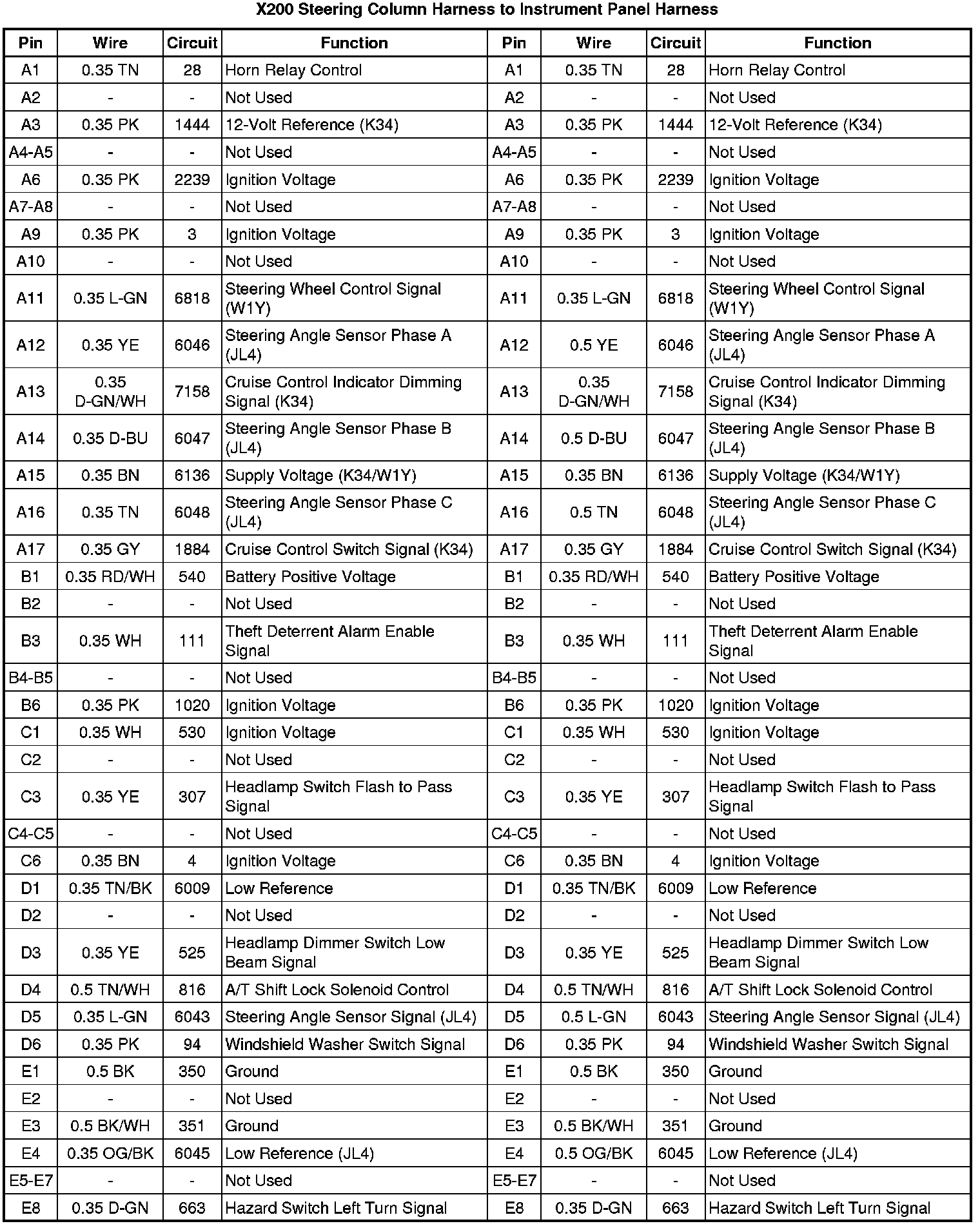

X200 Steering Column Harness to Instrument Panel Harness
